Telecentric lenses
0.5x, WD 108.4 mm, C-mount Telecentric Lens (LS-TCL-0850)
Model LS-TCL-0850
- Magnification0.5x
- MountC-mount
- Sensor1.1"
- Working distance108.4 ±8 mm
- ApertureF5.6-22
$1,889.00
Ships in 2-3 weeks
0.73 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.5x, WD 108.4 mm, C-mount Telecentric Lens. A motorized auto-focus bi-telecentric lens with 0.5x magnification, 18 mm image size, 108 mm working distance, <0.1% TV distortion, 0.03 deg telecentricity and 22 mm depth of field, for positioning, defect inspection and measurement of objects at different heights. At a glance: magnification 0.5x; working distance 108.4 ±8 mm; aperture F5.6-22; mount C (1"-32UNF); tv distortion <0.1%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0850 |
|---|---|
| N.A. | 0.045 |
| T.T.L. | 196.2 mm |
| Motor speed | 0-400 RPM |
| Motor rated speed | 200 RPM |
| Motor response | <1 ms |
| Motor max torque | 0.007 N.m |
| Motor lock torque | 0.025 N.m |
| Motor accuracy | ±0.02 deg |
| Motor rotation | CW, CCW |
Optics
| Magnification | 0.5x |
|---|---|
| Working distance | 108.4 ±8 mm |
| Aperture | F5.6-22 |
| Image size | dia. 18 mm |
| TV distortion | <0.1% |
| Telecentricity | 0.03° |
| Relative illumination | >90% |
| Depth of field | 22 mm |
Interfaces and I/O
| Communication | RS232 / TTL (5-pin connector; DB9 + DC 5.5 x 2.1 cable) |
|---|
Environment and compliance
| Motor operating temp./humidity | -40~105 °C, RH 0-90% |
|---|
Electrical
| Motor voltage | 12 V |
|---|---|
| Motor power | 1.68 W |

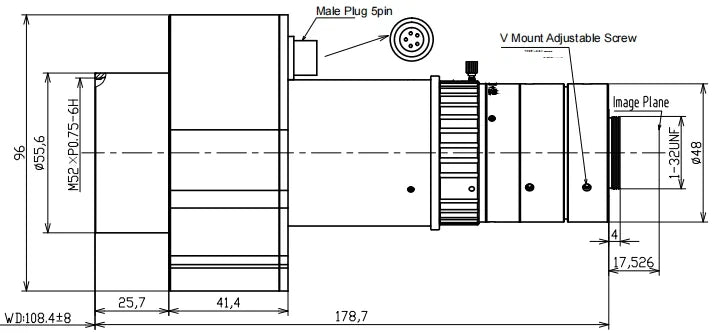

Mechanical
| Object size | dia. 36 mm |
|---|---|
| Mount | C (1"-32UNF) |
| Front thread | M52 x P0.75 |
| Shipping weight (estimated) | 0.73 kg |
