Telecentric lenses

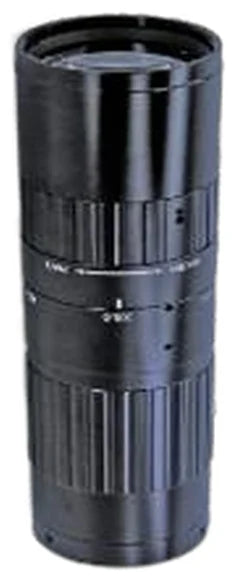

0.5x, WD 65 mm, 2/3", C-mount Telecentric Lens, 0.5x-2x (LS-TCL-0858)
Model LS-TCL-0858
- Magnification0.5x-2x
- MountC-mount
- Sensor2/3"
- Working distance65 mm
- Resolution8 um (object side)
$1,309.00
Ships in 2-3 weeks
0.73 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.5x, WD 65 mm, 2/3", C-mount Telecentric Lens. A variable-magnification bi-telecentric lens for 2/3" sensors with 0.5x-2x magnification at a fixed 65 mm working distance, <0.05% TV distortion and 0.05 deg telecentricity, for positioning, defect inspection and measurement. At a glance: magnification 0.5x-2x; working distance 65 mm; format 2/3"; resolution 8 um (object side); mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0858 |
|---|---|
| Format | 2/3" |
| N.A. | 0.04 |
| Spot light hole | dia. 8 mm |
| Notes | Can support motorized |
Optics
| Magnification | 0.5x-2x |
|---|---|
| Working distance | 65 mm |
| TV distortion | <0.05% |
| Telecentricity | 0.05° |
Sensor and imaging
| Resolution | 8 um (object side) |
|---|
Mechanical

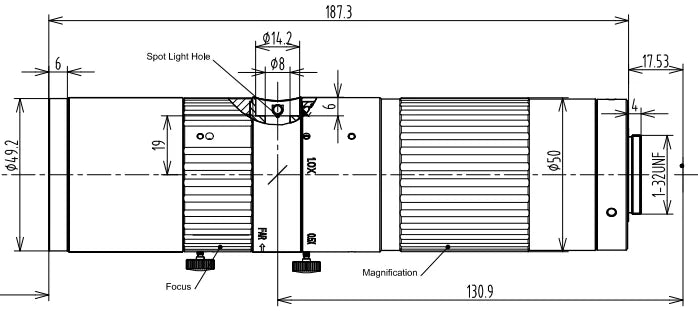

| Size | dia. 49.2 x 187.3 mm |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.73 kg |
