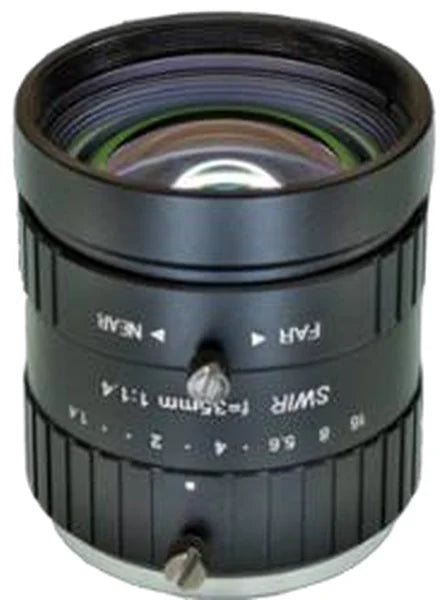

35 mm, 2/3", 5 MP, C-mount SWIR Lens (LS-SWL-0208)
Model LS-SWL-0208
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4-16 Manual Iris
- Resolution5 Megapixel
$719.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 2/3", 5 MP, C-mount SWIR Lens. A short-wave infrared (SWIR) 35 mm, 2/3", 5 megapixel C-mount lens coated for 900-1700 nm, for electronic inspection, semiconductors, biometric imaging, colour sorting, food and pharmaceutical inspection, and imaging through fog. At a glance: focal length 35 mm; format 2/3"; resolution 5 Megapixel; aperture F1.4-16 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0208 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", HxV) | 15 x 11 deg |
| Angle of view (1/1.8", HxV) | 12 x 9 deg |
| Angle of view (1/2", HxV) | 11 x 8 deg |
| Construction | 8G |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F1.4-16 Manual Iris |
| M.O.D. | 0.25 m |
| Filter thread | M40.5 x 0.5 |
| Distortion | <-0.05% |
| MTF (resolving power) | 100 lp/mm |
Sensor and imaging
| Resolution | 5 Megapixel |
|---|
Light
| Wavelength | 900~1700 nm |
|---|
Electrical
| Resolving power | 100 lp/mm |
|---|
Mechanical
| Size | dia. 44 x 48.5 mm |
|---|---|
| Mount | C |
| Weight | 178 g |
| Shipping weight (estimated) | 0.35 kg |
