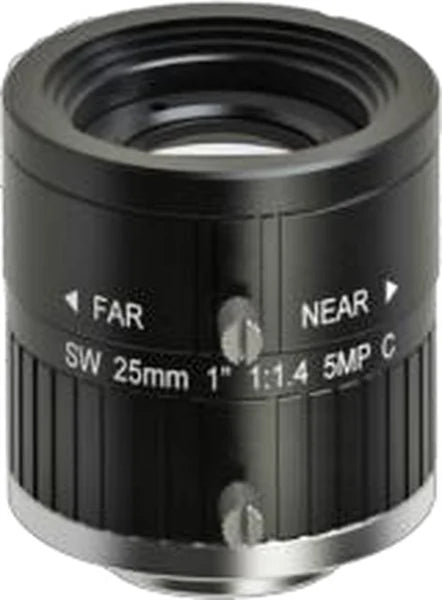

25 mm, 1", 5 MP, C-mount SWIR Lens (LS-SWL-0195)
Model LS-SWL-0195
- Focal length25 mm
- MountC-mount
- Sensor1"
- ApertureF1.4 Manual Iris
- Resolution5 Megapixel
$669.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm, 1", 5 MP, C-mount SWIR Lens. A short-wave infrared (SWIR) 25 mm, 1", 5 megapixel C-mount lens coated for 900-1700 nm, for electronic inspection, semiconductors, biometric imaging, colour sorting, food and pharmaceutical inspection, and imaging through fog. At a glance: focal length 25 mm; format 1"; resolution 5 Megapixel; aperture F1.4 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0195 |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 28.6 x 21.5 x 15.4 deg |
| B.F.L. | 11.46 mm |
| M.F.L. | 8.97 mm |
| T.T.L. | 53.7 mm |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.6~0.8 m |
| Distortion | -1.39% |
| Back focal length | 11.46 mm |
Sensor and imaging
| Resolution | 5 Megapixel |
|---|
Light
| Wavelength | 900~1700 nm |
|---|

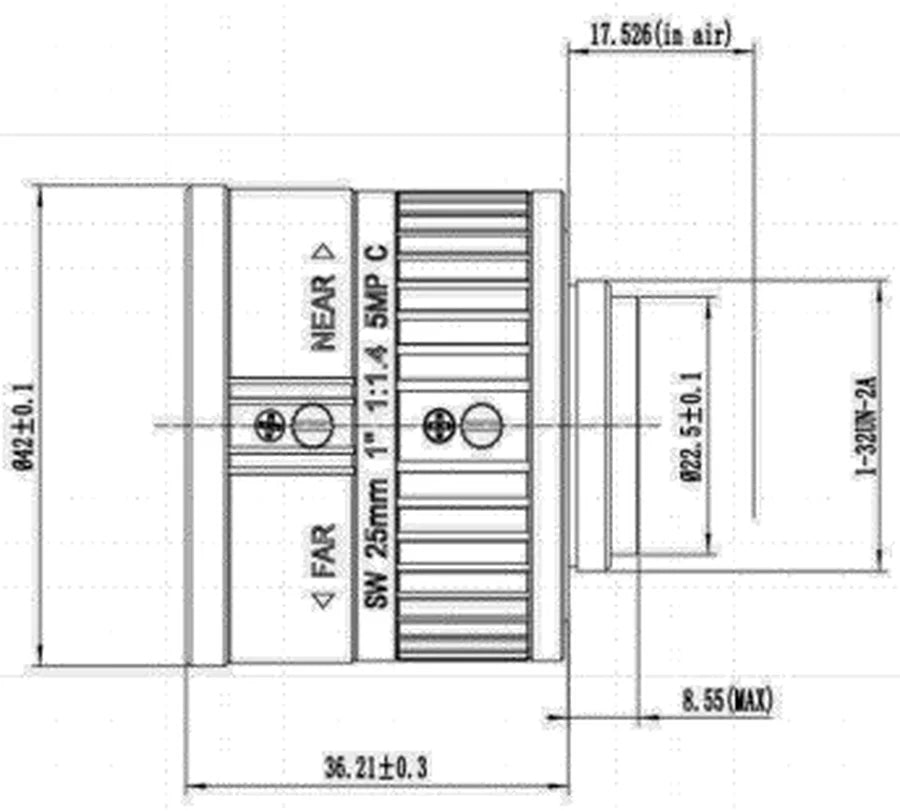

Mechanical
| Size | dia. 42 x 36.21 mm |
|---|---|
| Mount | C |
| Weight | 180 g |
| Shipping weight (estimated) | 0.35 kg |
Other models in the SWIR lenses (LS-SWL-S02) series
See all 16 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SWL-0201 | 4-20 mm, 1/2.7", C-mount | $539.00 | Ships in 2-3 weeks | View |
| LS-SWL-0202 | 8 mm, 2/3", 5 MP, C-mount | $569.00 | Ships in 2-3 weeks | View |
| LS-SWL-0203 | 8 mm, 2/3", 5 MP, C-mount | $569.00 | Ships in 2-3 weeks | View |
| LS-SWL-0204 | 12 mm, 2/3", 5 MP, C-mount | $589.00 | Ships in 2-3 weeks | View |
| LS-SWL-0205 | 12 mm, 2/3", 5 MP, C-mount | $589.00 | Ships in 2-3 weeks | View |
| LS-SWL-0198 | 25 mm, 1.1", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-SWL-0206 | 25 mm, 5 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-SWL-0207 | 25 mm, 2/3", 5 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-SWL-0210 | 25 mm, 1/2", 1.3 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-SWL-0196 | 35 mm, 1", 5 MP, C-mount | $719.00 | Ships in 2-3 weeks | View |
| LS-SWL-0208 | 35 mm, 2/3", 5 MP, C-mount | $719.00 | Ships in 2-3 weeks | View |
| LS-SWL-0209 | 50 mm, 2/3", 5 MP, C-mount | $809.00 | Ships in 2-3 weeks | View |
| LS-SWL-0197 | 100 mm, 1", 5 MP, C-mount | $1,099.00 | Ships in 2-3 weeks | View |
| LS-SWL-0199 | 105 mm, 1/1.8", 5 MP, C-mount | $1,129.00 | Ships in 2-3 weeks | View |
| LS-SWL-0200 | 105 mm, 1/1.8" | $1,129.00 Quote | Ships in 2-3 weeks | View |
