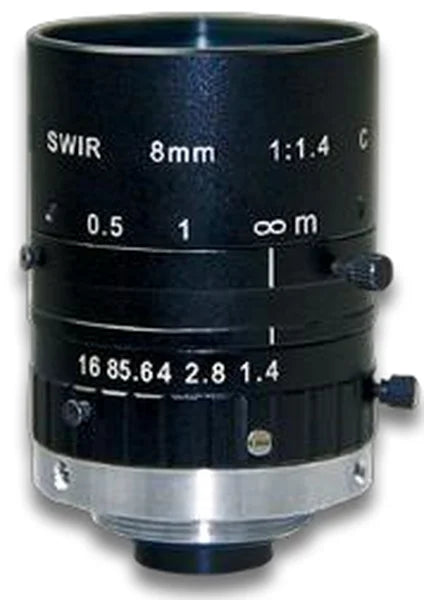

8 mm, 2/3", 5 MP, C-mount SWIR Lens, 60 lp/mm (LS-SWL-0203)
Model LS-SWL-0203
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 Manual iris
- Resolution60 lp/mm
$569.00
Ships in 2-3 weeks
0.32 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm, 2/3", 5 MP, C-mount SWIR Lens. 8 mm F1.4 SWIR lens for 2/3" sensors, 900-1700 nm, C-mount. At a glance: focal length 8 mm; format 2/3"; resolution 60 lp/mm; aperture F1.4 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0203 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3") | 61 x 52 x 43 deg |
| Angle of view (1/2") | 53.1 x 44 x 33.5 deg |
| Angle of view (1/3") | 41 x 33.4 x 21.4 deg |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture | F1.4 Manual iris |
| M.O.D. | 0.2 m |
| Distortion | <-1.2% |
| Filter thread | M35.5 x 0.5 |
| Back focus | 9.91 mm |
Sensor and imaging
| Resolution | 60 lp/mm |
|---|
Light
| Wavelength | 900~1700nm |
|---|
Environment and compliance
| Operating temperature | -10°~+50° |
|---|

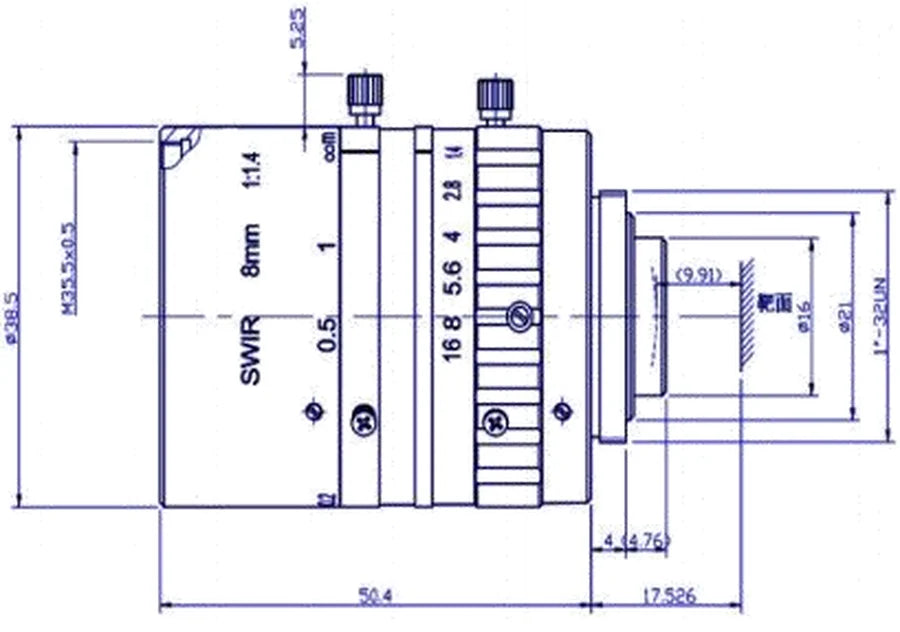

Mechanical
| Size | dia. 38.5 x 50.4 mm |
|---|---|
| Mount | C |
| Weight | 156 g |
| Shipping weight (estimated) | 0.32 kg |
