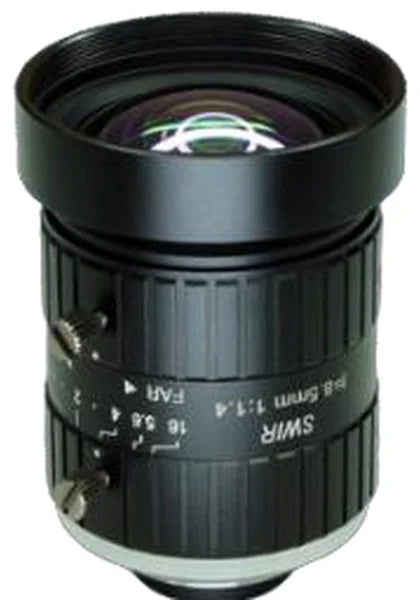

8 mm, 2/3", 5 MP, C-mount SWIR Lens, 5 Megapixel (LS-SWL-0202)
Model LS-SWL-0202
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 Manual Iris
- Resolution5 Megapixel
$569.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm, 2/3", 5 MP, C-mount SWIR Lens. A short-wave infrared (SWIR) 8 mm, 2/3", 5 megapixel C-mount lens coated for 900-1700 nm, for electronic inspection, semiconductors, biometric imaging, colour sorting, food and pharmaceutical inspection, and imaging through fog. At a glance: focal length 8 mm; format 2/3"; resolution 5 Megapixel; aperture F1.4 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0202 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", HxV) | 55 x 43 deg |
| Angle of view (1/1.8", HxV) | 46 x 35.2 deg |
| Angle of view (1/2", HxV) | 41 x 31.5 deg |
| Construction | 11G |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.2 m |
| Filter thread | M40.5 x 0.5 |
| Distortion | <-1.1% |
| MTF (resolving power) | 100 lp/mm |
Sensor and imaging
| Resolution | 5 Megapixel |
|---|
Light
| Wavelength | 900~1700 nm |
|---|
Electrical
| Resolving power | 100 lp/mm |
|---|
Mechanical

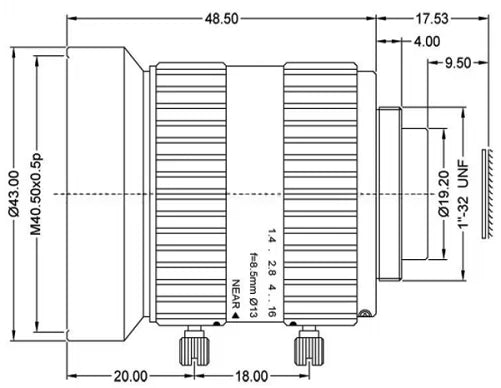

| Size | dia. 43 x 48.5 mm |
|---|---|
| Mount | C |
| Weight | 148 g |
| Shipping weight (estimated) | 0.31 kg |
