25 mm, 5 MP, C-mount SWIR Lens (LS-SWL-0206)
  • 25 mm, 5 MP, C-mount SWIR Lens (LS-SWL-0206)

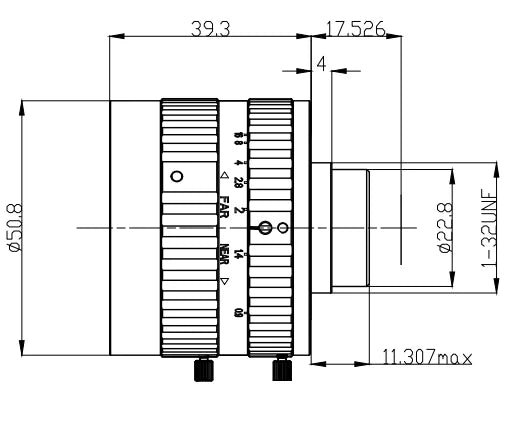

  • LS-SWL-0206 dimensions (mm)

Thermal, SWIR & UV lenses

25 mm, 5 MP, C-mount SWIR Lens (LS-SWL-0206)

Model LS-SWL-0206

  • Focal length25 mm
  • Magnification0.141X, 0.09X, 0.05X
  • MountC-mount
  • Sensor1/1.2"
  • Working distance200 mm, 300 mm, 500 mm
  • ApertureF0.9 Manual Iris
$669.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm, 5 MP, C-mount SWIR Lens (LS-SWL-0206)LS-SWL-0206

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm, 5 MP, C-mount SWIR Lens. A fast F0.9, 25 mm SWIR lens (800-1700 nm) for a 12.6 mm image circle, 5 megapixel, <0.1% distortion and 0.005x-0.141x magnification, for automation and inspection. At a glance: magnification 0.141X, 0.09X, 0.05X; working distance 200 mm, 300 mm, 500 mm; focal length 25 mm; format dia. 12.6 mm; resolution 5 Megapixel.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0206
Formatdia. 12.6 mm
T.T.L.56.8 mm

Optics

Focal length25 mm
ApertureF0.9 Manual Iris
Working distance200 mm, 300 mm, 500 mm
Magnification0.141X, 0.09X, 0.05X
Distortion0.1%

Sensor and imaging

Resolution5 Megapixel

Light

Wavelength800~1700 nm

Mechanical

Sizedia. 50.8 x 39.3 mm
MountC
Shipping weight (estimated)0.52 kg

Other models in the SWIR lenses (LS-SWL-S02) series

See all 16 models
ModelSize / key dataPriceAvailabilityLink
LS-SWL-0201 4-20 mm, 1/2.7", C-mount $539.00 Ships in 2-3 weeks View
LS-SWL-0202 8 mm, 2/3", 5 MP, C-mount $569.00 Ships in 2-3 weeks View
LS-SWL-0203 8 mm, 2/3", 5 MP, C-mount $569.00 Ships in 2-3 weeks View
LS-SWL-0204 12 mm, 2/3", 5 MP, C-mount $589.00 Ships in 2-3 weeks View
LS-SWL-0205 12 mm, 2/3", 5 MP, C-mount $589.00 Ships in 2-3 weeks View
LS-SWL-0198 25 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-SWL-0195 25 mm, 1", 5 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-SWL-0207 25 mm, 2/3", 5 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-SWL-0210 25 mm, 1/2", 1.3 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-SWL-0196 35 mm, 1", 5 MP, C-mount $719.00 Ships in 2-3 weeks View
LS-SWL-0208 35 mm, 2/3", 5 MP, C-mount $719.00 Ships in 2-3 weeks View
LS-SWL-0209 50 mm, 2/3", 5 MP, C-mount $809.00 Ships in 2-3 weeks View
LS-SWL-0197 100 mm, 1", 5 MP, C-mount $1,099.00 Ships in 2-3 weeks View
LS-SWL-0199 105 mm, 1/1.8", 5 MP, C-mount $1,129.00 Ships in 2-3 weeks View
LS-SWL-0200 105 mm, 1/1.8" $1,129.00 Quote Ships in 2-3 weeks View
