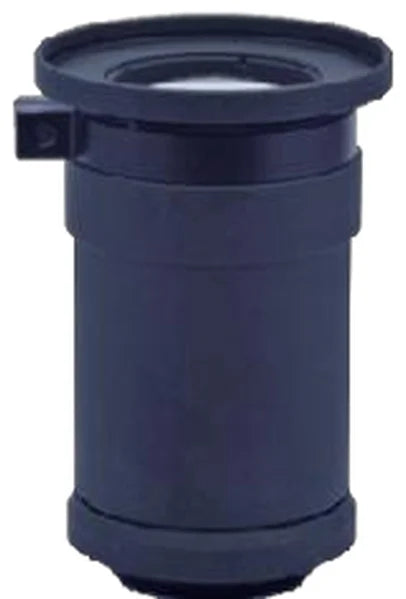

105 mm, 1/1.8", 5 MP, C-mount SWIR Lens (LS-SWL-0199)
Model LS-SWL-0199
- Focal length105 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF4.5 Fixed Iris
- Resolution5 Megapixel
$1,129.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
105 mm, 1/1.8", 5 MP, C-mount SWIR Lens. 105 mm F4.5 lens for 1/1.8" 5 MP sensors, 450-1100 nm, low distortion, working temperature -40 to 80°C. At a glance: focal length 105 mm; format 1/1.8"; resolution 5 Megapixel; aperture F4.5 Fixed Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0199 |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8", DxHxV) | field | 4.9 x 3.92 x 3 deg | 413 x 331 x 248 mm |
| Angle of view (1/2", DxHxV) | field | 4.4 x 3.5 x 2.7 deg | 367 x 294 x 221 mm |
| Angle of view (1/3", DxHxV) | field | 3.3 x 2.7 x 1.97 deg | 276 x 221 x 166 |
Optics
| Focal length | 105 mm |
|---|---|
| Aperture | F4.5 Fixed Iris |
| M.O.D. | 5 m |
| Back focal length | 55.4 mm |
| Filter thread | M40.5 x P0.5 mm |
| Distortion | -0.4%@y=4.5mm | -0.13%@y=3.0mm |
Sensor and imaging
| Resolution | 5 Megapixel |
|---|
Light
| Wavelength | 450~1100nm |
|---|
Environment and compliance
| Operating temperature | -40°C ~ 80°C |
|---|
Mechanical

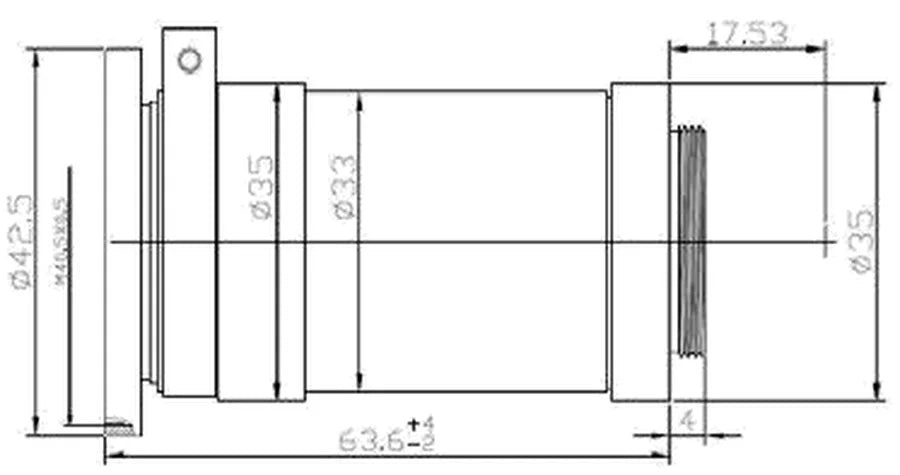

| Size | dia. 42.5 x 63.6 mm |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.52 kg |
