43 mm, F1 LWIR Thermal Lens (LS-SWL-0064)
Model LS-SWL-0064
- Focal length43 mm
- MountM38x3
- Sensor1/1.7"
- ApertureF1
$699.00
Ships in 2-3 weeks
0.23 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
43 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 43 mm; sensor 640×512 12μm; aperture F1; mount MJ38×3(P=3)-6g; distortion 0.8%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0064 |
|---|---|
| Angle of view (deg) | 13.0°(D)×10.2°(H)×8.2°(V) |
| Sealing | Front IP 67 |
| Front lens coating | DLC |
Optics
| Focal length | 43 mm |
|---|---|
| Aperture | F1 |
| Distortion | 0.8% |
| Relative illumination | 0.94 |
| Focus method | Fixed |
| Focus range | 5m~∞ |
| Mechanical back focal length | 9.285 mm |
| Image circle (derived) | dia. 9.8 mm, from the 640 x 512 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 640×512 12μm |
|---|
Environment and compliance
| Operating temperature | Non-athermalized |
|---|
Mechanical
| Mount | MJ38×3(P=3)-6g |
|---|---|

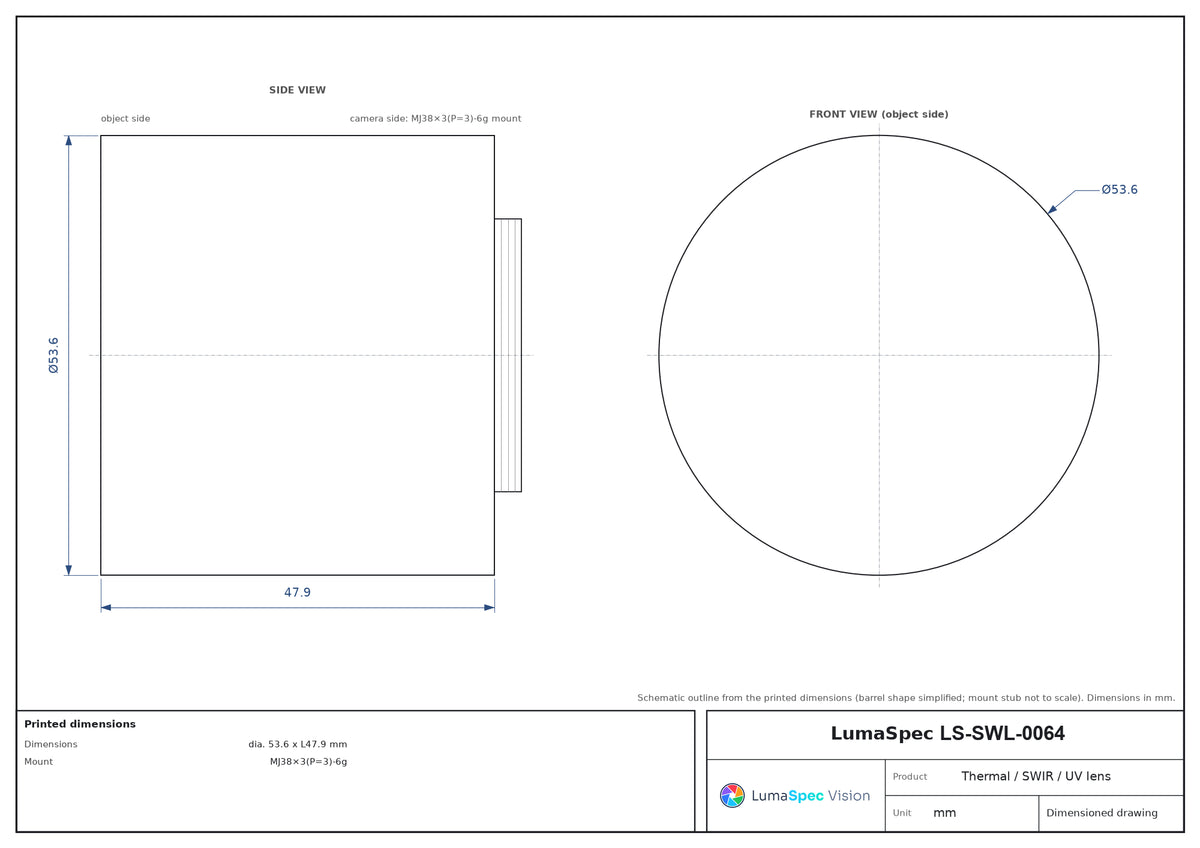

| Dimensions | dia. 53.6 x L47.9 mm |
| Weight | <95g |
| Shipping weight (estimated) | 0.23 kg |
Photo shows a representative model of this series; see the specifications for this model.
