40 mm, F1 LWIR Thermal Lens (LS-SWL-0048)
Model LS-SWL-0048
- Focal length40 mm
- MountM27x0.5
- Sensor1/1.2"
- ApertureF1
$669.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
40 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 40 mm; sensor 640×512 17μm; aperture F1; mount M27×0.5; distortion 0.49%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0048 |
|---|---|
| Angle of view (deg) | 13.95°(D)×10.93°(H)×8.76°(V) |
| Sealing | Front IP 67 |
Optics
| Focal length | 40 mm |
|---|---|
| Aperture | F1 |
| Distortion | 0.49% |
| Relative illumination | 0.95 |
| Focus method | Fixed |
| Focus range | 10m~∞ |
| Mechanical back focal length | 8.7 mm |
| Image circle (derived) | dia. 13.9 mm, from the 640 x 512 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 640×512 17μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M27×0.5 |
|---|---|

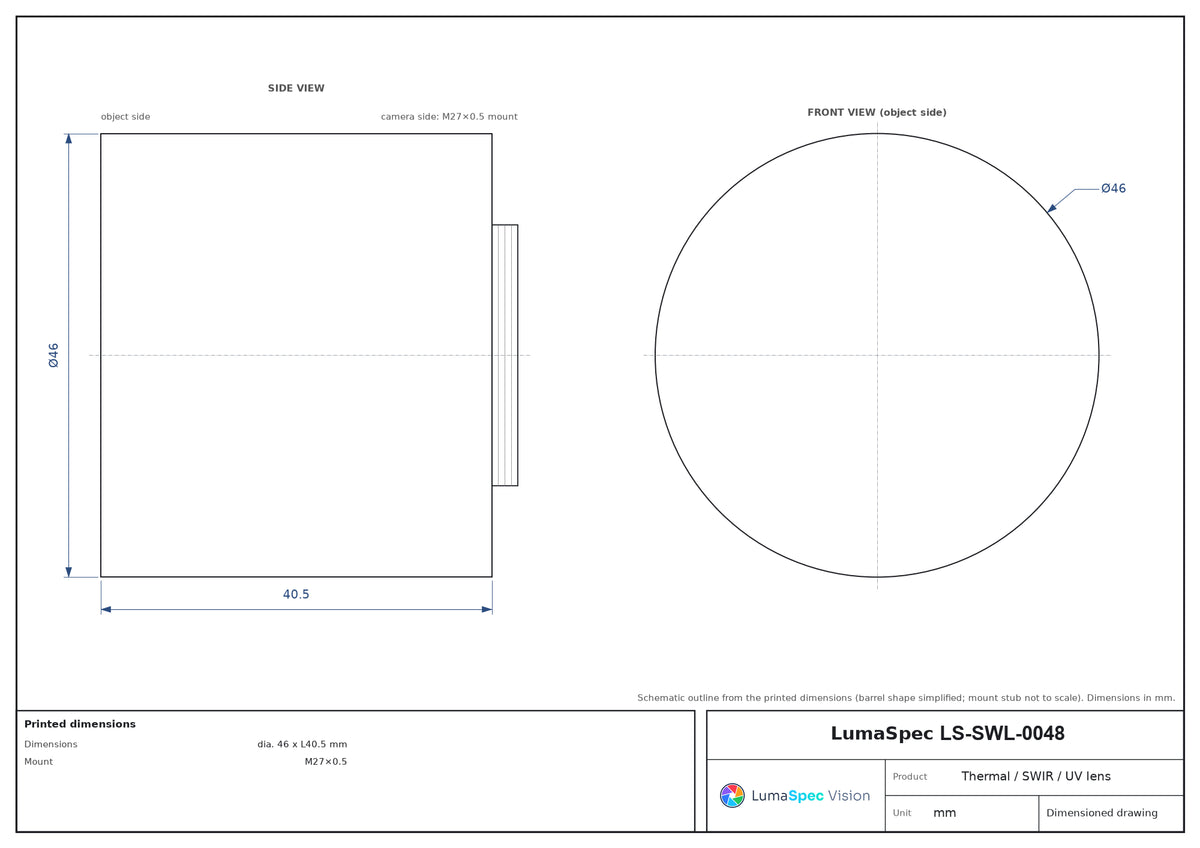

| Dimensions | dia. 46 x L40.5 mm |
| Weight | <75g |
| Shipping weight (estimated) | 0.20 kg |
Photo shows a representative model of this series; see the specifications for this model.
