50 mm, F1.5 LWIR Thermal Lens (LS-SWL-0010)
Model LS-SWL-0010
- Focal length50 mm (medium-wave / MWIR)
- MountM35x0.75
- Sensor1/1.2"
- ApertureF1.5
$779.00
Ships in 2-3 weeks
0.37 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm, F1.5 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 50 mm (medium-wave / MWIR); sensor 320x256 30um; aperture F1.5; mount M35x0.75; distortion 1%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0010 |
|---|---|
| Angle of view (deg) | 1.1(H)x8.8(V) |
| Sealing | IP 67 |
| Front lens coating | AR |
Optics
| Focal length | 50 mm (medium-wave / MWIR) |
|---|---|
| Aperture | F1.5 |
| Distortion | 1% |
| Relative illumination | 0.93 |
| Focus method | Motorized focus |
| Focus range | 1m~∞ |
| Mechanical back focal length | 27.4 mm |
| Image circle (derived) | dia. 12.3 mm, from the 320 x 256 detector at 30 micron pitch |
Sensor and imaging
| Sensor | 320x256 30um |
|---|
Environment and compliance
| Operating temperature | -30℃ to +80℃ |
|---|
Mechanical
| Mount | M35x0.75 |
|---|---|

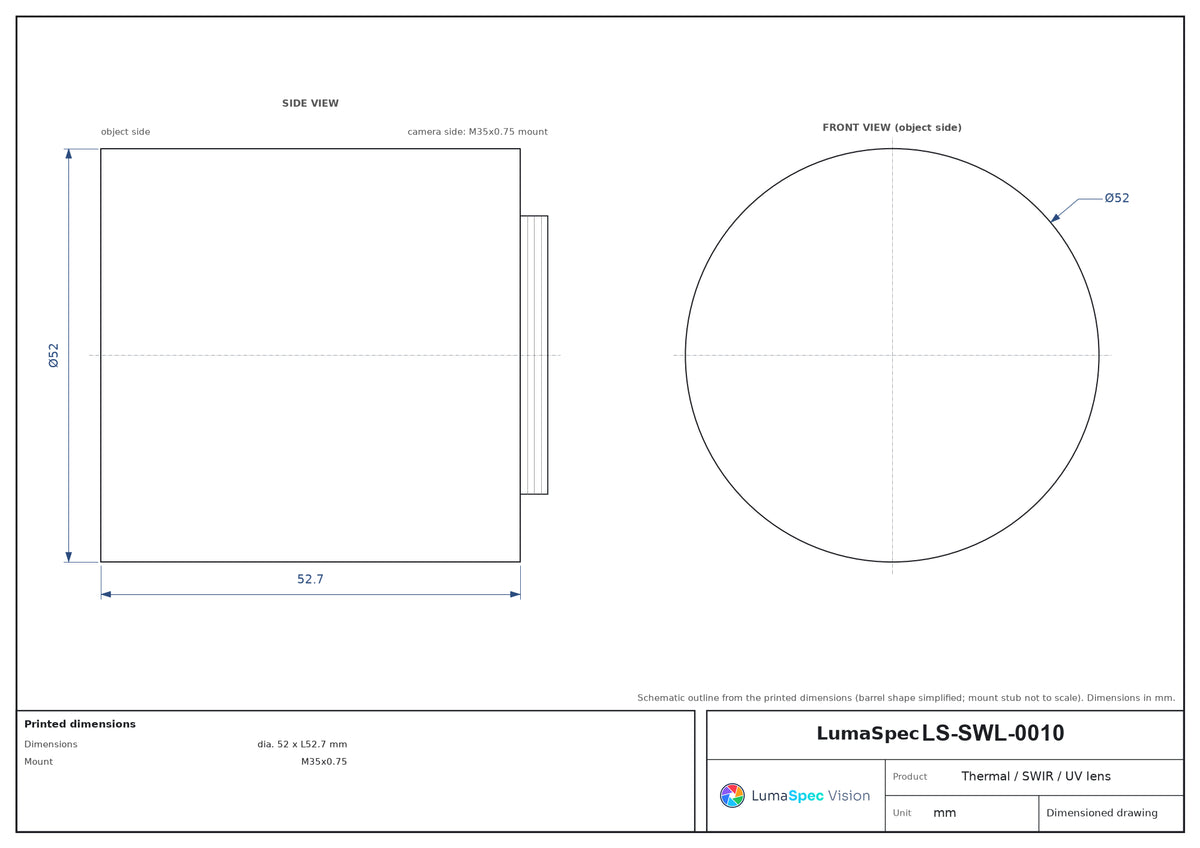

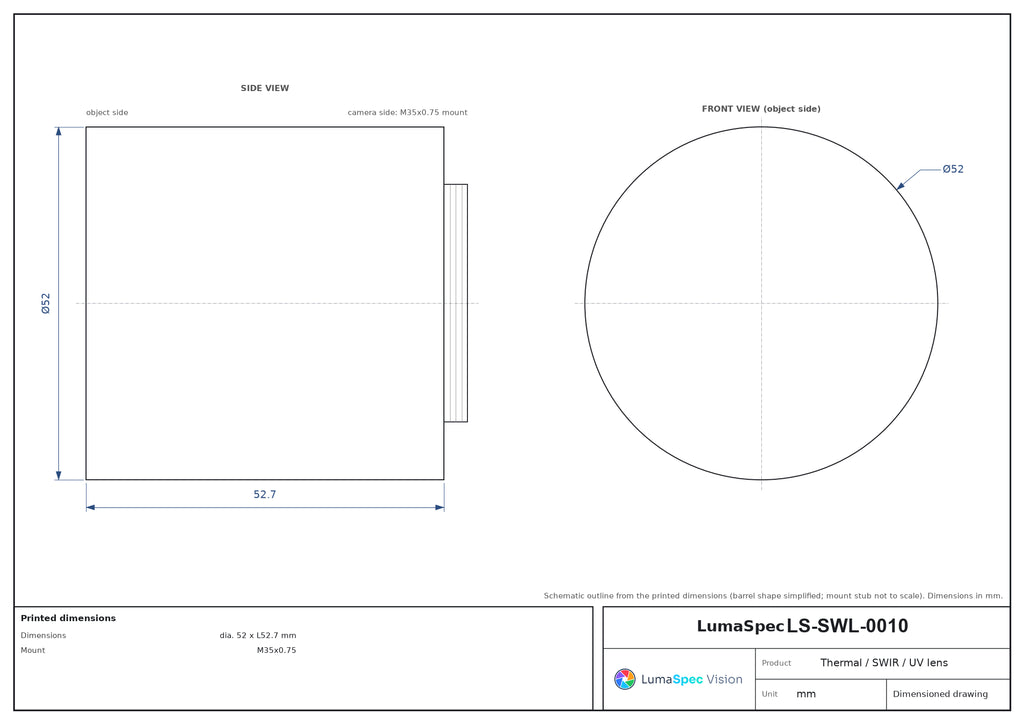

| Dimensions | dia. 52 x L52.7 mm |
| Weight | <190g |
| Shipping weight (estimated) | 0.37 kg |
Photo shows a representative model of this series; see the specifications for this model.
