45 mm, F1.2 LWIR Thermal Lens, BFL 14.6 mm, dia. 55.5 x L62.0 mm (LS-SWL-0145)
Model LS-SWL-0145
- Focal length45 mm
- MountM32x1.5
- Sensor1/2.7"
- ApertureF1.2
$719.00
Ships in 2-3 weeks
0.33 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
45 mm, F1.2 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 45 mm; sensor 320×240 17μm; aperture F1.2; mount M32×1.5; distortion -0.51%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0145 |
|---|---|
| Angle of view (deg) | 8.7(D)x7.0(H)×5.2(V) |
| Front lens coating | AR |
Optics
| Focal length | 45 mm |
|---|---|
| Aperture | F1.2 |
| Distortion | -0.51% |
| Relative illumination | 0.9 |
| Focus range | 2m~∞ |
| Mechanical back focal length | 14.6 mm |
| Focus method | Fixed |
| Image circle (derived) | dia. 6.8 mm, from the 320 x 240 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 320×240 17μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M32×1.5 |
|---|---|

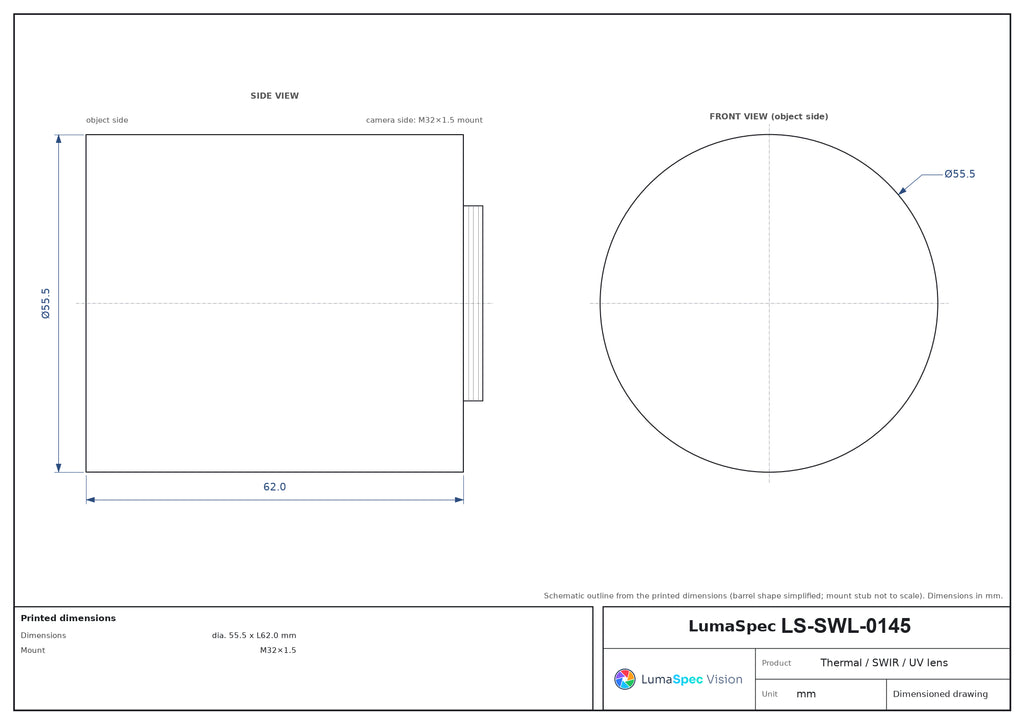

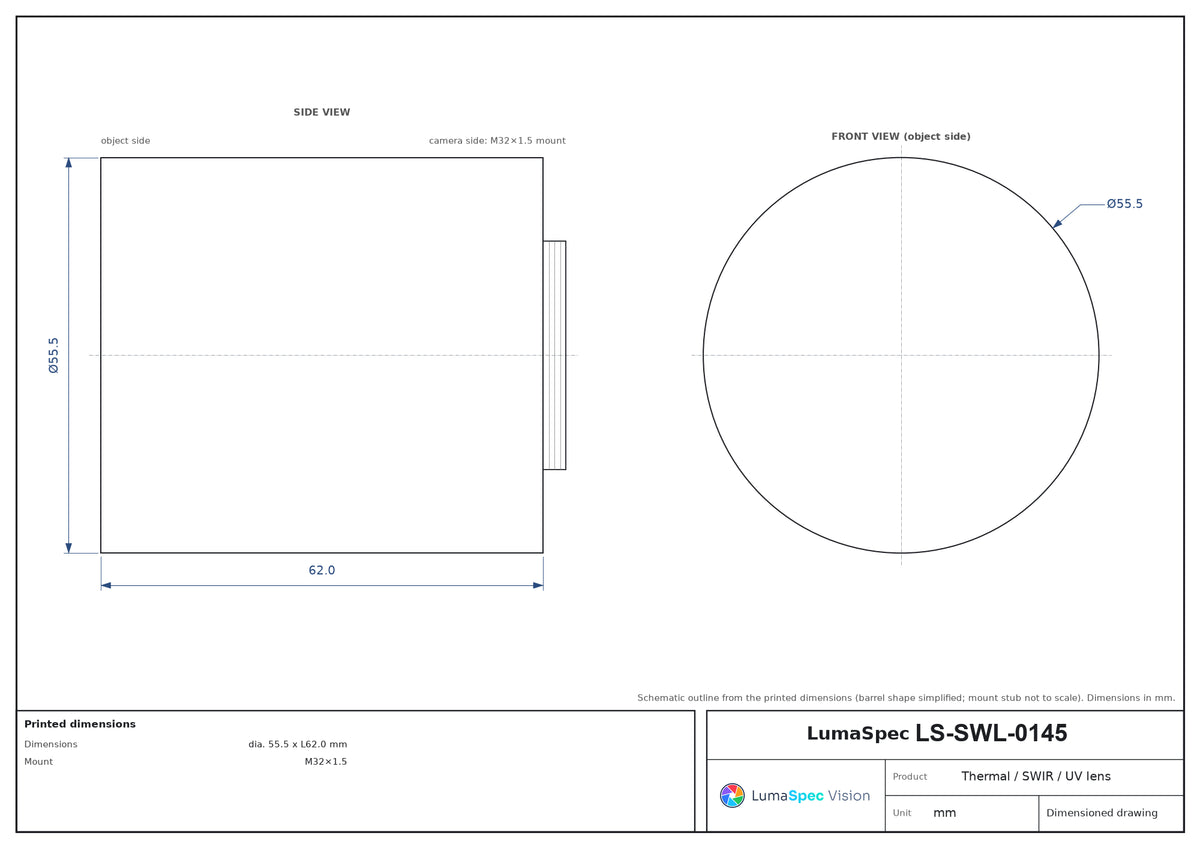

| Dimensions | dia. 55.5 x L62.0 mm |
| Weight | <165g |
| Shipping weight (estimated) | 0.33 kg |
Photo shows a representative model of this series; see the specifications for this model.
