Thermal, SWIR & UV lenses
50 mm, F1, Flange-mount LWIR Thermal Lens, BFL 4.795 mm, dia. 59.8 x L66 mm (LS-SWL-0060)
Model LS-SWL-0060
- Focal length50 mm
- MountFlange mount
- Sensor1/1.2"
- ApertureF1
$779.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm, F1, Flange-mount LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 50 mm; sensor 640×512 17μm; aperture F1; mount Flange; distortion 1.4%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0060 |
|---|---|
| Angle of view (deg) | 15.68°(D)×12.4°(H)×10°(V) |
| Sealing | Front IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F1 |
| Distortion | 1.4% |
| Relative illumination | 0.9 |
| Focus method | Manual focus |
| Focus range | 5m~∞ |
| Mechanical back focal length | 4.795 mm |
| Image circle (derived) | dia. 13.9 mm, from the 640 x 512 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 640×512 17μm |
|---|
Environment and compliance
| Operating temperature | Non-athermalized |
|---|
Mechanical
| Mount | Flange |
|---|---|

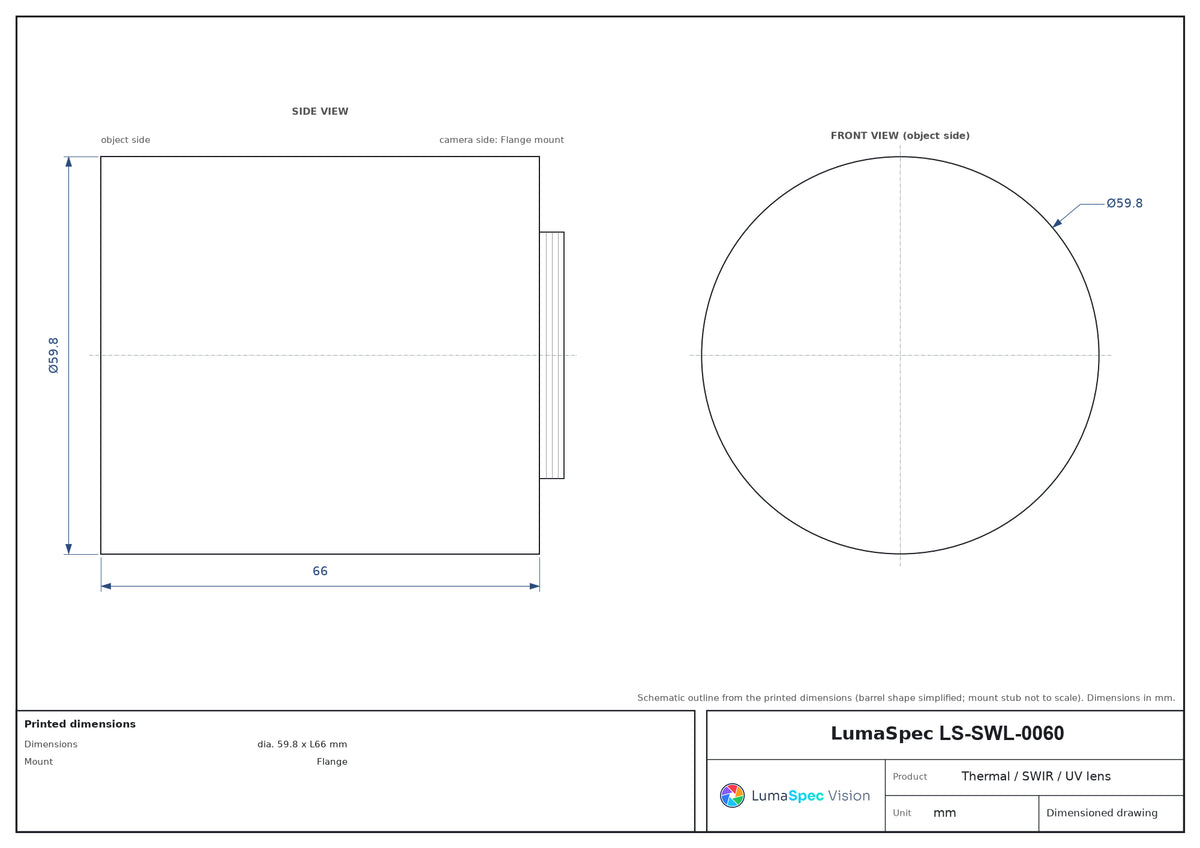

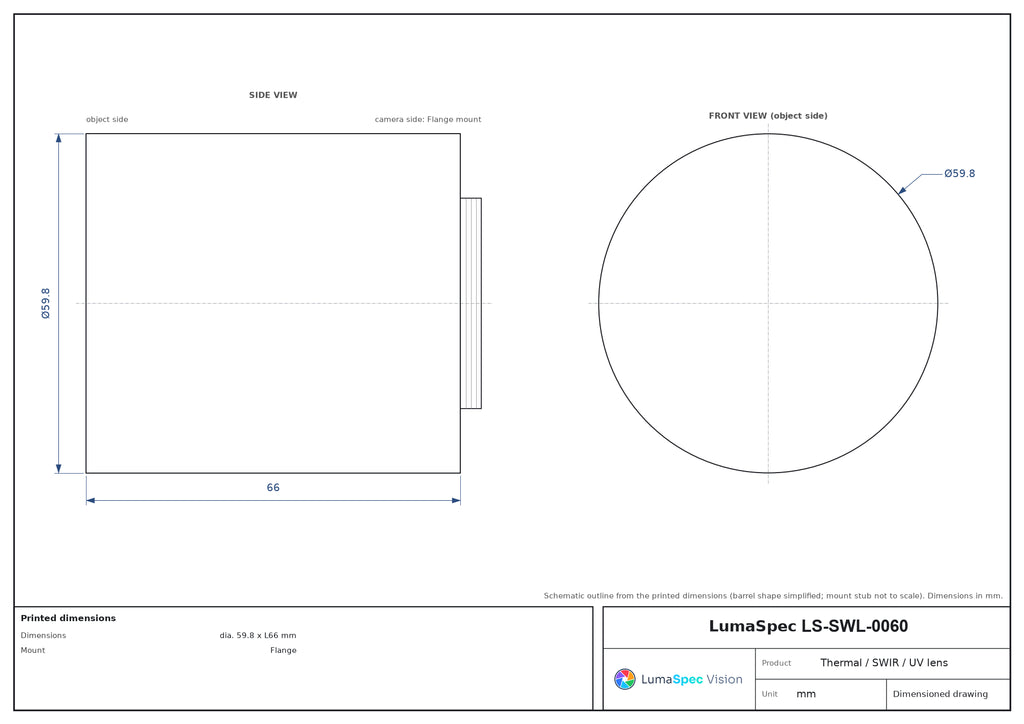

| Dimensions | dia. 59.8 x L66 mm |
| Weight | <201g |
| Shipping weight (estimated) | 0.38 kg |
Photo shows a representative model of this series; see the specifications for this model.
