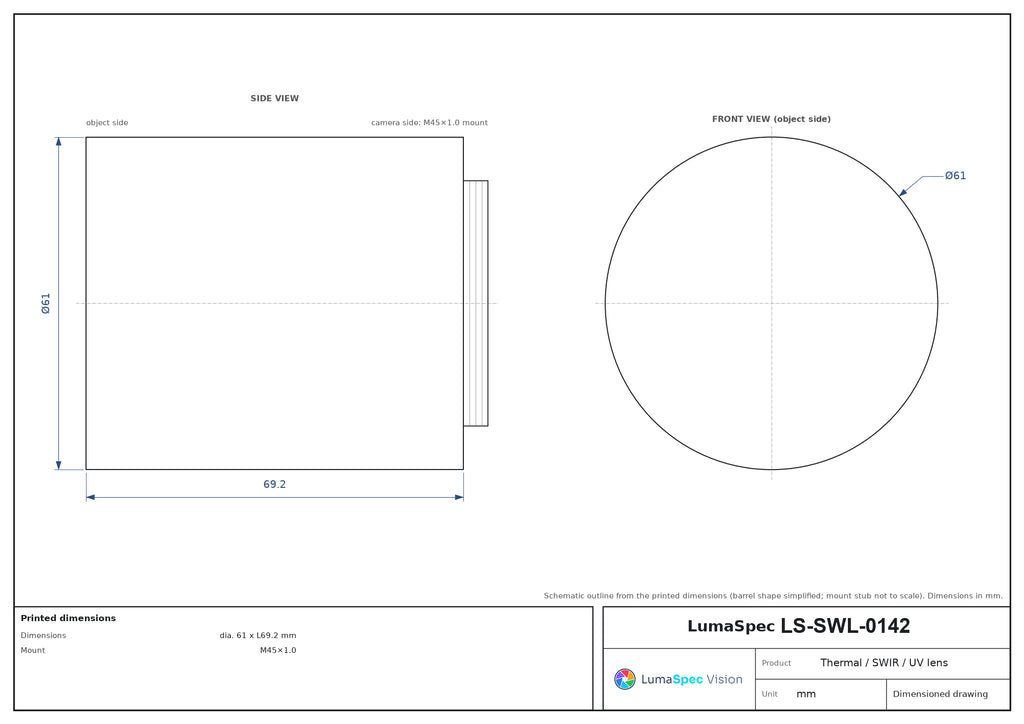

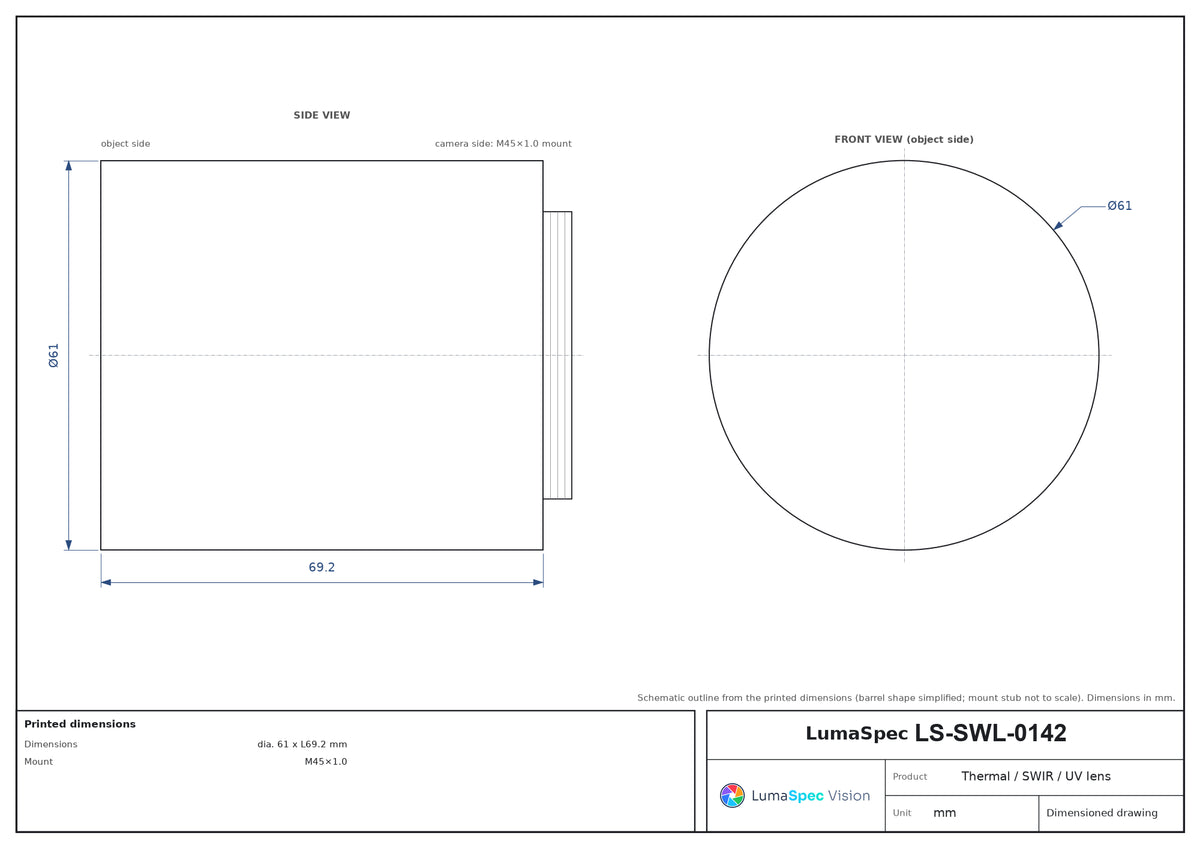

  • LS-SWL-0142 dimensions (mm)

Thermal, SWIR & UV lenses

50 mm, F1.0 LWIR Thermal Lens (LS-SWL-0142)

Model LS-SWL-0142

  • Focal length50 mm
  • MountM45x1.0
  • Sensor1/2"
  • ApertureF1.0
$779.00

Ships in 2-3 weeks

0.62 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, F1.0 LWIR Thermal Lens (LS-SWL-0142)LS-SWL-0142

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, F1.0 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 50 mm; sensor 384×288 17μm; aperture F1.0; mount M45×1.0; distortion -0.48%.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0142
Angle of view (deg)9.38(D)x7.5(H)×5.62(V)
Front lens coatingAR

Optics

Focal length50 mm
ApertureF1.0
Distortion-0.48%
Relative illumination0.9
Focus range5m~∞
Mechanical back focal length7.34 mm
Focus methodAdjustable focus
Image circle (derived)dia. 8.2 mm, from the 384 x 288 detector at 17 micron pitch

Sensor and imaging

Sensor384×288 17μm

Environment and compliance

Operating temperature-40℃ to +80℃

Mechanical

MountM45×1.0
Dimensionsdia. 61 x L69.2 mm
Weight<370g
Shipping weight (estimated)0.62 kg

Photo shows a representative model of this series; see the specifications for this model.
