Thermal, SWIR & UV lenses
50 mm, F1.35, M45x1-mount LWIR Thermal Lens (LS-SWL-0194)
Model LS-SWL-0194
- Focal length50 mm
- MountM45x1
- Sensor1.1"
- ApertureF1.35
- Field of view10.14(D)x7.91(H)x5.86(V)(20mm)
$779.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm, F1.35, M45x1-mount LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 50 mm; sensor 1024x768 14um; aperture F1.35; mount M45x1; distortion 4.5%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0194 |
|---|
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F1.35 |
| Field of view | 10.14(D)x7.91(H)x5.86(V)(20mm) |
| Distortion | 4.5% |
| Relative illumination | 0.85 |
| Focus range | 20mm |
| Mechanical back focal length | 7 mm |
| Focus method | Manual focus |
| Image circle (derived) | dia. 17.9 mm, from the 1024 x 768 detector at 14 micron pitch |
Sensor and imaging
| Sensor | 1024x768 14um |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M45x1 |
|---|---|

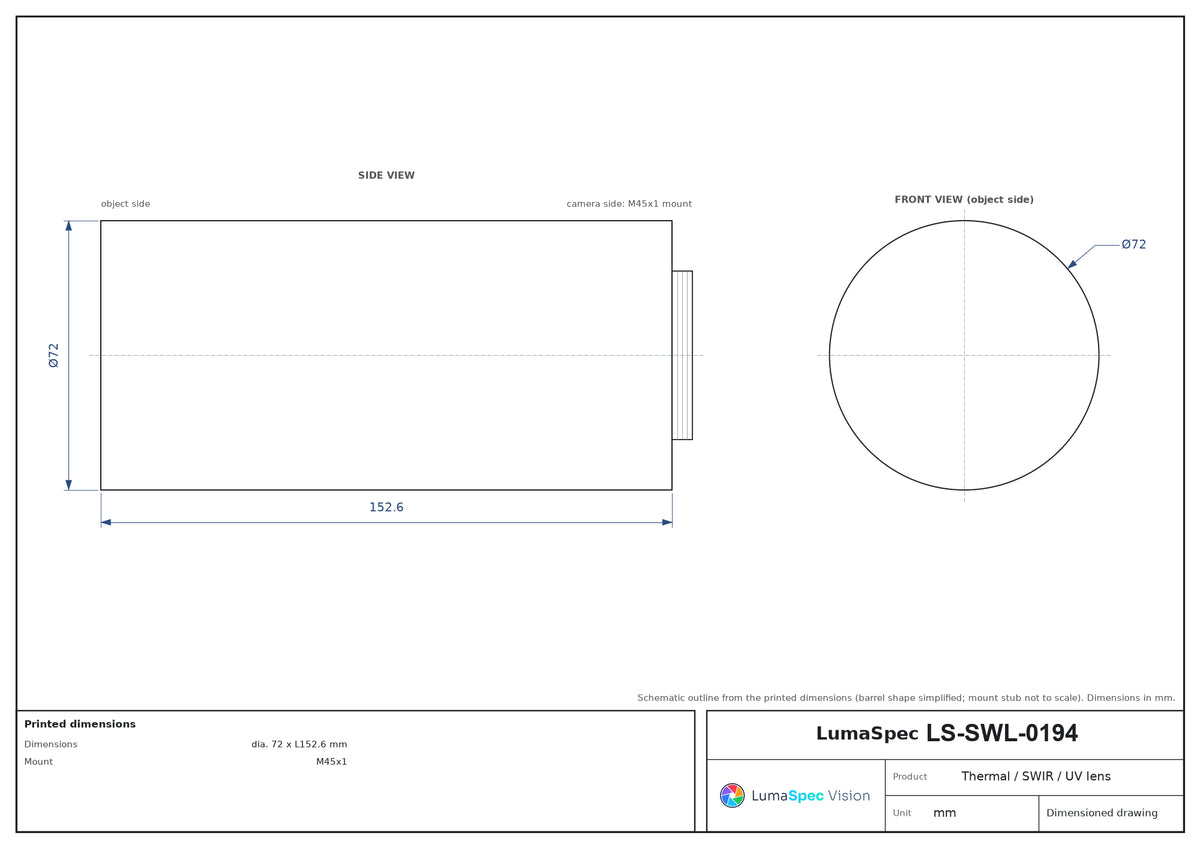

| Dimensions | dia. 72 x L152.6 mm |
| Shipping weight (estimated) | 0.52 kg |
Photo shows a representative model of this series; see the specifications for this model.
