75 mm, F1 LWIR Thermal Lens, BFL 7.55 mm (LS-SWL-0174)
Model LS-SWL-0174
- Focal length75 mm
- MountM45x0.5
- Sensor1/1.2"
- ApertureF1
$1,079.00
Ships in 2-3 weeks
1.19 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 75 mm; sensor 640x512 17um; aperture F1; mount M45x0.5; distortion 0.1%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0174 |
|---|---|
| Angle of view (deg) | 10.6(D)x8.3(H)x6.647(V) |
| Sealing | Front IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture | F1 |
| Distortion | 0.1% |
| Relative illumination | 0.98 |
| Focus method | Motorized |
| Focus range | 5m~∞ |
| Mechanical back focal length | 7.55 mm |
| Image circle (derived) | dia. 13.9 mm, from the 640 x 512 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 640x512 17um |
|---|
Environment and compliance
| Operating temperature | Non-athermalized |
|---|
Mechanical
| Mount | M45x0.5 |
|---|---|

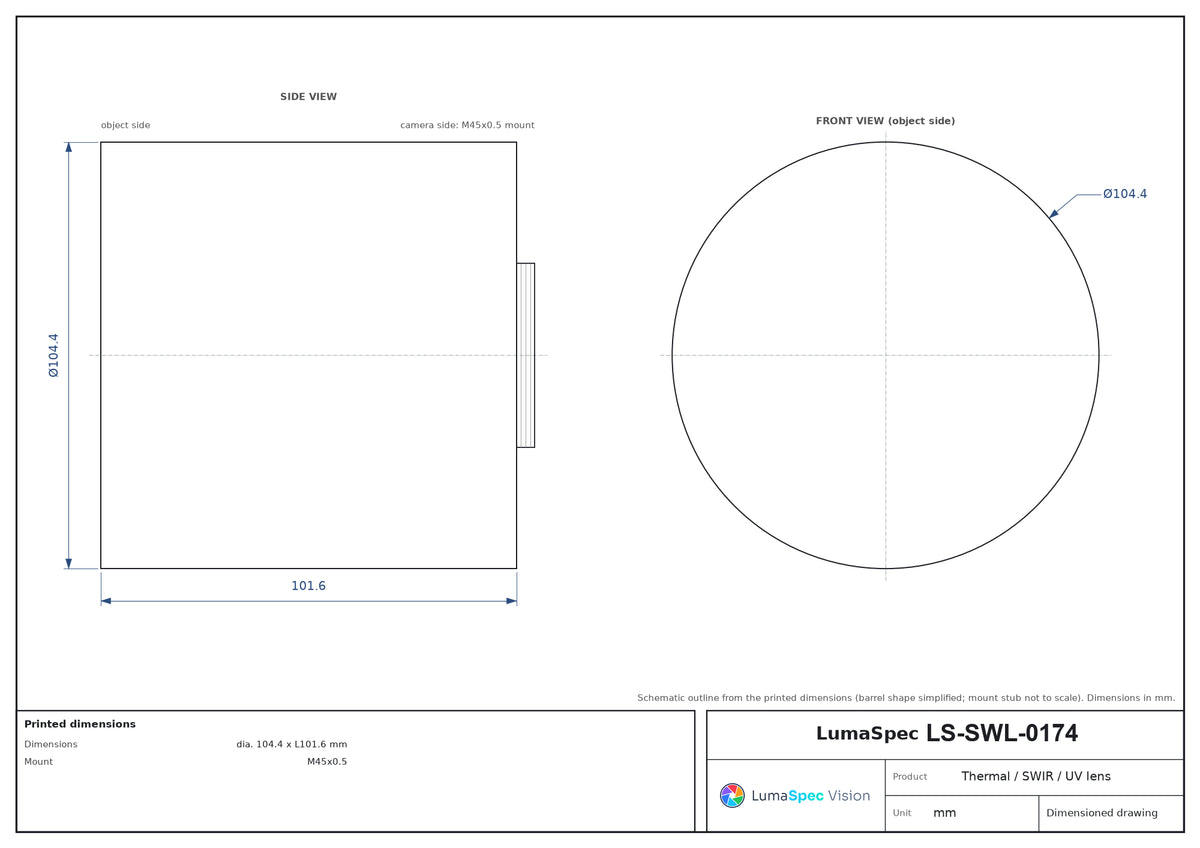

| Dimensions | dia. 104.4 x L101.6 mm |
| Weight | <780g |
| Shipping weight (estimated) | 1.19 kg |
Photo shows a representative model of this series; see the specifications for this model.
