90 mm, 65 MP, F-mount Large-Format Machine Vision Lens, 0.192x-0.118x (LS-SMV9015F-65M)
Model LS-SMV9015F-65M
- Focal length90 mm
- Magnification0.192x-0.118x
- MountF-mount
- SensorLarge format
- ApertureF4.0-16
- Resolution65 Megapixel
$1,039.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.08 kg shipping weight
Volume pricing, Net 30 or a formal quote?
90 mm, 65 MP, F-mount Large-Format Machine Vision Lens. A 90 mm F-mount large-format machine vision lens for 65 megapixel 3.2/5 um 8K sensors with a 64 mm image circle, 0.05% distortion and 0.192x-0.118x magnification. At a glance: magnification 0.192x-0.118x; focal length 90 mm; resolution 65 Megapixel; aperture F4.0-16; mount F.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV9015F-65M |
|---|---|
| Conjugate distance | 671.8 ±9 / 792.6 ±9 / 987.2 ±9 mm |
| Image space N.A. | 0.1 |
| Object space N.A. | 0.01 |
Optics
| Focal length | 90 mm |
|---|---|
| Image circle | dia. 64 mm |
| Aperture | F4.0-16 |
| Magnification | 0.192x-0.118x |
| Working distance vs magnification | 0.192X: 530.3 ±5 mm; 0.155X: 651.1 ±5 mm; 0.118X: 845.7 ±5 mm |
| Flange focal distance | 46.5 ±0.5 mm |
| Distortion | 0.05% |
| Filter thread | M67 x P0.75 |
Sensor and imaging
| Resolution | 65 Megapixel |
|---|
Electrical
| Resolving power | 200 lp/mm axis; 125 lp/mm at dia. 46.2 and dia. 66 |
|---|
Mechanical
| Entrance pupil diameter | 21.58 mm |
|---|---|

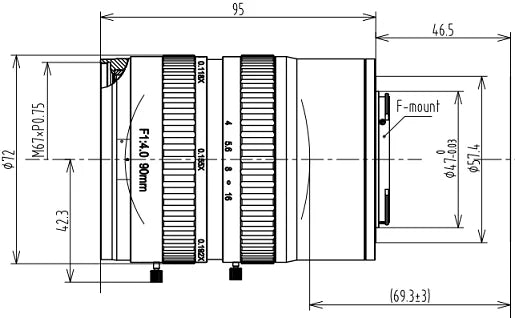

| Size | dia. 72 x 95 mm |
| Mount | F |
| Shipping weight (estimated) | 1.08 kg |
