80 mm, 65 MP, M58-mount Large-Format Machine Vision Lens (LS-SMV8001-65M)
  • 80 mm, 65 MP, M58-mount Large-Format Machine Vision Lens (LS-SMV8001-65M)

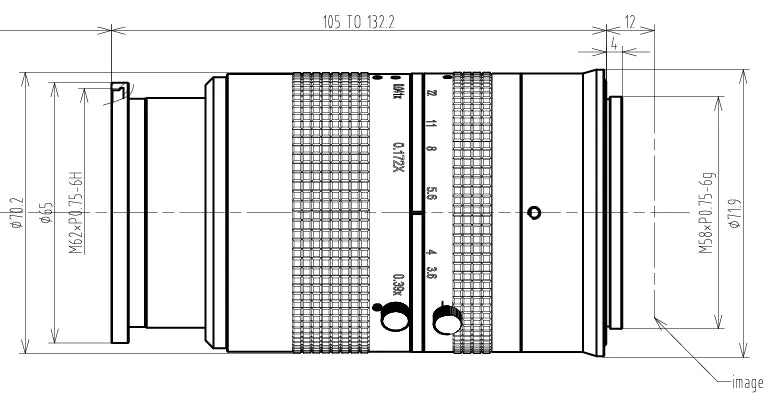

  • LS-SMV8001-65M dimensions (mm)

Machine vision lenses

80 mm, 65 MP, M58-mount Large-Format Machine Vision Lens (LS-SMV8001-65M)

Model LS-SMV8001-65M

  • Focal length80 mm ±5%
  • Magnification0.041x-0.39x
  • MountM58
  • SensorLarge format
  • ApertureF3.6-22
  • Resolution65 Megapixel
$969.00

In stock - ships the same business day (4 available, order by 2 PM ET)

1.08 kg shipping weight

Volume pricing, Net 30 or a formal quote?

80 mm, 65 MP, M58-mount Large-Format Machine Vision Lens. An 80 mm M58-mount large-format machine vision lens for 65 megapixel 3.2/5 um 8K sensors with a 46 mm image circle, 0.2% distortion and 0.041x-0.39x magnification. At a glance: magnification 0.041x-0.39x; focal length 80 mm ±5%; resolution 65 Megapixel; aperture F3.6-22; mount M58 x P0.75.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SMV8001-65M
Angle of view (D)26.8 deg

Optics

Focal length80 mm ±5%
Image circledia. 46 mm
ApertureF3.6-22
Magnification0.041x-0.39x
Working distance vs magnification0.041X: 2000 mm; 0.172X: 500 mm; 0.39X: 235 mm
Flange focal distance12 mm
TV distortion<0.2%

Sensor and imaging

Resolution65 Megapixel

Mechanical

Entrance pupil diameterdia. 47.2 mm
Sizedia. 69.8 x 133.5 mm
Front threadM62 x P0.75
MountM58 x P0.75
Shipping weight (estimated)1.08 kg
