Machine vision lenses
90 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV9005F-29M)
Model LS-SMV9005F-29M
- Focal length90 mm
- Magnification0.1x-0.01x
- MountF-mount
- SensorFull frame
- ApertureF4.0-16
- Resolution29 Megapixel
$1,039.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.08 kg shipping weight
Volume pricing, Net 30 or a formal quote?
90 mm, 29 MP, F-mount Large-Format Machine Vision Lens. A 90 mm F-mount large-format machine vision lens for 29 megapixel 5/7 um 4K sensors with a 43.2 mm image circle, <0.01% distortion and 0.1x-0.01x magnification, working distance 1 m to infinity. At a glance: magnification 0.1x-0.01x; focal length 90 mm; resolution 29 Megapixel; aperture F4.0-16; mount F.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV9005F-29M |
|---|---|
| Conjugate distance | infinity / 2112 ±5 / 1132 ±9 mm |
Optics
| Focal length | 90 mm |
|---|---|
| Image circle | dia. 43.2 mm |
| Aperture | F4.0-16 |
| Magnification | 0.1x-0.01x |
| Working distance vs magnification | 0.01X: infinity; 0.05X: 1985 ±9 mm; 0.1X: 1000 ±5 mm |
| FOV vs magnification | 0.01X: 4320 mm; 0.05X: 864 mm; 0.1X: 432 mm |
| Flange focal distance | 46.5 mm |
| Distortion | <0.01% |
| Focus range | 1 m - infinity |
| Filter thread | M62 x P0.75 |
| Relative illumination | 40% |
Sensor and imaging
| Resolution | 29 Megapixel |
|---|
Electrical
| Resolving power | 200 lp/mm axis; 125 lp/mm at dia. 46.2 and dia. 66 |
|---|
Mechanical

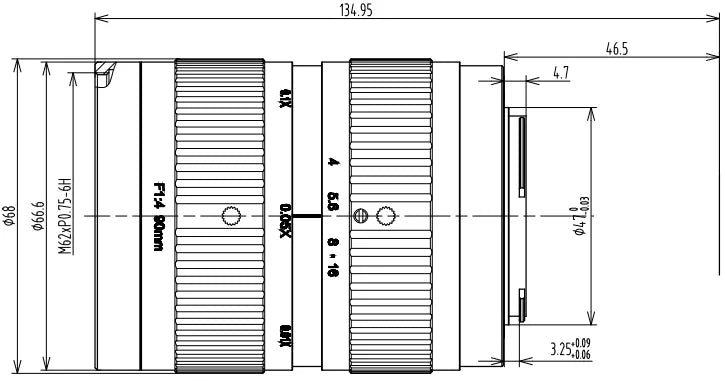

| Size | dia. 68 x 134.95 mm |
|---|---|
| Mount | F |
| Shipping weight (estimated) | 1.08 kg |
