40 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV4010F-29M)
  • 40 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV4010F-29M)

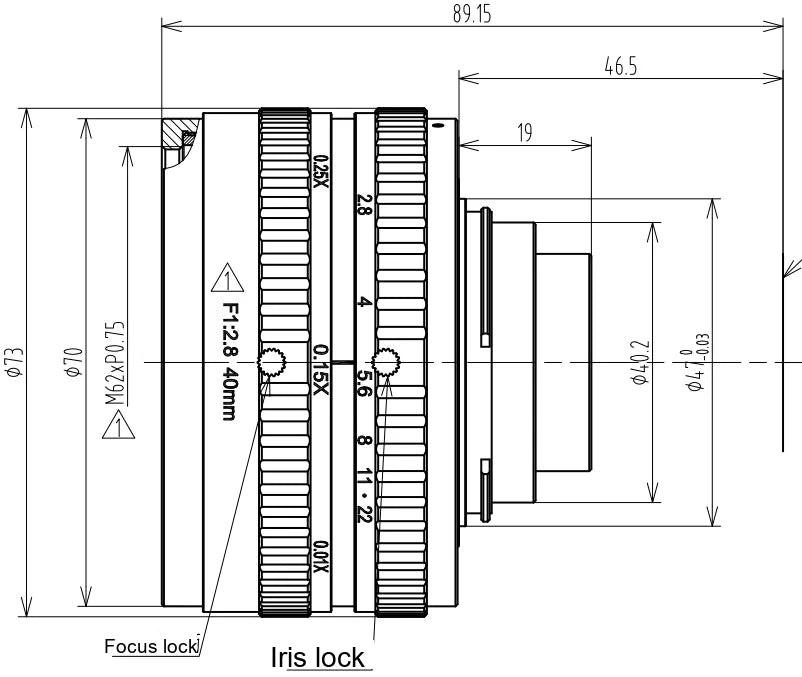

  • LS-SMV4010F-29M dimensions (mm)

Machine vision lenses

40 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV4010F-29M)

Model LS-SMV4010F-29M

  • Focal length40 mm
  • MountF-mount
  • SensorFull frame
  • ApertureF2.8~22
  • Resolution29 Megapixel (up to 5μ)
$709.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.38 kg shipping weight

Volume pricing, Net 30 or a formal quote?

40 mm, 29 MP, F-mount Large-Format Machine Vision Lens. 40 mm F2.8 large-format F-mount lens covering a dia. 43 mm image, rated 29 megapixel (up to 5 um pixels, 4K line scan), with <0.2% distortion. Described as a line-scan industrial lens for packaging, printing and similar work. At a glance: reference working distance 409 mm; focal length 40 mm; format dia. 43; resolution 29 Megapixel (up to 5μ); aperture F2.8~22.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SMV4010F-29M
Formatdia. 43
Reference W.D.409 mm

Optics

Focal length40 mm
ApertureF2.8~22
Distortion<0.2%
Magnification / W.D. (mm) / FOV (mm)0.01x: 4000, 1085; 0.1x: 436, 403; 0.238x: 200, 131
M.O.D.0.2 m
Relative illumination40%
Magnification / W.D. / FOV (mm)0.01x: 4000 / 1085; 0.1x: 436 / 403; 0.238x: 200 / 131
Reference working distance409 mm

Sensor and imaging

Resolution29 Megapixel (up to 5μ)

Light

Illumination40%

Mechanical

Filter sizeM62 x 0.75
MountF
Weight200 g
Size (from drawing)dia. 73 x 89.15 mm
Shipping weight (estimated)0.38 kg
