60 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV6016F-29M)
Model LS-SMV6016F-29M
- Focal length60 mm
- MountF-mount
- SensorLarge format
- ApertureF4.0
- Resolution29 Megapixel (up to 5μ)
$839.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 or a formal quote?
60 mm, 29 MP, F-mount Large-Format Machine Vision Lens. 60 mm F4.0 large-format F-mount lens covering a dia. 64 mm image, rated 29 megapixel (up to 5 um pixels, 4K line scan), with <0.12% distortion. Described as a line-scan industrial lens for packaging, printing and similar work. At a glance: reference working distance 384.9 mm; focal length 60 mm; format dia. 64; resolution 29 Megapixel (up to 5μ); aperture F4.0.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SMV6016F-29M |
|---|---|
| Format | dia. 64 |
| Reference W.D. | 384.9 mm |
Optics
| Focal length | 60 mm |
|---|---|
| Aperture | F4.0 |
| Distortion | <0.12% |
| Magnification / W.D. (mm) / FOV (mm) | 0.04x: 1538, 1592; 0.167x: 385, 387; 0.33x: 200, 193 |
| Relative illumination | 45% |
| Magnification / W.D. / FOV (mm) | 0.04x: 1538 / 1592; 0.167x: 385 / 387; 0.33x: 200 / 193 |
| Reference working distance | 384.9 mm |
Sensor and imaging
| Resolution | 29 Megapixel (up to 5μ) |
|---|
Light
| Illumination | 45% |
|---|
Mechanical
| Filter size | M65 x 0.75 |
|---|---|
| Mount | F |
| Weight | 200 g |

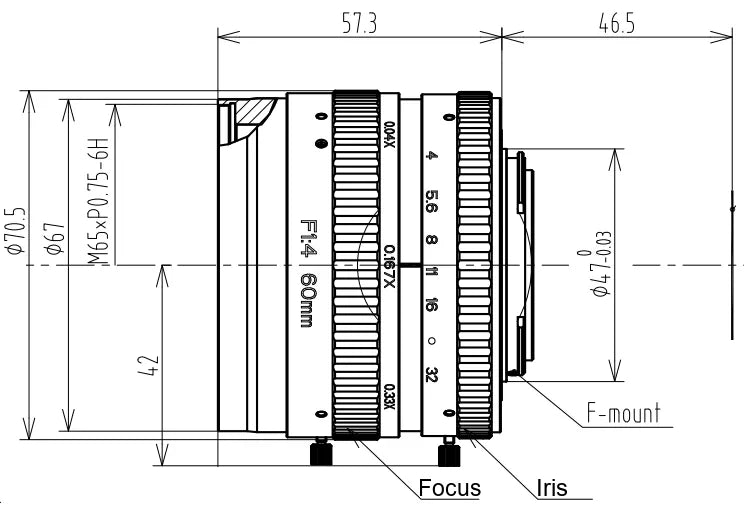

| Size (from drawing) | dia. 70.5 x 57.3 mm |
| Shipping weight (estimated) | 0.38 kg |
