2.8 mm, 1/1.8", 10 MP, CS-mount Fixed CCTV Lens (LS-SFC2816-10M)
Model LS-SFC2816-10M
- Focal length2.8 mm
- MountCS-mount
- Sensor1/1.8"
- ApertureF1.6 Manual iris
- Resolution10 Megapixel
$39.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.24 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.8 mm, 1/1.8", 10 MP, CS-mount Fixed CCTV Lens. 2.8 mm F1.6 manual-iris mono-focal lens for 1/1.8" cameras, rated 10 megapixel (4K, 1080P); the format also covers 1/2", 1/2.5" and 1/2.7". For indoor buildings, schools, rooms and banks. At a glance: focal length 2.8 mm; format 1/1.8" (dia. 9 mm); resolution 10 Megapixel; aperture F1.6 Manual iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFC2816-10M |
|---|---|
| Format | 1/1.8" (dia. 9 mm) |
| Angle of view (1/1.8") | 172 x 160 x 108 deg |
| T.T.L. | 49.96 mm |
| Construction | 10G element |
Optics
| Focal length | 2.8 mm |
|---|---|
| Aperture | F1.6 Manual iris |
| M.O.D. | 0.05 m |
| Distortion | -88.6% |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|

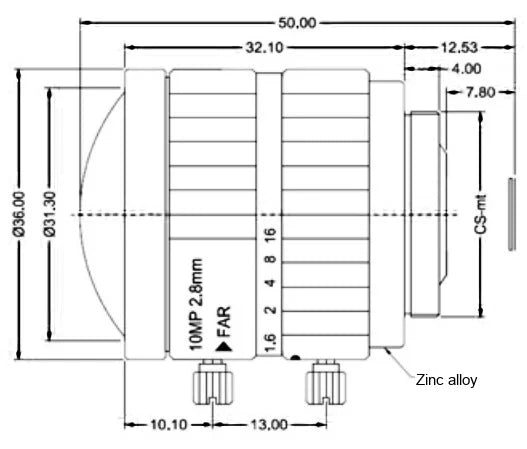

Mechanical
| Size | dia. 36 x 32.1 mm |
|---|---|
| Mount | CS |
| Weight | 97 g |
| Shipping weight (estimated) | 0.24 kg |
