CCTV lenses
16 mm, 1/2", 5 MP, CS-mount Fixed CCTV Lens, dia. 28 x 29.2mm (LS-CTV-0013)
Model LS-CTV-0013
- Focal length16 mm
- MountCS-mount
- Sensor1/2"
- ApertureF2.0 Fixed iris
- Resolution5.0 Megapixel
$59.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.15 kg shipping weight
Volume pricing, Net 30 or a formal quote?
16 mm, 1/2", 5 MP, CS-mount Fixed CCTV Lens. 16 mm 1/2" 5.0 megapixel fixed-focal CS-mount CCTV lens, F2.0, IR corrected for 760-850 nm, for bank, school and room surveillance. At a glance: focal length 16 mm; format 1/2"; resolution 5.0 Megapixel; aperture F2.0 Fixed iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0013 |
|---|---|
| Format | 1/2" |
| Angle of view (1/2", DxHxV) | 29 x 23.3 x 18 deg |
| Angle of view (1/2.5", DxHxV) | 26 x 25 x 16 deg |
| IR correction | Yes (day & night) |
| Angle of view (1/3", DxHxV) | 22 x 17.6 x 13.2 deg |
| Angle of view (1/2") | 28 x 22.4 x 16.8 deg |
| Angle of view (1/3") | 22 x 17.6 x 13.2 deg |
| T.T.L. | 24 mm |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture | F2.0 Fixed iris |
| M.O.D. | 0.3m |
| Distortion | 0.24% |
| Back focal length (optical) | 5.75mm |
| Mechanical back focal length | 5.13mm |
| TTL | 24 mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|
Mechanical

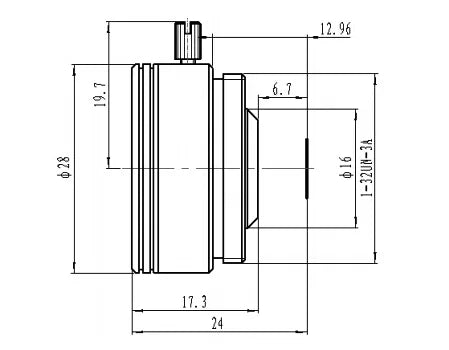

| Size | dia. 28 x 29.2mm |
|---|---|
| Optical total length | 37.2mm |
| Mount | CS |
| Weight | 35g |
| Shipping weight (estimated) | 0.15 kg |
