170 mm, 1", 10 MP, C-mount Fixed CCTV Lens (LS-S1FCD17044-10M)
Model LS-S1FCD17044-10M
- Focal length170mm
- MountC-mount
- Sensor1"
- ApertureF4.4 DC Iris
- Resolution10 Megapixel
$39.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.79 kg shipping weight
Volume pricing, Net 30 or a formal quote?
170 mm, 1", 10 MP, C-mount Fixed CCTV Lens. 170 mm 1" 10 megapixel fixed-focal DC (auto) iris CCTV lens, F4.4, IR corrected, for long-distance ITS, parking, traffic and recognition. At a glance: focal length 170mm; format 1"; resolution 10 Megapixel; aperture F4.4 DC Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1FCD17044-10M |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 5.4 x 4.32 x 3.25 deg |
| Angle of view (2/3", DxHxV) | 3.72 x 2.97 x 2.23 deg |
| CRA | <4.03° |
| Notes | Element 6G; -30°~+60° |
| IR correction | Yes (day & night) |
Optics
| Focal length | 170mm |
|---|---|
| Aperture | F4.4 DC Iris |
| M.O.D. | 5m |
| Distortion | 0.27% @ max image circle dia. 16.6 |
| Back focal length (optical) | 25.82mm |
| Mechanical back focal length | 13mm |
| Total track length (TTL) | 65mm |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|

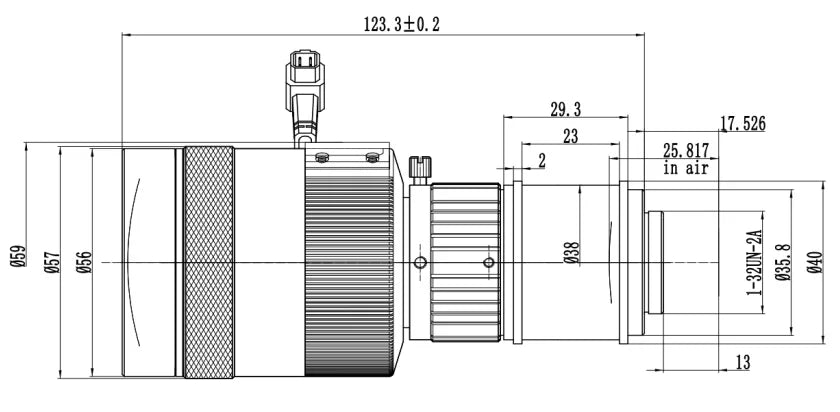

Mechanical
| Optical total length | 65mm |
|---|---|
| Size | dia. 59 x 123.3mm |
| Mount | C |
| Weight | 493g |
| Shipping weight (estimated) | 0.79 kg |
