CCTV lenses

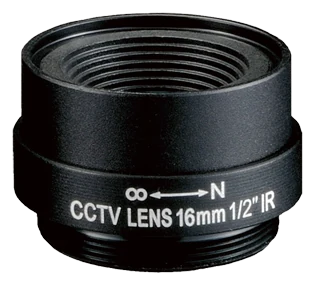

Fixed CCTV lenses
- 20 models
- from $39.00
- Series LS-CF
The Fixed CCTV lenses is a range of 20 cctv lenses from LumaSpec Vision, from $39.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2.1 mm, 1/2.7", 3 MP, CS-mount, 2.5 mm, 1/2.7", 3 MP, CS-mount, 2.8 mm, 1/1.8", 10 MP, CS-mount, 2.8 mm, 1/2.7", 3 MP, CS-mount, 2.95 mm, 1/1.8", 5 MP, CS-mount, 3.2 mm, 1/1.7", 12 MP, CS-mount, 4 mm, 1/2.7", 5 MP, CS-mount, 5 mm, 1/1.7", 12 MP, CS-mount, 6 mm, 1/1.8", 3 MP, CS-mount, 6 mm, 1/2", 3 MP, CS-mount, 6 mm, 1/2.5", 5 MP, CS-mount, 8 mm, 1/1.7", 12 MP, CS-mount, 8 mm, 1/2.5", 5 MP, CS-mount, 12 mm, 1/1.8", 5 MP, CS-mount, 12 mm, 1/2.5", 5 MP, CS-mount, 16 mm, 1/2", 5 MP, CS-mount and 2 more
- Type
- CCTV fixed
- Mount
- C-mount, CS-mount
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP
- Image circle
- Up to 8 mm, 8-11 mm, 11-16 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 100 mm +
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 1"
Features
- High resolution: 5 megapixel, covers 5 MP, 3 MP and 1080P
- IR correction: 24 h day and night vision
- Large format: 1/2" covers 1/2", 1/2.5" and 1/2.7" cameras
- Low distortion: suits special industrial cases
- Large format: 1/1.8" covers 1/1.8", 1/2" and 1/2.5" cameras
- High resolution: 5 megapixel, covers 3 MP and 1080P
- Large FOV for wide-area surveillance
- 10 megapixel resolution, covers 4K and 1080P
Typical uses
- Banks
- Offices
- Rooms
- Corridors
- Buildings
- Gardens
All 20 models in the Fixed CCTV lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-S12FC1620IR-5M | dia. 30 x 15.2 | 5.0 Megapixel | 16 mm | F2.0 Fixed iris | $39.00 | View |
| LS-S18FC1218IR-5M | dia. 30 x 14.2 | 5.0 Megapixel | 12 mm | F1.8 Fixed iris | $39.00 | View |
| LS-S18FC2920IR-5M | dia. 28 x 21.2 mm | 5.0 Megapixel | 2.95 mm | F2.0 Fixed iris | $39.00 | View |
| LS-S1FCD17044-10M | dia. 59 x 123.3mm | 10 Megapixel | 170mm | F4.4 DC Iris | $39.00 | View |
| LS-SFC0420IR-5M | dia. 28 x 29.7mm | 5.0 Megapixel | 4.0 mm | F2.0 Fixed iris | $39.00 | View |
| LS-SFC0520IR-12M | dia. 28 x 31.3 mm | 12 Megapixel | 5 mm | F2.0 Fixed iris | $39.00 | View |
| LS-SFC0612IR-3M | dia. 30 x 34 mm | 3.0 Megapixel | 6.0 mm | F1.2 Fixed iris | $39.00 | View |
| LS-SFC0618IR-3M | dia. 30 x 34 mm | 3.0 Megapixel | 6.0 mm | F1.2 Manual iris | $39.00 | View |
| LS-SFC0620IR-5M | dia. 28 x 29.5mm | 5.0 Megapixel | 6.0 mm | F2.0 Fixed iris | $39.00 | View |
| LS-SFC0818IR-12M | dia. 28 x 32.1 mm | 12 Megapixel | 8 mm | F1.8 Fixed iris | $39.00 | View |
| LS-SFC0820IR-5M | dia. 28 x 31.2mm | 5.0 Megapixel | 8.0 mm | F2.0 Fixed iris | $39.00 | View |
| LS-SFC1220IR-5M | dia. 28 x 30.4mm | 5.0 Megapixel | 12 mm | F2.0 Fixed iris | $39.00 | View |
| LS-SFC1620IR-5M | dia. 28 x 29.2mm | 5.0 Megapixel | 16 mm | F2.0 Fixed iris | $39.00 | View |
| LS-SFC2125IR-3M | dia. 28 x 15.1 | 3.0 Megapixel | 2.1 mm | F2.5 Fixed Iris | $39.00 | View |
| LS-SFC2512IR-3M | dia. 28 x 22.5 mm | 3.0 MP | 2.5 mm | F1.2 Fixed Iris | $39.00 | View |
| LS-SFC2524IR-5M | dia. 28 x 32.4 | 5.0 MP | 25 mm | F2.4 fixed iris | $39.00 | View |
| LS-SFC2814IR-3M | dia. 28 x 16.2 mm | 3.0 Megapixel | 2.8 mm | F1.2 Fixed Iris | $39.00 | View |
| LS-SFC2816-10M | dia. 36 x 32.1 mm | 10 Megapixel | 2.8 mm | F1.6 Manual iris | $39.00 | View |
| LS-SFC2826IR-3M | dia. 28 x 17.6 mm | 3.0 Megapixel | 2.8 mm | F2.6 Fixed iris | $39.00 | View |
| LS-SFC3220IR-12M | dia. 28 x 32.1 mm | 12 Megapixel | 3.2 mm | F2.0 Fixed iris | $39.00 | View |
