CCTV lenses
25 mm, 1/2", 5 MP, CS-mount Fixed CCTV Lens (LS-SFC2524IR-5M)
Model LS-SFC2524IR-5M
- Focal length25 mm
- MountCS-mount
- Sensor1/2"
- ApertureF2.4 fixed iris
- Resolution5.0 MP
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.16 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, 1/2", 5 MP, CS-mount Fixed CCTV Lens. 25 mm 1/2" 5 MP CS-mount fixed-iris CCTV lens with IR correction and -1% distortion for surveillance, video conference and special industrial uses. At a glance: focal length 25 mm; format 1/2"; resolution 5.0 MP; aperture F2.4 fixed iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFC2524IR-5M |
|---|---|
| Format | 1/2" |
| IR correction | IR |
| Angle of view (1/2", DxHxV) | 18.8 x 15 x 12 deg |
| Angle of view (1/3", DxHxV) | 14 x 11 x 8.3 deg |
| Angle of view (1/2") | 18.8 x 15 x 12 deg |
| Angle of view (1/3") | 14 x 11 x 8.3 deg |
| T.T.L. | 38.5 mm |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F2.4 fixed iris |
| M.O.D. | 0.3 m |
| Distortion | -1% |
| TTL | 38.5 mm |
Sensor and imaging
| Resolution | 5.0 MP |
|---|
Mechanical

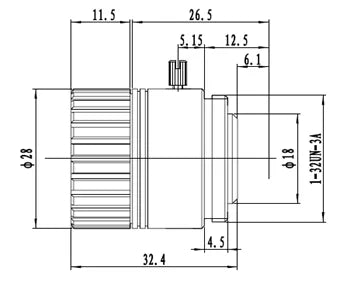

| Size | dia. 28 x 32.4 |
|---|---|
| Mount | CS |
| Weight | 45 g |
| Shipping weight (estimated) | 0.16 kg |
