Machine vision lenses
50 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens (LS-SFA5024-12M)
Model LS-SFA5024-12M
- Focal length50 mm
- Magnification0.192X~∞
- MountC-mount
- Sensor1/1.7"
- ApertureF2.4
- Resolution12.0 Megapixel
$249.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.24 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens. 50 mm F2.4 machine vision (FA) lens for 1/1.7" sensors, rated 12 megapixel (4K and 1080P), with low distortion (<0.03%) for measurement and vision. The large 1/1.7" format also covers 1/1.8", 1/2" and 1/3" cameras in a compact body. At a glance: magnification 0.192X~∞; focal length 50 mm; format 1/1.7"(744mmX5.62 mm); resolution 12.0 Megapixel; aperture F2.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFA5024-12M |
|---|---|
| Format | 1/1.7"(744mmX5.62 mm) |
| Angle of view (1/1.7") | 9.47 x 7.8 x 5.2 ( 29 x 23.1 x 17.5 mm@0.3 m) |
| Angle of view (1/2") | 7.9 x 6.5 x 4.33 ( 24.9 x 19.9 x 15 mm@0.3 m) |
| CRA | <5.4° |
| Elements | 8G |
| B.F.L. | 15.5 mm |
| Angle of view (1/1.7", DxHxV) | 9.47 x 7.8 x 5.2 deg |
| Angle of view (1/2", DxHxV) | 7.9 x 6.5 x 4.33 deg |
| Notes | 8G |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F2.4 |
| M.O.D. | 0.3 m |
| Distortion (TV) | <0.03% @1/1.7" ; <0.02% @1/2" |
| Relative illumination | >97.3% |
| Magnification | 0.192X~∞ |
| Field of view (1/1.7", DxHxV, at 0.3 m) | 29 x 23.1 x 17.5 mm |
| Field of view (1/2", DxHxV, at 0.3 m) | 24.9 x 19.9 x 15 mm |
| Filter thread | M27 x P0.5 |
Sensor and imaging
| Resolution | 12.0 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10°~+50° |
|---|

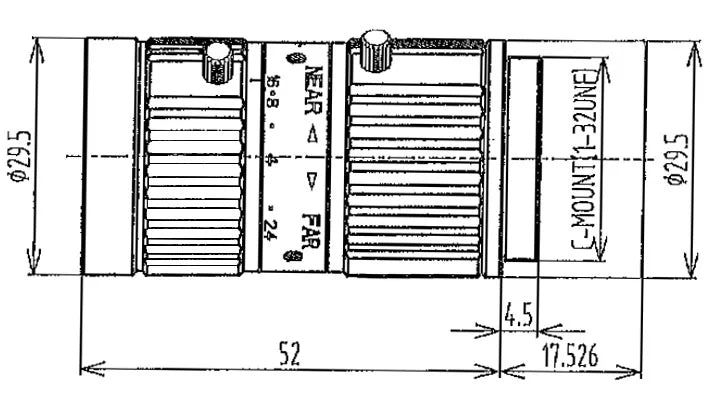

Mechanical
| Filter size | M27 x P0.5 |
|---|---|
| Size | dia. 29 x 41.25 mm |
| Mount | C |
| Weight | 102 g |
| Optical total length | 69.5 mm |
| Shipping weight (estimated) | 0.24 kg |
