40 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens (LS-SFA4028-12M)
Model LS-SFA4028-12M
- Focal length40mm
- MountC-mount
- Sensor1/1.7"
- ApertureF2.8 Manual iris
- Resolution12 Megapixel
$229.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
40 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens. A 40 mm F2.8 manual-iris C-mount machine vision lens for 1/1.7" 12-megapixel cameras, with distortion down to 0.02% for measurement and vision. At a glance: focal length 40mm; format 1/1.7"(dia. 9.5mm); resolution 12 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFA4028-12M |
|---|---|
| Format | 1/1.7"(dia. 9.5mm) |
| Angle of view (1/1.7") | 11.2 x 9 x 7 deg |
| Transmission | AT486~656nm T≥85% |
| CRA | 4.61° |
| Notes | 7G Element |
| Angle of view (1/1.8") | 10.5 x 10 x 7 deg |
| Angle of view (1/1.8", DxHxV) | 10.5 x 10 x 7 deg |
Optics
| Focal length | 40mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.25m |
| Distortion (TV) | Max 0.18% / Min 0.02% (WD=200~400mm) |
| Relative illumination | 82% (H=4.5mm WD=INF) |
| Total track length (TTL) | 56.36mm |
| Back focal length | 24.5mm |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

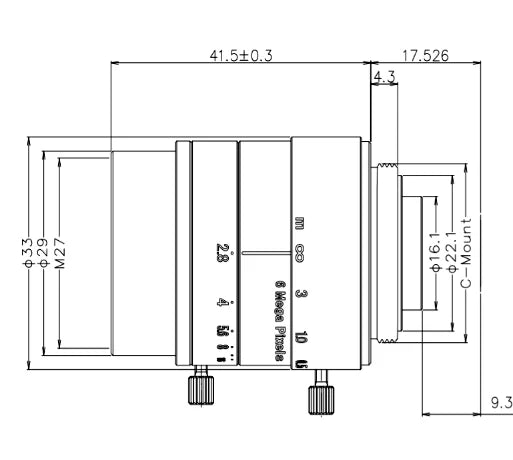

Mechanical
| Size | dia. 33 x 41.5mm |
|---|---|
| Mount | C |
| Weight | 68g |
| Shipping weight (estimated) | 0.20 kg |
