Machine vision lenses
25 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens, 25mm (LS-SFA2528-12M)
Model LS-SFA2528-12M
- Focal length25mm
- MountC-mount
- Sensor1/1.7"
- ApertureF2.8 Manual iris
- Resolution12 Megapixel
$209.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.18 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens. A 25 mm F2.8 manual-iris C-mount machine vision lens for 1/1.7" 12-megapixel cameras, with distortion down to 0.03% for measurement and vision. At a glance: focal length 25mm; format 1/1.7"(dia. 9.5mm); resolution 12 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFA2528-12M |
|---|---|
| Format | 1/1.7"(dia. 9.5mm) |
| Angle of view (1/1.7") | 21 x 17 x 13 deg |
| Transmission | AT486~656nm T≥85% |
| CRA | 7.9° |
| Notes | 6G Element |
| Angle of view (1/1.8", DxHxV) | 22.1 x 18.5 x 12.5 deg |
Optics
| Focal length | 25mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.2m |
| Distortion (TV) | Max 0.17% / Min 0.03% (WD=200~400mm) |
| Filter thread | M27 x P0.5 |
| Relative illumination | 76% (H=4.5mm WD=INF) |
| Total track length (TTL) | 30.2mm |
| Back focal length | 14.2mm |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|
Mechanical

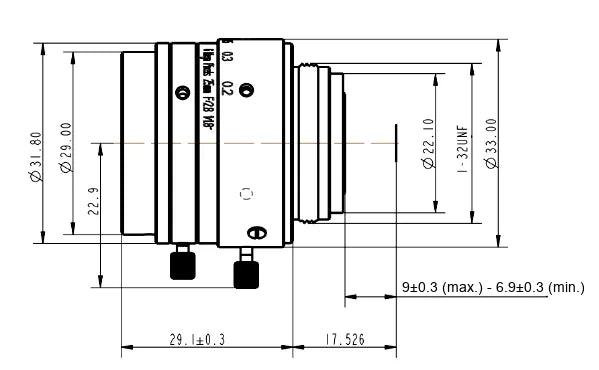

| Size | dia. 33 x 29.1mm |
|---|---|
| Mount | C |
| Weight | 55g |
| Shipping weight (estimated) | 0.18 kg |
