Machine vision lenses
8 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens, 8.0mm (LS-SFA0824-12M)
Model LS-SFA0824-12M
- Focal length8.0mm
- Magnification0.07X~∞
- MountC-mount
- Sensor1/1.7"
- ApertureF2.4
- Resolution12.0 Megapixel
$189.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.26 kg shipping weight
Volume pricing, Net 30 or a formal quote?
8 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens. An 8 mm F2.4 C-mount machine vision lens for 1/1.7" 12-megapixel cameras with <0.61% distortion. At a glance: magnification 0.07X~∞; focal length 8.0mm; format 1/1.7"(744mmX5.62mm); resolution 12.0 Megapixel; aperture F2.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFA0824-12M |
|---|---|
| Format | 1/1.7"(744mmX5.62mm) |
| Angle of view (1/1.7") | 60.8 x 51.4 x 35.4 ( 267 x 201 x 150mm@0.2m) |
| Angle of view (1/2") | 51 x 42.8 x 30 ( 217 x 173 x 130mm@0.2m) |
| CRA | <8° |
| Element 9G / B.F.L | 11.16mm |
| Angle of view (1/1.7", DxHxV) | 60.8 x 51.4 x 35.4 deg |
| Angle of view (1/2", DxHxV) | 51 x 42.8 x 30 deg |
Optics
| Focal length | 8.0mm |
|---|---|
| Aperture | F2.4 |
| M.O.D. | 0.1m |
| Distortion (TV) | <0.61% |
| Filter thread | M27 x P0.5 |
| Relative illumination | >73.9% |
| Magnification | 0.07X~∞ |
| Field of view (1/1.7", DxHxV, at 0.2 m) | 267 x 201 x 150 mm |
| Field of view (1/2", DxHxV, at 0.2 m) | 217 x 173 x 130 mm |
| Back focal length | 11.16 mm |
Sensor and imaging
| Resolution | 12.0 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10°~+50° |
|---|

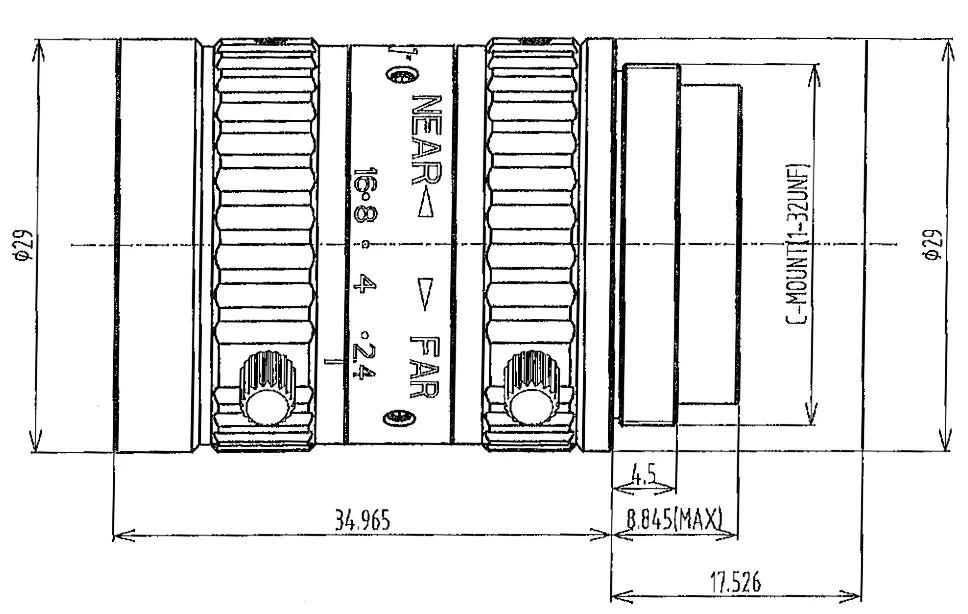

Mechanical
| Size | dia. 29 x 34.96mm |
|---|---|
| Mount | C |
| Weight | 115g |
| Optical total length | 52.49 mm |
| Shipping weight (estimated) | 0.26 kg |
