6 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens, 6.0mm (LS-SFA0624-12M)
Model LS-SFA0624-12M
- Focal length6.0mm
- Magnification0.054X~∞
- MountC-mount
- Sensor1/1.7"
- ApertureF2.4 Manual iris
- Resolution12.0 Megapixel
$189.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
6 mm, 1/1.7", 12 MP, C-mount Machine Vision Lens. A 6 mm F2.4 manual-iris C-mount machine vision lens for 1/1.7" 12-megapixel cameras with <0.32% distortion. At a glance: magnification 0.054X~∞; focal length 6.0mm; format 1/1.7"(744mmX5.62mm); resolution 12.0 Megapixel; aperture F2.4 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFA0624-12M |
|---|---|
| Format | 1/1.7"(744mmX5.62mm) |
| Angle of view (1/1.7") | 75.2 x 65 x 45.7 ( 333 x 266 x 199mm@0.2m) |
| Angle of view (1/2") | 62.6 x 54 x 38.1 ( 286 x 229 x 172mm@0.2m) |
| CRA | <3° |
| Element 11G / B.F.L | 10mm |
| Angle of view (1/1.7", DxHxV) | 75.2 x 65 x 45.7 deg |
| Angle of view (1/2", DxHxV) | 62.6 x 54 x 38.1 deg |
Optics
| Focal length | 6.0mm |
|---|---|
| Aperture | F2.4 Manual iris |
| M.O.D. | 0.1m |
| Distortion (TV) | <0.32% |
| Relative illumination | >49.9% |
| Magnification | 0.054X~∞ |
| Field of view (1/1.7", DxHxV, at 0.2 m) | 333 x 266 x 199 mm |
| Field of view (1/2", DxHxV, at 0.2 m) | 286 x 229 x 172 mm |
| Back focal length | 10 mm |
Sensor and imaging
| Resolution | 12.0 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10°~+50° |
|---|

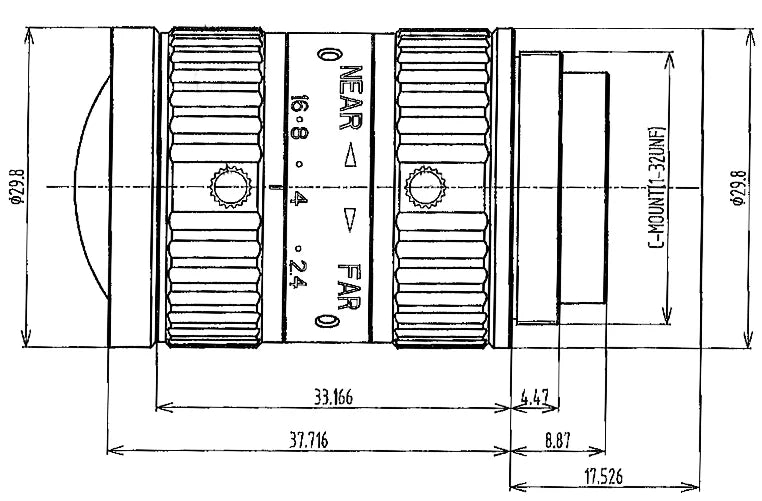

Mechanical
| Size | dia. 29.8 x 37.7mm |
|---|---|
| Mount | C |
| Weight | 145g |
| Shipping weight (estimated) | 0.30 kg |
