Shadowless lights
Ring shadowless light, outer diameter 88 mm (LS-SDL-0101)
Model LS-SDL-0101-R
- ColourRed, Green, Blue, White
- Cable length500 mm
- Outer diameter88 mm
- Inner diameter60 mm
$309.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-SDL-0101: outer diameter 88 mm, inner diameter 60 mm, height 37 mm, power green / blue / white 5.5 W.
The LEDs of the ring shadowless light have a unique structured arrangement; after a special diffuser the light forms an even illumination area directly below the centre of the light, similar to a round shadowless lamp. One of the most widely used lights in machine vision.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0101 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0333, -4T, -6T, -8T |
|---|---|
| Power, green / blue / white (W) | 5.5 |
| Power, red (W) | 5.5 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0333 |
Mechanical
| Outer diameter (mm) | 88 |
|---|---|
| Inner diameter (mm) | 60 |
| Height (mm) | 37 |
| Shipping weight | 0.35 kg |
Engineering data
Drive and fit the LS-SDL-0101
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Current at 24 V229 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 5.5 W
Clear apertureØ 60 mmThe camera looks through this opening; it sets the largest lens front that fits inside the ring.
Cable length500 mm
Mounting and installation
| Cable | 0.5 m |
|---|

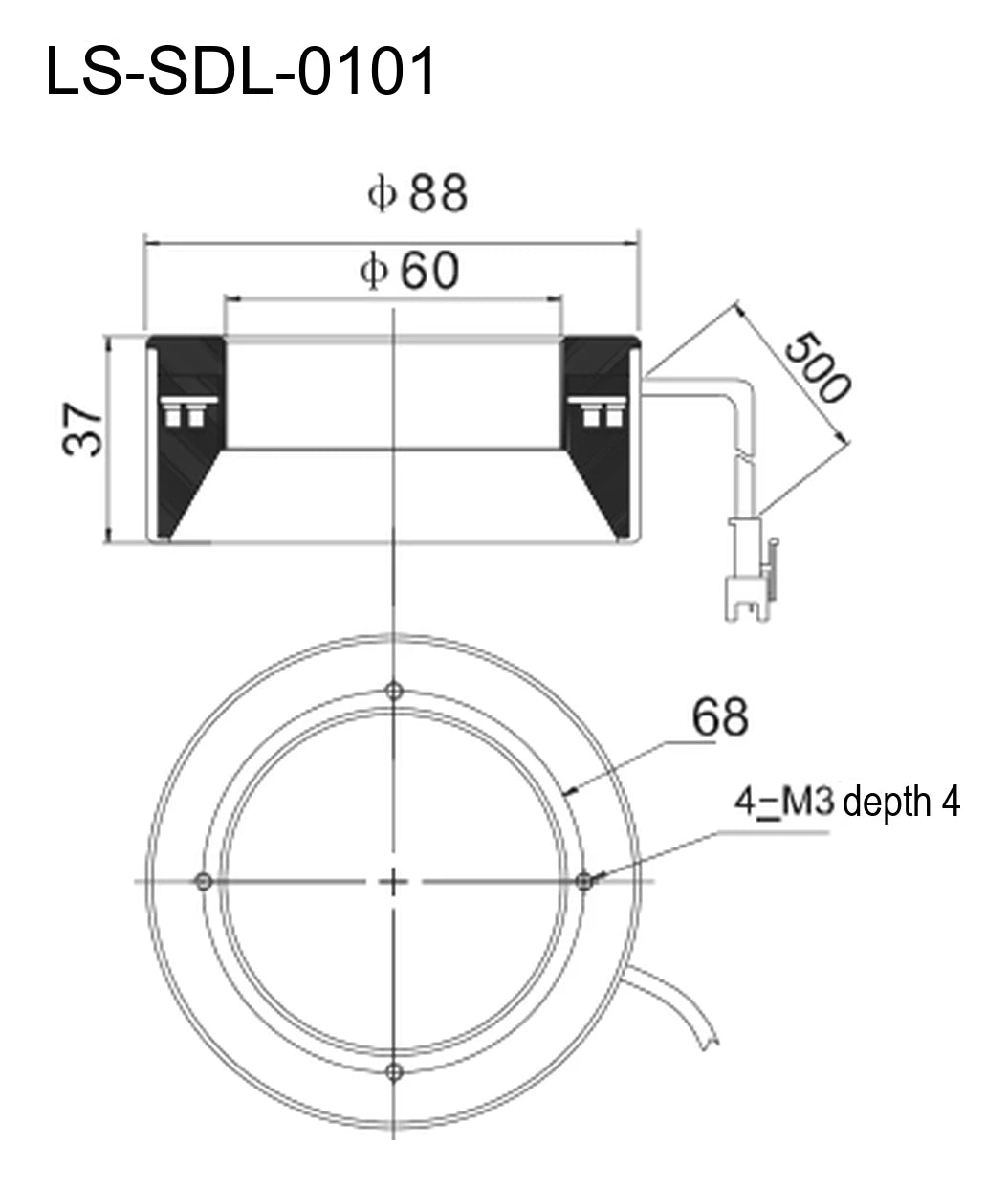

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
Recommended
Same 24 V supply
Recommended
Digital power supply controller, 2 ch, 16~24 V, 2 A per channel
LS-CTL-0333
- Channels 2
- Output 16~24 V
$329.00
Ships in 2-3 weeks
Same 24 V supply
2-channel 24 V digital LED light controller, 20 W, RS-232
LS-CTL-0476
- Channels 2
- Output 24 V
$165.00
Ships in 3-4 weeks
10 W per channel at 24 V for this 5.5 W light
Digital controller, 8 ch, 65 W
LS-CTL-0409
- Channels 8
- Output Constant voltage 24 V
$639.00
Ships in 2-3 weeks
8.1 W per channel at 24 V for this 5.5 W light
Digital controller, 16 ch, 120 W
LS-CTL-0412
- Channels 16
- Output Constant voltage 24 V
$1,019.00
Ships in 2-3 weeks
7.5 W per channel at 24 V for this 5.5 W light
20 W per channel at 24 V for this 5.5 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-SDL-0020, the same type of part
Food, pharma and agriculture
Contamination in blister packs
Reduce glare before searching for a dark speck.LightArch shadowless, 125 × 70 mm emittingExplore the study
Set up with the LS-SDL-0127, the same type of part
Electronics and devices
Chip pockets beneath reflective cover film
Treat cover-film glare as an optical problem before changing the algorithm.Proposed light housing (spec)140 × 140 × 11.5 mmExplore the study
Set up with the LS-SDL-0112, the same type of part
Plastics, rubber and ceramics
Corrugated hose defect
Even ring light makes the ribs repeat, so a mark shows as a break in the pattern.Light in sourceLS-SDL-0112 · whiteExplore the study
Other models in the Ring shadowless light (LS-SDL-S16) series
See all 8 models| Model | Outer diameter | Inner diameter | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-SDL-0101This model | 88 mm | 60 mm | $309.00 | Ships in 2-3 weeks | |
| LS-SDL-0094 | 75.5 mm | 42 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-SDL-0095 | 80 mm | 36 mm | $279.00 | Ships in 2-3 weeks | View |
| LS-SDL-0096 | 100 mm | 66 mm | $359.00 | Ships in 2-3 weeks | View |
| LS-SDL-0097 | 136 mm | 107 mm | $519.00 | Ships in 2-3 weeks | View |
| LS-SDL-0098 | 166 mm | 116 mm | $659.00 | Ships in 2-3 weeks | View |
| LS-SDL-0099 | 196 mm | 146 mm | $819.00 | Ships in 2-3 weeks | View |
| LS-SDL-0100 | 228 mm | 164 mm | $1,009.00 | Ships in 2-3 weeks | View |
