Representative photo of this series
Shadowless lights
Ring shadowless light, outer diameter 136 mm (LS-SDL-0097)
Model LS-SDL-0097
- ColourRed, Green, Blue, White
- Voltage24 V
- Cable length500 mm
- Outer diameter136 mm
$519.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The LEDs of the ring shadowless light have a unique structured arrangement; after a special diffuser the light forms an even illumination area directly below the centre of the light, similar to a round shadowless lamp. One of the most widely used lights in machine vision.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0097 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0333, -4T, -6T, -8T |
|---|---|
| Power, green / blue / white (W) | 10.0 |
| Power, red (W) | 9.0 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0333 |

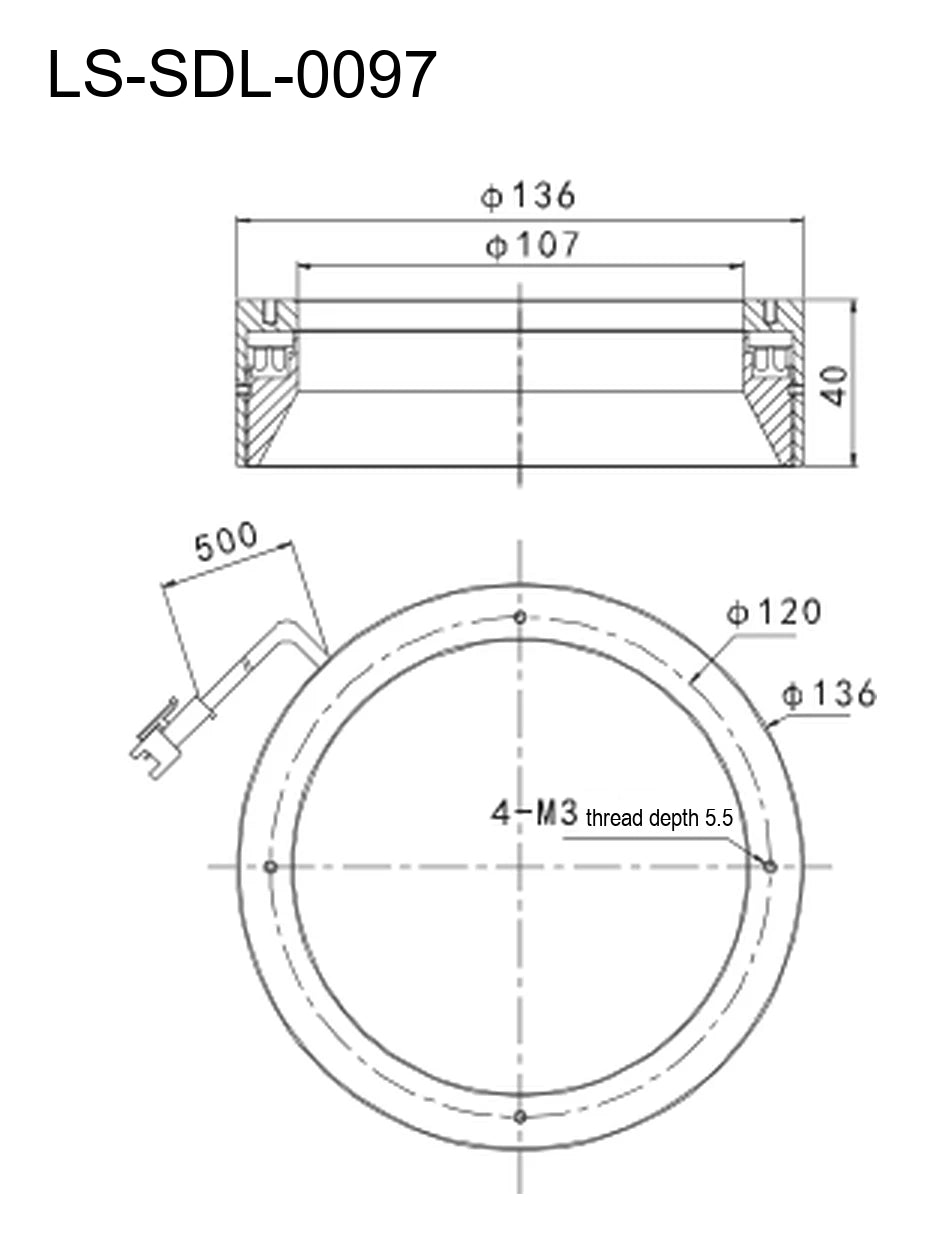

Mechanical
| Outer diameter (mm) | 136 |
|---|---|
| Inner diameter (mm) | 107 |
| Height (mm) | 40 |
| Shipping weight | 0.60 kg |
