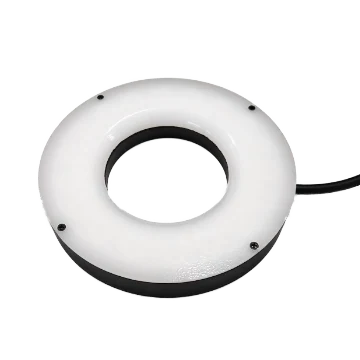

Ring light, 105 mm dia., 90°, Blue (LS-RNG-0421)
  • Ring light, 105 mm dia., 90°, Blue (LS-RNG-0421)

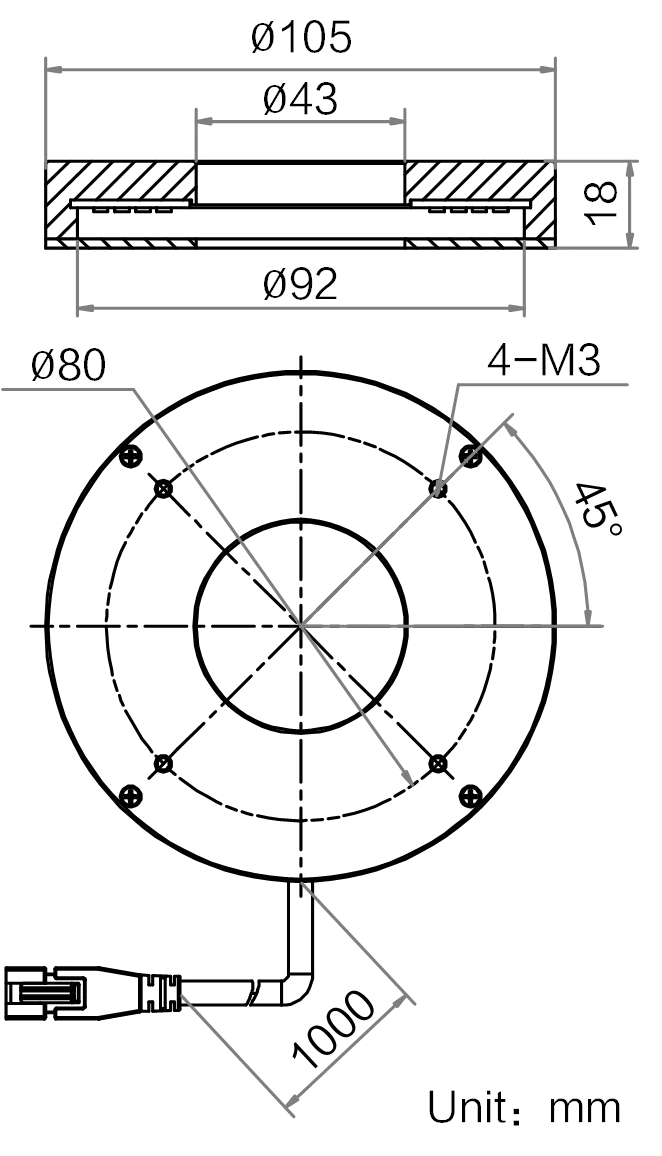

  • LS-RNG-0421 dimensions (mm)

Ring lights

Ring light, 105 mm dia., 90°, Blue (LS-RNG-0421)

Model LS-RNG-0421

  • ColourBlue
  • Emitting areaΦ92 mm
  • SizeΦ105 mm × 18 mm
  • Voltage24 VDC
  • Power12.1 W
  • Wavelength460 nm
$339.00

Ships in 2-3 weeks

0.41 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-rng-0421

Request a quote

Ring light, 105 mm dia., 90°, Blue (LS-RNG-0421)LS-RNG-0421

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-RNG-0421: dimension Φ105 mm x 18 mm, bore dimension Φ43 mm, emitting area length Φ92 mm, irradiation angle 90°, power 12.1 W.

Ring Light, 105 mm dia., 90°, Blue.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

ModelLS-RNG-0421
Irradiation angle90°

Optics

Best working distance90 ~ 120 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorBlue
Center illuminance≥4200 Lux @ WD=100 mm
Wavelength460 nm
Emitting area lengthΦ92 mm
LED rows4
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power12.1 W
Input voltage24 VDC

Mechanical

DimensionΦ105 mm × 18 mm
Outer dimensionΦ105 mm
Bore dimensionΦ43 mm
Weight220 g
Shipping weight (estimated)0.41 kg

Engineering data

Drive and fit the LS-RNG-0421

Current at 24 V504 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 12.1 W
Illuminance per watt≈ 347 lux/WCalculated: 4200 lux ÷ 12.1 W
Center illuminance≥ 4200 luxat WD 100 mm

Mounting and installation

MountingSee the dimension drawing
Cable1 m
ConnectorSMR-03V-B

Compatible parts

Fits with this part

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $847.00

Controllers for this light

This 12.1 W light uses 64 % of one channel (about 18.8 W, from the rated output)

This 12.1 W light uses 60 % of one channel (about 20 W, from the rated output)

This 12.1 W light uses 60 % of one channel (about 20 W, from the rated output)

This 12.1 W light uses 60 % of one 20 W channel

This 12.1 W light uses 55 % of one channel (about 21.9 W, from the rated output)

This 12.1 W light uses 81 % of one channel (about 15 W, from the rated output)

Light cables

Before you buy

Questions about the LS-RNG-0421

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-RNG-0421?

Fit-tested for this 12.1 W light: LS-CTL-0528 (about 18.8 W per channel, about 36 % headroom), LS-CTL-0301 (about 20 W per channel, about 40 % headroom), LS-CTL-0151 (about 20 W per channel, about 40 % headroom) and LS-CTL-0510 (20 W per channel, about 40 % headroom).

What supply voltage and power does the LS-RNG-0421 need?

Input voltage: 24 VDC; Power: 12.1 W. That is about 0.50 A at 12.1 W on 24 V (calculated).

Which cable connects the LS-RNG-0421?

Fit-tested light cables for its connector: LS-LAC-0035, LS-LAC-0020 and LS-LAC-0037.

What lit area and working distance does the LS-RNG-0421 give?

Printed: Best working distance: 90 ~ 120 mm.

What temperature range is the LS-RNG-0421 rated for?

Printed: Temperature: Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F).

Other models in the Angled ring light (LS-RNG-S59) series

See all 139 models

How this model compares

  • Outer diameter 105 mm; next size down 95 mm (LS-RNG-0403), up 120 mm (LS-RNG-0439), of 13 diameters from 45 to 230 mm.
  • Compared with LS-RNG-0422: power 12.1 W here, 11.7 W there; color Blue here, Red there.
ModelColourPowerWavelengthSizePriceAvailabilityLink
LS-RNG-0409Blue13.8 W460 nm105 mm dia., 15°, Blue$339.00 Ships in 2-3 weeks View
LS-RNG-0412Blue13.8 W460 nm105 mm dia., 30°, Blue$339.00 Ships in 2-3 weeks View
LS-RNG-0415Blue13.8 W460 nm105 mm dia., 45°, Blue$339.00 Ships in 2-3 weeks View
LS-RNG-0420White17.3 W105 mm dia., 60°, White$339.00 Ships in 2-3 weeks View
LS-RNG-0419Red11.9 W630 nm105 mm dia., 60°, Red$339.00 Ships in 2-3 weeks View
LS-RNG-0418Blue13.8 W460 nm105 mm dia., 60°, Blue$339.00 Ships in 2-3 weeks View
LS-RNG-0423White16.1 W105 mm dia., 90°, White$339.00 Ships in 2-3 weeks View
LS-RNG-0422Red11.7 W630 nm105 mm dia., 90°, Red$339.00 Ships in 2-3 weeks View
LS-RNG-0421This modelBlue12.1 W460 nm105 mm dia., 90°, Blue$339.00 Ships in 2-3 weeks
