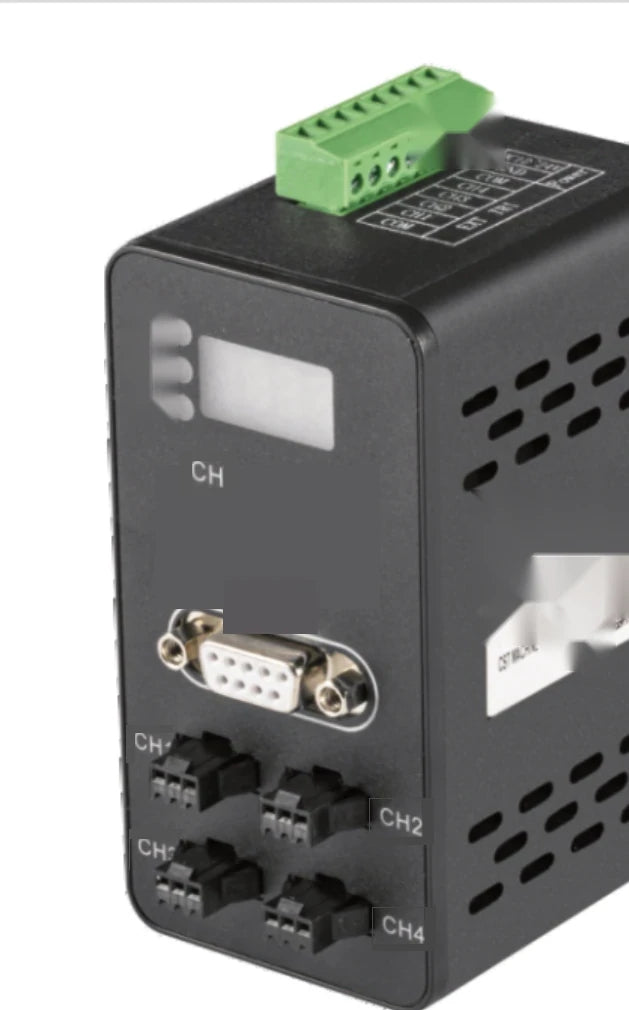

Digital controller, LS-CTL-S104 series, 4 ch, 75 W (LS-CTL-0528)
Model LS-CTL-0528
- Channels4
- Output12~24V (relative to input voltage)
- InputDC12~24V
- Total output75 W
$469.00
Ships in 2-3 weeks
0.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Small, light digital controller with switchable strobe and constant-light modes, optocoupler-isolated external trigger, power-failure memory and overload/short-circuit protection; needs an external power supply.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0528 |
|---|---|
| Drive method | Constant voltage |
| Light control mode | 256 degrees PWM control; panel button / RS232 |
| Cooling method | Natural cooling |
Interfaces and I/O
| External trigger interface | EDG3.81 |
|---|
Environment and compliance
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
|---|---|
| Storage temp/humidity | -20~60 °C, 20~85 %RH (non-condensing) |
Electrical
| Input voltage | DC12~24V |
|---|---|
| Channel | 4 |
| Output voltage | 12~24V (relative to input voltage) |
| Max output current | 3.1A (single channel max current 3A) |
| Total power | 75W |
| Output port | SMP-03V-BC (1: output+, 2: NC, 3: output-) |
| External voltage | DC5V~24V (current about 5.6mA) |
| External trigger delay | Strobe mode <8us, digital mode <25us |
| Trigger port | COM, CH1-CH4, COM, GND, DC12~24V (power input on the same terminal) |
| Channels | 4 |
| Total output (W) | 75 |
Mechanical

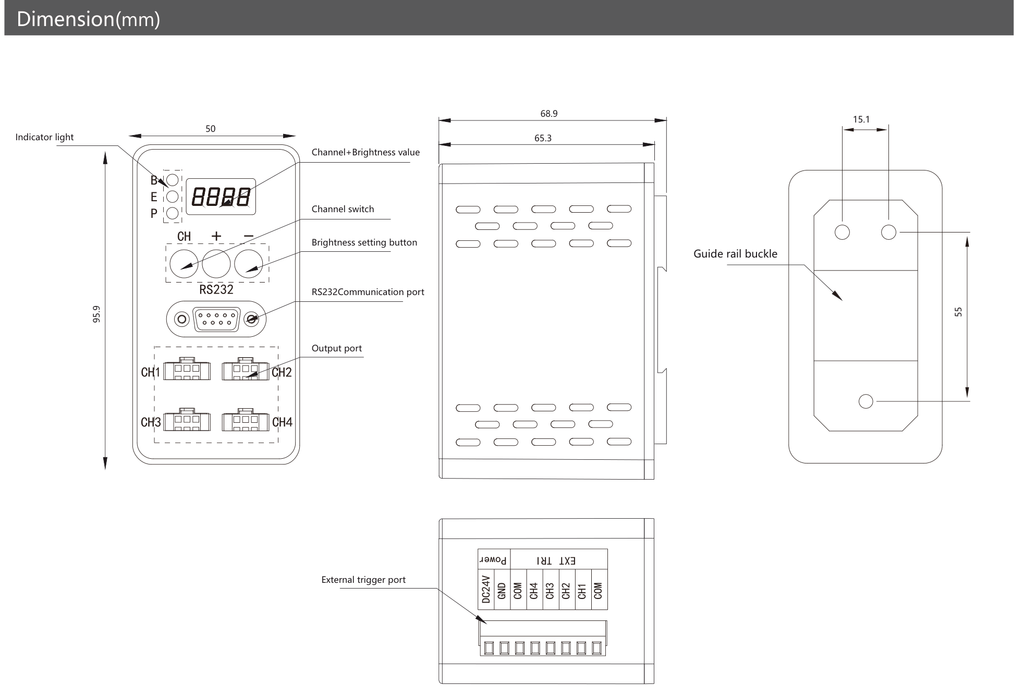

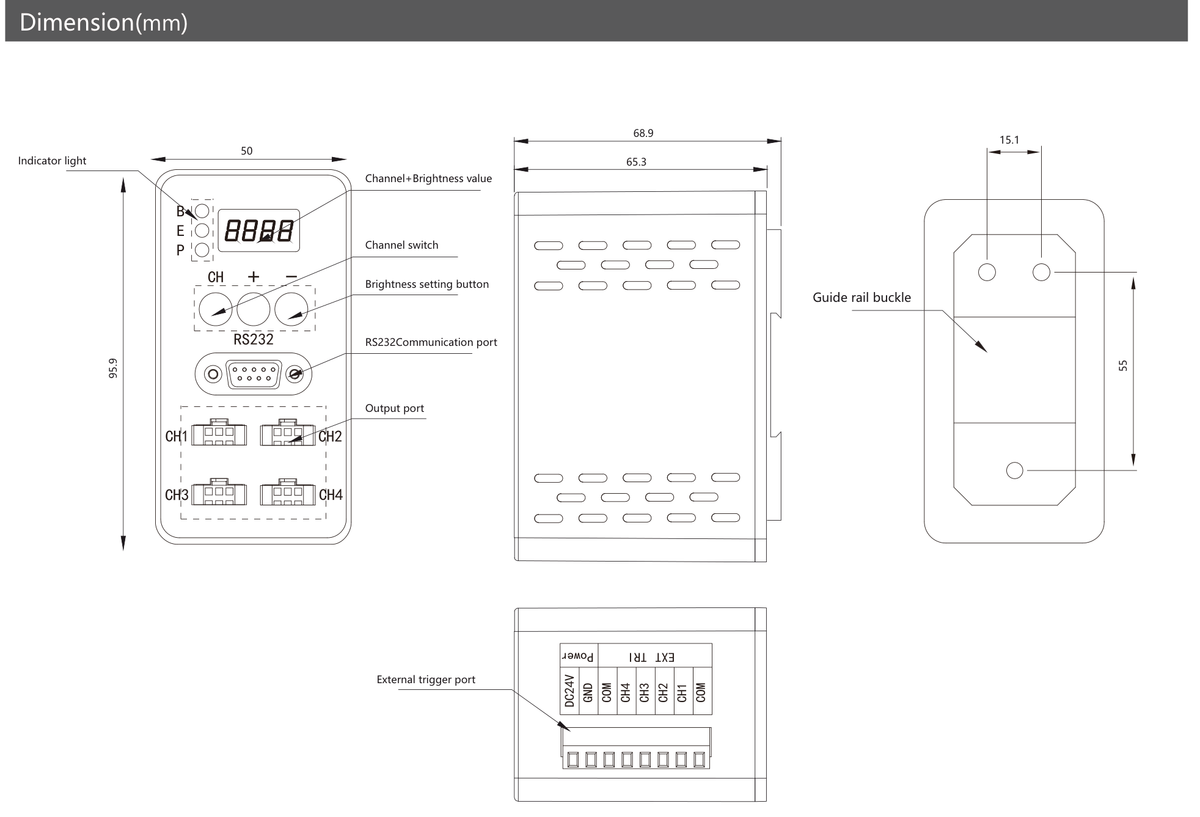

| Dimensions (mm) | 50 W x 95.9 H x 68.9 D (65.3 body) |
|---|---|
| Mounting | DIN rail buckle |
| Shipping weight | 0.30 kg |
