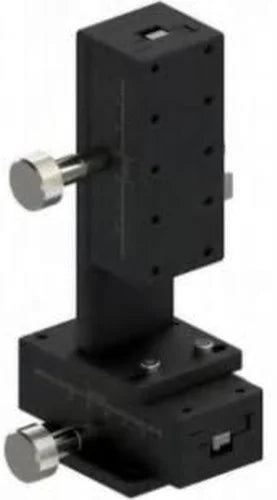

40 x 90 mm manual gear-rack XZ / XYZ stage (LS-MNT-0241)
Model LS-MNT-0241
- MaterialAluminum alloy, anodized
- Travel30 mm
- Load49 N (5 kgf)
- TypeManual slide stages
$269.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
40 x 90 mm manual gear-rack XZ / XYZ stage. Manual gear-rack displacement stages with 40 x 90 mm table. At a glance: travel 30 mm; load 49 N (5 kgf); table size 40 x 90 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0241 |
|---|---|
| Drive | Gear rack, manual |
| Min. scale | 0.1 mm |
| Movement parallelism | <0.3/60 |
| Axis | X/Z |
| Movement | X/Z axis |
Mechanical
| Table size | 40 x 90 mm |
|---|---|
| Travel | 30 mm |
| Load | 49 N (5 kgf) |
| Material | Aluminum alloy, anodized |
| Weight | 0.84 kg |
| Shipping weight (estimated) | 1.28 kg |
