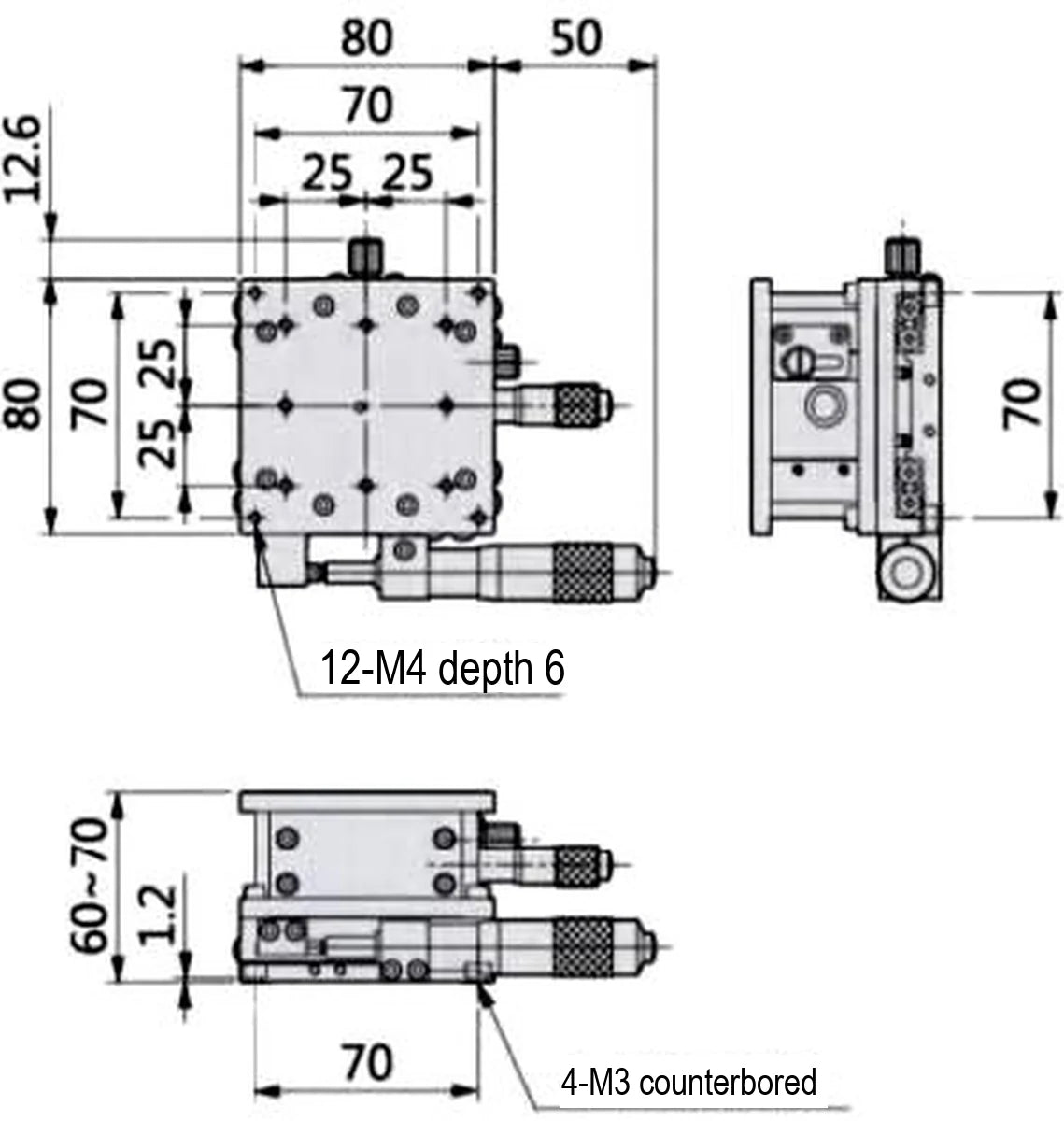

Manual XZ vertical-lift stage, 80 / 90 / 125 mm, 80 mm (LS-MNT-0235)
Model LS-MNT-0235
- MaterialAluminum alloy, anodized
- Load88.2 N (9 kgf)
- TypeManual slide stages
- DriveDifferential head
$269.00
Ships in 2-3 weeks
0.97 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Manual XZ vertical-lift stage, 80 / 90 / 125 mm. Multi-axis combined precision stages with X and vertical-lift Z adjustment. At a glance: load 88.2 N (9 kgf); size 80 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0235 |
|---|---|
| Drive | Differential head |
| Min. scale | 0.01 mm |
Mechanical
| Material | Aluminum alloy, anodized |
|---|---|
| Size | 80 mm |
| Plate size | 80 x 80 mm |
| Travel | X +/-12.5 deg; Z 10 |
| Load | 88.2 N (9 kgf) |
| Weight | 0.62 kg |
| Shipping weight (estimated) | 0.97 kg |
