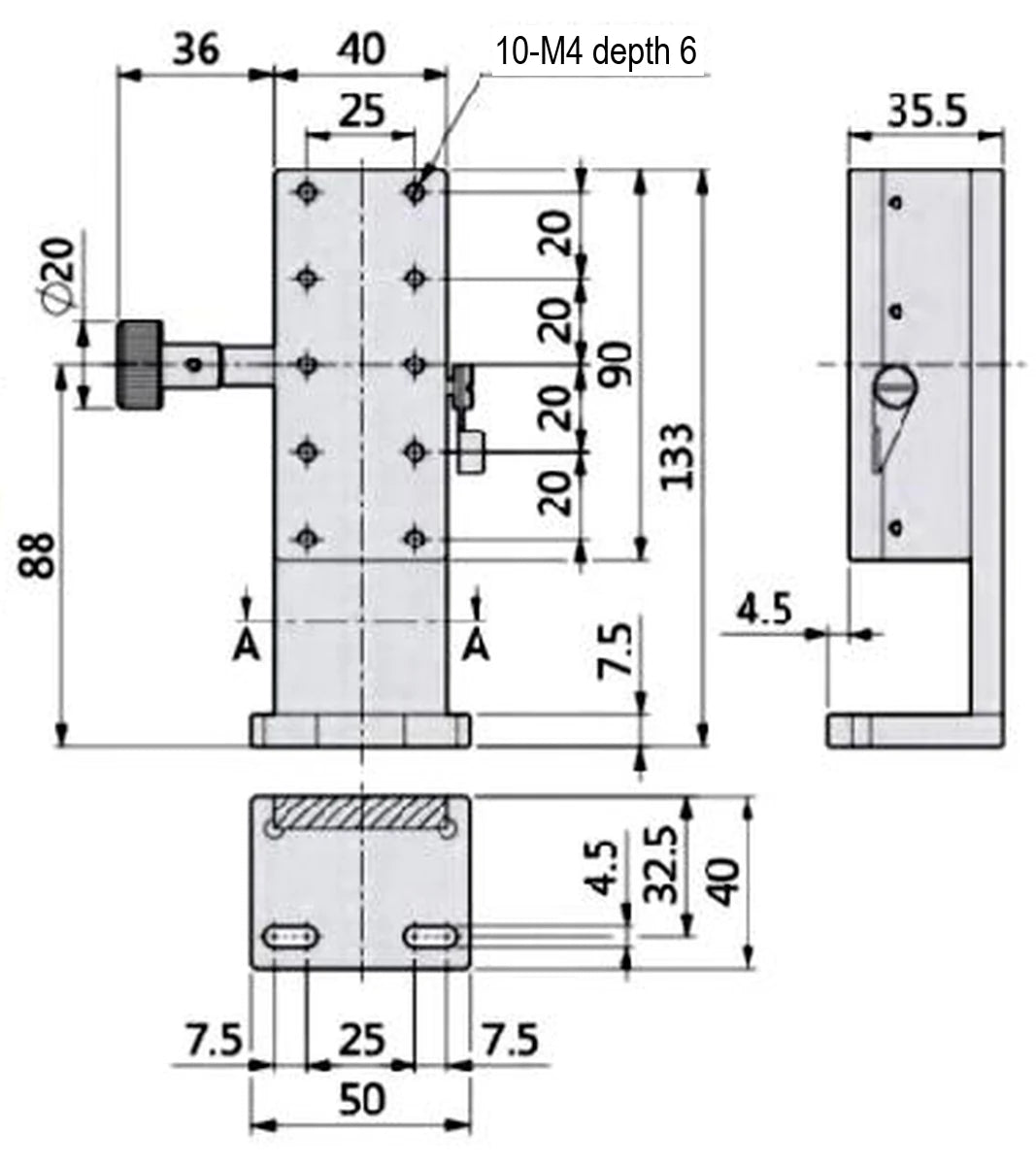

  • LS-MNT-0251 dimensions (mm)

Camera stands

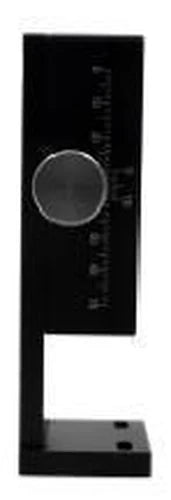

Manual X / Y / Z axis displacement slide stages, travel ±30mm (LS-MNT-0251)

Model LS-MNT-0251

  • MaterialAluminum alloy
  • Travel±30mm
  • Load49N(5kgf)
  • TypeManual slide stages
$269.00

Ships in 2-3 weeks

0.74 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Manual X / Y / Z axis displacement slide stages, travel ±30mm (LS-MNT-0251)LS-MNT-0251

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Manual X / Y / Z axis displacement slide stages. Camera stand brackets and manual / motorized slide plate accessories for automation and vision set-ups. At a glance: travel ±30mm; load 49N(5kgf); table size 40 x 90 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MNT-0251
AxisZ
Min. scale0.01mm
Precision0.04mm
Parallelism0.04mm
MovementZ axis
DriveGear rack, manual
Movement parallelism<0.3/60

Mechanical

Travel±30mm
Load49N(5kgf)
MaterialAluminum alloy
Weight0.46kg
Table size40 x 90 mm
Shipping weight (estimated)0.74 kg
