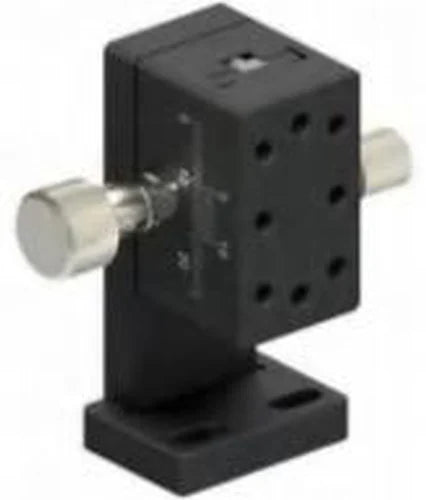

25 x 42 mm manual gear-rack X / XY / Z stage (LS-MNT-0248)
Model LS-MNT-0248
- MaterialAluminum alloy, anodized
- Travel12 mm
- Load24.5 N (2.5 kgf)
- TypeManual slide stages
$269.00
Ships in 2-3 weeks
0.32 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 x 42 mm manual gear-rack X / XY / Z stage. Manual gear-rack displacement stages with 25 x 42 mm table. At a glance: travel 12 mm; load 24.5 N (2.5 kgf); table size 25 x 42 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0248 |
|---|---|
| Drive | Gear rack, manual |
| Min. scale | 0.1 mm |
| Movement parallelism | <0.3/24 |
| Axis | Z |
| Movement | Z axis |
Mechanical
| Table size | 25 x 42 mm |
|---|---|
| Travel | 12 mm |
| Load | 24.5 N (2.5 kgf) |
| Material | Aluminum alloy, anodized |
| Weight | 0.16 kg |
| Shipping weight (estimated) | 0.32 kg |
