Manual XYZ + rotation stage, 40 / 60 mm, 40 mm (LS-MNT-0228)
  • Manual XYZ + rotation stage, 40 / 60 mm, 40 mm (LS-MNT-0228)

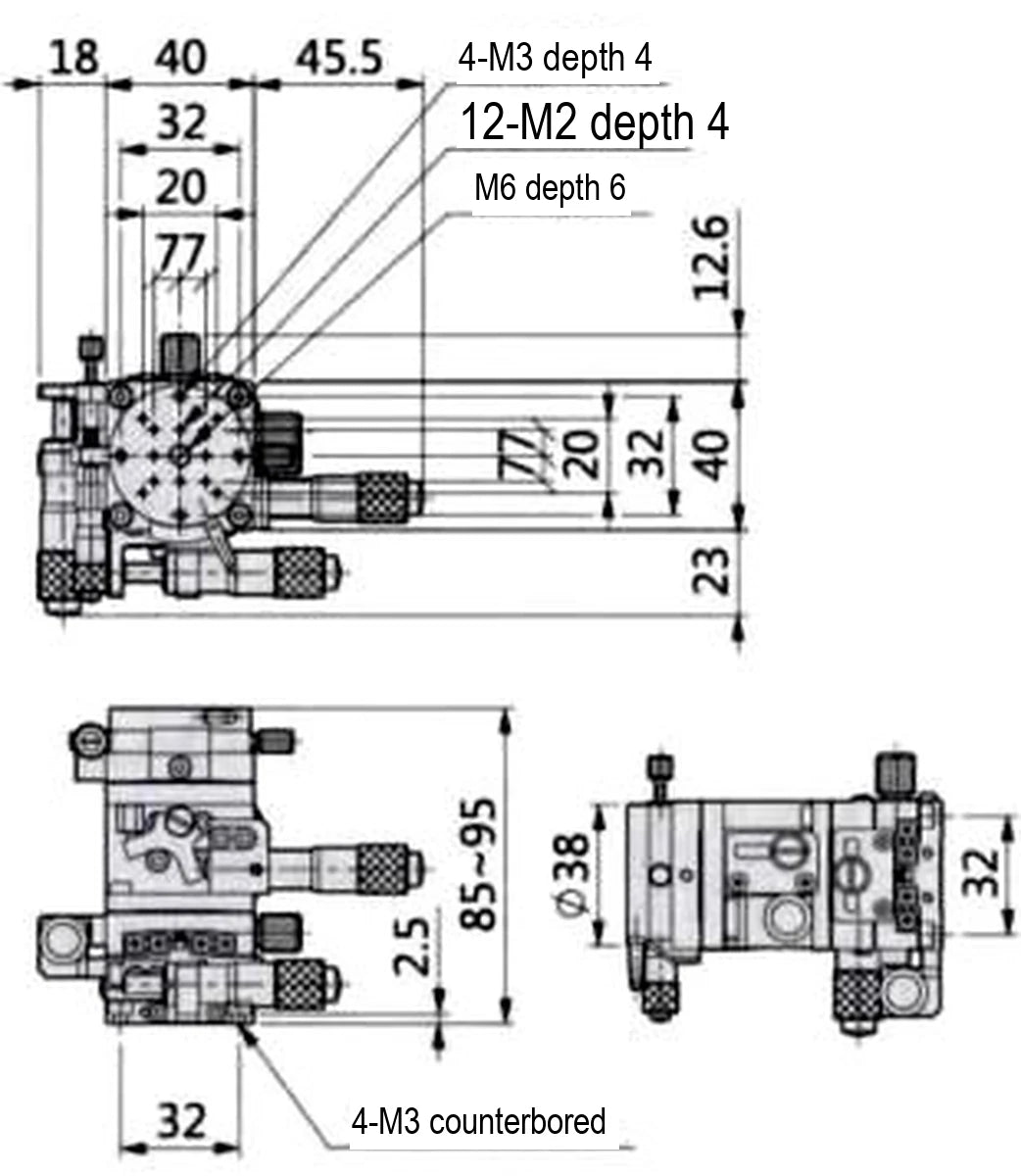

  • LS-MNT-0228 dimensions (mm)

Camera stands

Manual XYZ + rotation stage, 40 / 60 mm, 40 mm (LS-MNT-0228)

Model LS-MNT-0228

  • MaterialAluminum alloy, anodized
  • Load9.8 N (1 kgf)
  • TypeRotary stages
  • DriveDifferential head
$269.00

Ships in 2-3 weeks

0.86 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Manual XYZ + rotation stage, 40 / 60 mm, 40 mm (LS-MNT-0228)LS-MNT-0228

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Manual XYZ + rotation stage, 40 / 60 mm. Multi-axis combined precision stages with XYZ and rotation adjustment by differential heads. At a glance: load 9.8 N (1 kgf); size 40 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MNT-0228
DriveDifferential head
Min. scale0.01 mm
AxisX/Y/Z
TypeMulti-axis precision fine-adjustment plate
MovementX/Y/Z axis

Mechanical

TravelXY +/-6.5 deg; Z 10; rotation 360 deg coarse, +/-5 deg fine
MaterialAluminum alloy, anodized
Size40 mm
Plate sizedia. 38 mm
Load9.8 N (1 kgf)
Weight0.54 kg
Plate40 x 40 mm, round table dia. 38 mm
Table diameter38 mm
Shipping weight (estimated)0.86 kg
