40 x 90 mm manual gear-rack X / XY / Z stage (LS-MNT-0215)
  • 40 x 90 mm manual gear-rack X / XY / Z stage (LS-MNT-0215)

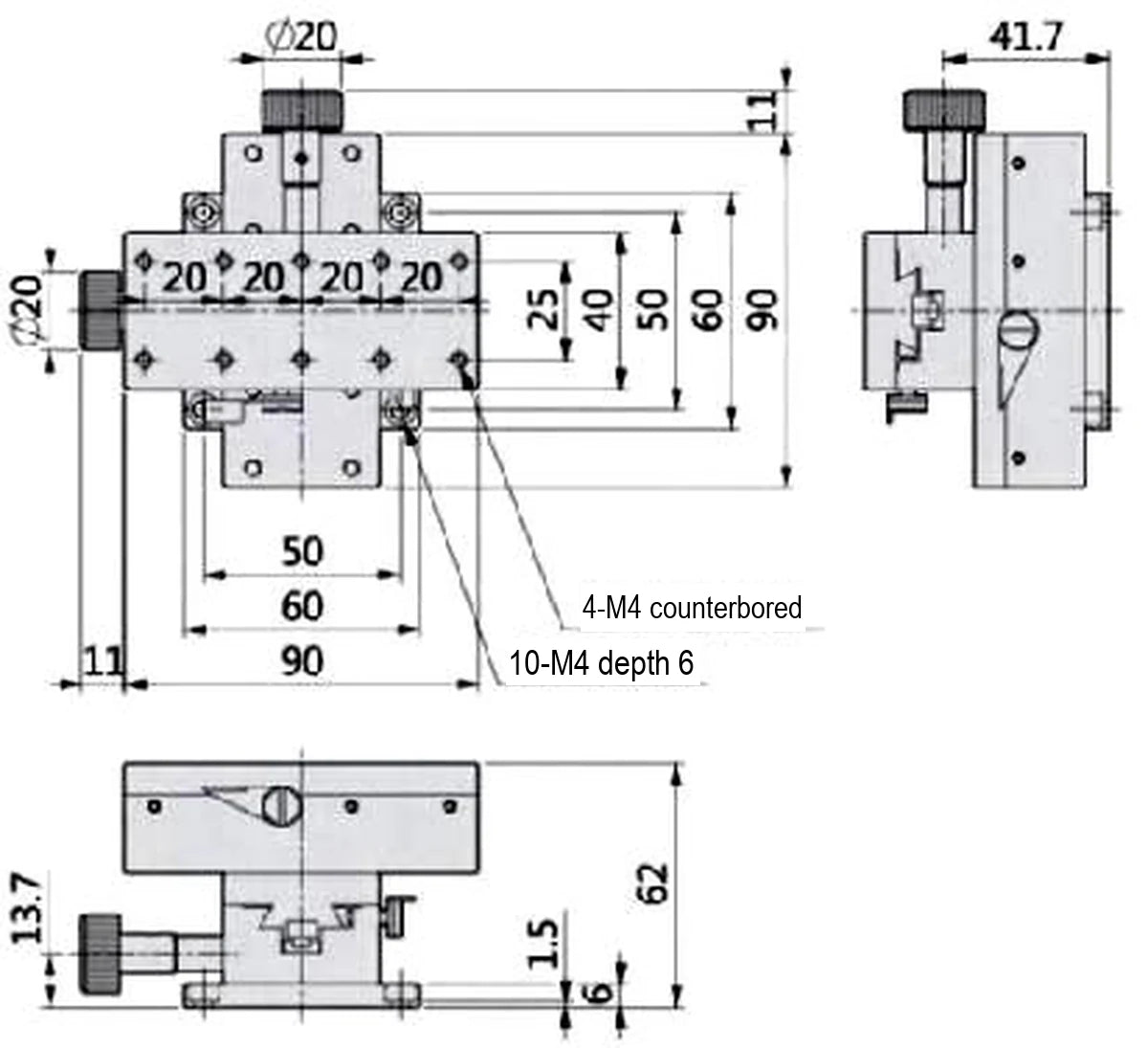

  • LS-MNT-0215 dimensions (mm)

Camera stands

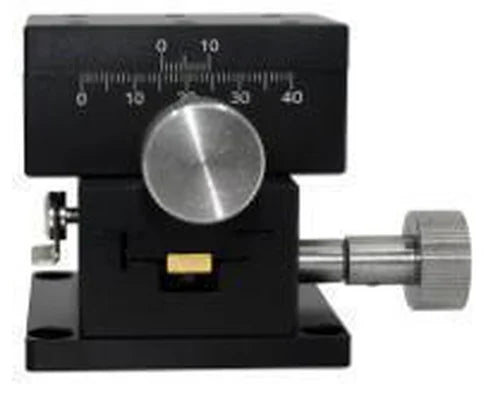

40 x 90 mm manual gear-rack X / XY / Z stage (LS-MNT-0215)

Model LS-MNT-0215

  • MaterialAluminum alloy, anodized
  • Travel30 mm
  • Load49 N (5 kgf)
  • TypeManual slide stages
$269.00

Ships in 2-3 weeks

1.07 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

40 x 90 mm manual gear-rack X / XY / Z stage (LS-MNT-0215)LS-MNT-0215

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

40 x 90 mm manual gear-rack X / XY / Z stage. Manual gear-rack displacement stages with 40 x 90 mm table. At a glance: travel 30 mm; load 49 N (5 kgf); table size 40 x 90 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MNT-0215
DriveGear rack, manual
Min. scale0.1 mm
Movement parallelism<0.3/60
Parallelism0.08
AxisX/Y
MovementX/Y axis

Mechanical

Table size40 x 90 mm
Travel30 mm
Load49 N (5 kgf)
MaterialAluminum alloy, anodized
Table thickness62 mm
Weight0.69 kg
Shipping weight (estimated)1.07 kg
