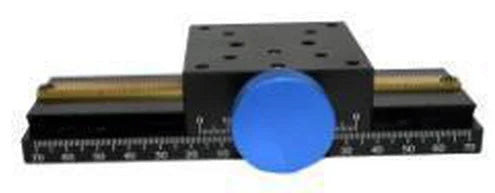

60 mm wide long-rail manual X stage (150 / 250), travel 70 mm (LS-MNT-0205)
Model LS-MNT-0205
- MaterialAluminum alloy, anodized
- Travel70 mm
- TypeManual slide stages
- Table size60 x 90 mm
$269.00
Ships in 2-3 weeks
0.83 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
60 mm wide long-rail manual X stage (150 / 250). Long-distance horizontal X-axis gear-rack stages, 60 mm wide. At a glance: travel 70 mm; table size 60 x 90 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MNT-0205 |
|---|---|
| Drive | Gear rack, manual |
| Parallelism | <0.08 mm |
| Min. scale | 0.1 mm |
| Axis | X |
| Movement | X axis |
Mechanical
| Table size | 60 x 90 mm |
|---|---|
| Material | Aluminum alloy, anodized |
| Travel | 70 mm |
| Weight | 0.52 kg |
| Shipping weight (estimated) | 0.83 kg |
