Manual X / Y / Z axis displacement slide stages, travel ±10mm (LS-X4040)
  • Manual X / Y / Z axis displacement slide stages, travel ±10mm (LS-X4040)

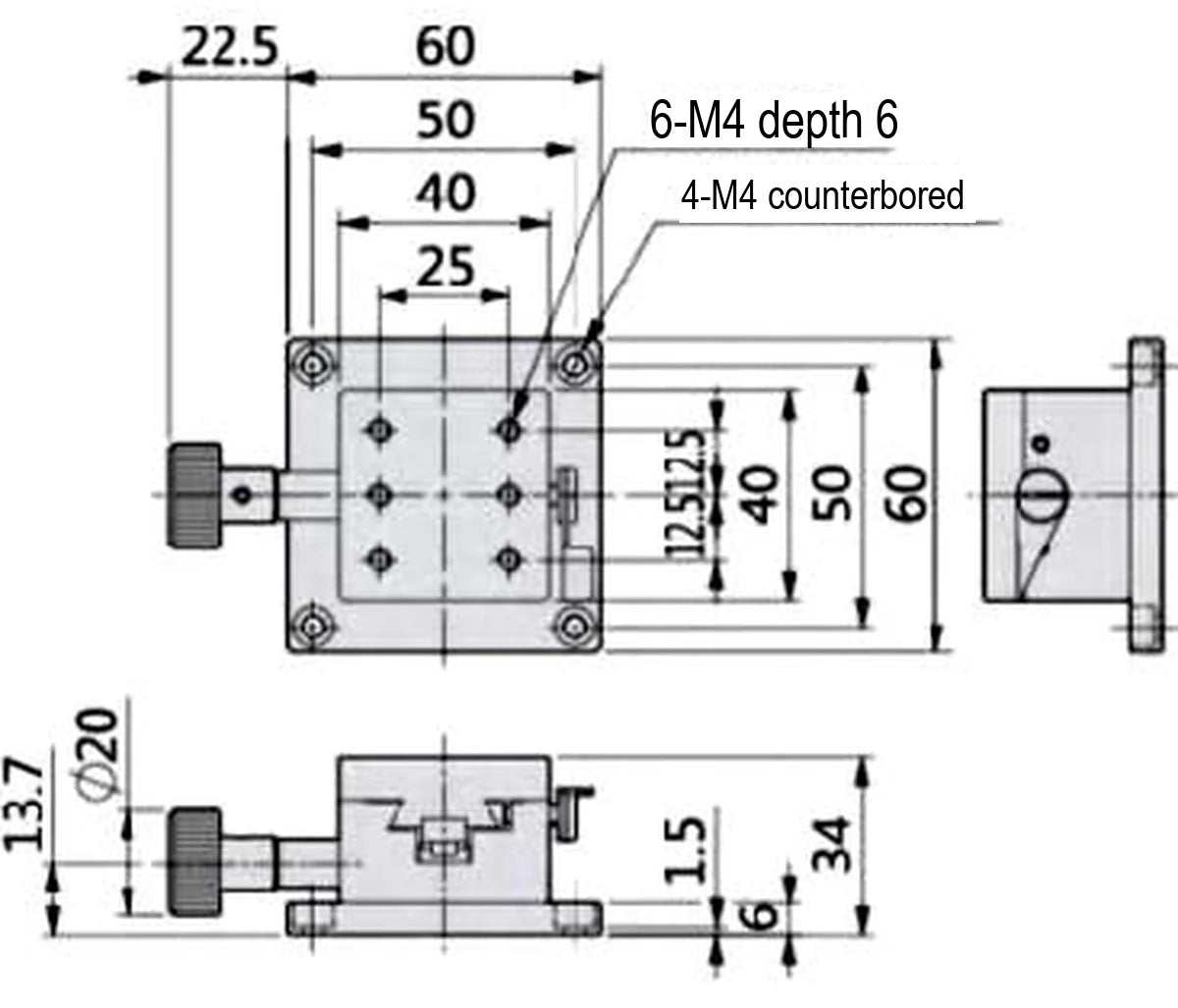

  • LS-X4040 dimensions (mm)

Camera stands

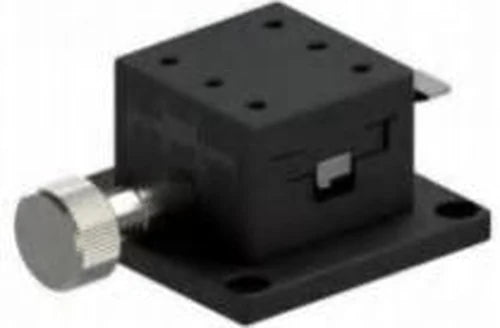

Manual X / Y / Z axis displacement slide stages, travel ±10mm (LS-MNT-0198)

Model LS-MNT-0198

  • MaterialAluminum alloy
  • Travel±10mm
  • Load29.4N(3kgf)
  • TypeManual slide stages
$269.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.41 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Manual X / Y / Z axis displacement slide stages, travel ±10mm (LS-MNT-0198)LS-MNT-0198

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Manual X / Y / Z axis displacement slide stages. Camera stand brackets and manual / motorized slide plate accessories for automation and vision set-ups. At a glance: travel ±10mm; load 29.4N(3kgf); table size 40 x 40 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MNT-0198
AxisX
Min. scale0.01mm
Precision0.03mm
Parallelism0.03mm
MovementX axis
DriveGear rack, manual
Movement parallelism<0.3/24

Mechanical

Travel±10mm
Load29.4N(3kgf)
MaterialAluminum alloy
Weight0.22kg
Table size40 x 40 mm
Table thickness34 mm
Shipping weight (estimated)0.41 kg
