40 x 40 mm long-travel manual X stage (100-300 mm travel), travel 150 mm (LS-MNT-0193)
  • 40 x 40 mm long-travel manual X stage (100-300 mm travel), travel 150 mm (LS-MNT-0193)

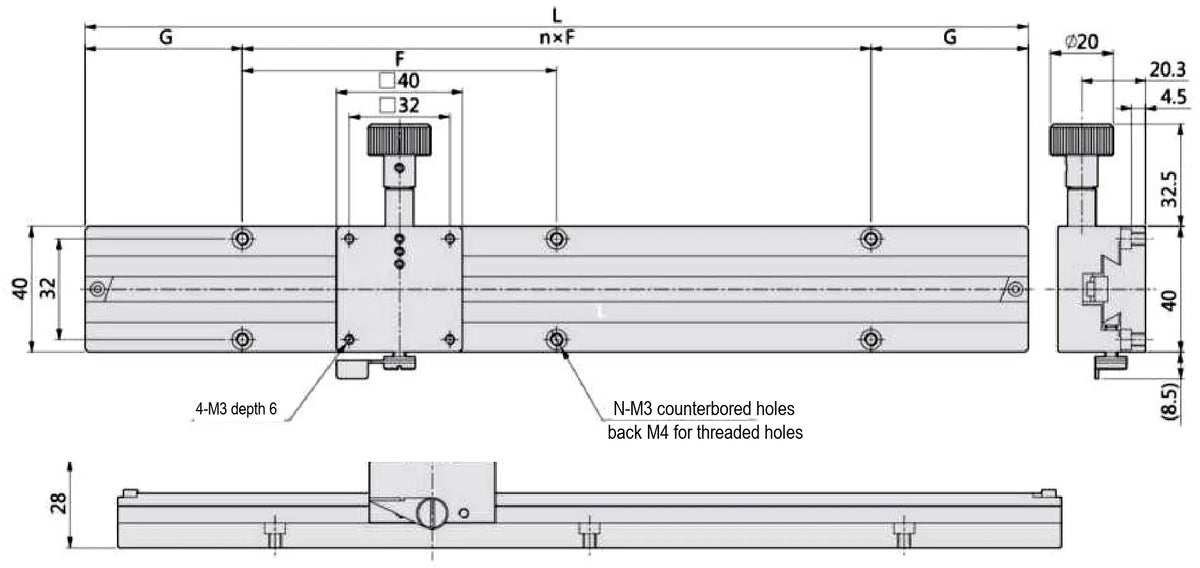

  • LS-MNT-0193 dimensions (mm)

Camera stands

40 x 40 mm long-travel manual X stage (100-300 mm travel), travel 150 mm (LS-MNT-0193)

Model LS-MNT-0193

  • MaterialAluminum alloy, anodized
  • Travel150 mm
  • Load29.4 N (3 kgf)
  • TypeManual slide stages
$269.00

Ships in 2-3 weeks

0.56 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

40 x 40 mm long-travel manual X stage (100-300 mm travel), travel 150 mm (LS-MNT-0193)LS-MNT-0193

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

40 x 40 mm long-travel manual X stage (100-300 mm travel). Long-distance horizontal X-axis gear-rack stages, 40 mm wide, 100 to 300 mm travel. At a glance: travel 150 mm; load 29.4 N (3 kgf); table size 40 x 40 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MNT-0193
DriveGear rack, manual
G25
N x F1x100
N4
Parallelism0.05

Mechanical

Table size40 x 40 mm
Load29.4 N (3 kgf)
MaterialAluminum alloy, anodized
Travel150 mm
Weight0.33 kg
Shipping weight (estimated)0.56 kg
