25 x 42 mm manual gear-rack XZ / XYZ stage (LS-MNT-0223)

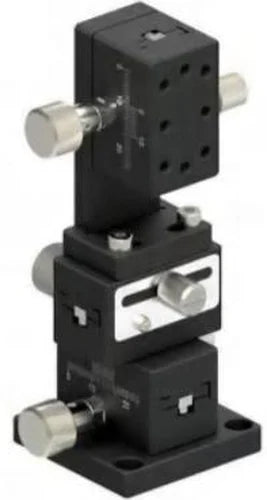

  • 25 x 42 mm manual gear-rack XZ / XYZ stage (LS-MNT-0223)

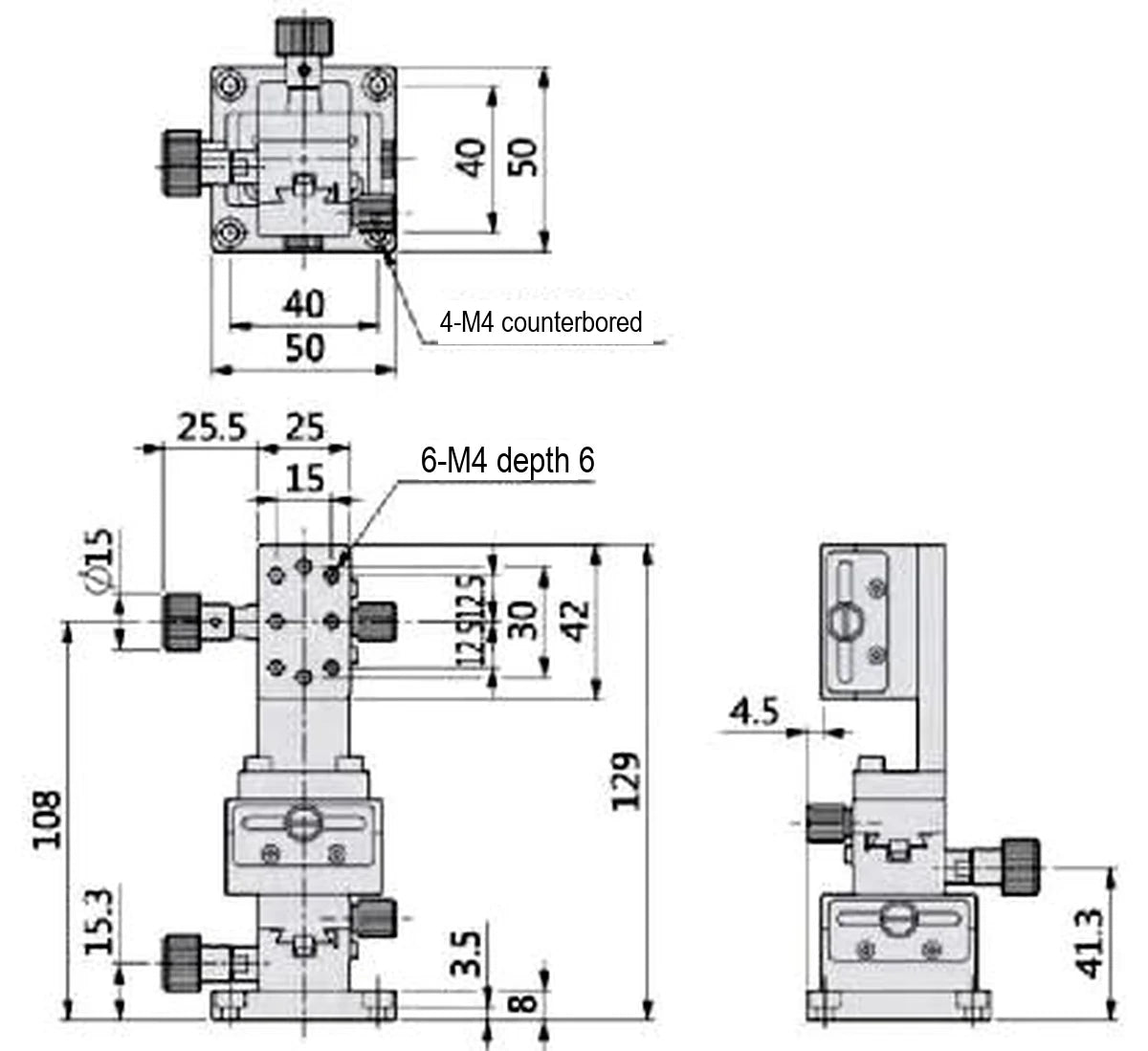

  • LS-MNT-0223 dimensions (mm)

Camera stands

25 x 42 mm manual gear-rack XZ / XYZ stage (LS-MNT-0223)

Model LS-MNT-0223

  • MaterialAluminum alloy, anodized
  • Travel12 mm
  • Load24.5 N (2.5 kgf)
  • TypeManual slide stages
$269.00

Ships in 2-3 weeks

0.77 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 x 42 mm manual gear-rack XZ / XYZ stage (LS-MNT-0223)LS-MNT-0223

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 x 42 mm manual gear-rack XZ / XYZ stage. Manual gear-rack displacement stages with 25 x 42 mm table. At a glance: travel 12 mm; load 24.5 N (2.5 kgf); table size 25 x 42 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MNT-0223
DriveGear rack, manual
Min. scale0.1 mm
Movement parallelism<0.3/24
Parallelism0.06
AxisX/Y/Z
MovementX/Z/Y axis

Mechanical

Table size25 x 42 mm
Travel12 mm
Load24.5 N (2.5 kgf)
MaterialAluminum alloy, anodized
Table thickness60 mm
Weight0.48 kg
Shipping weight (estimated)0.77 kg
