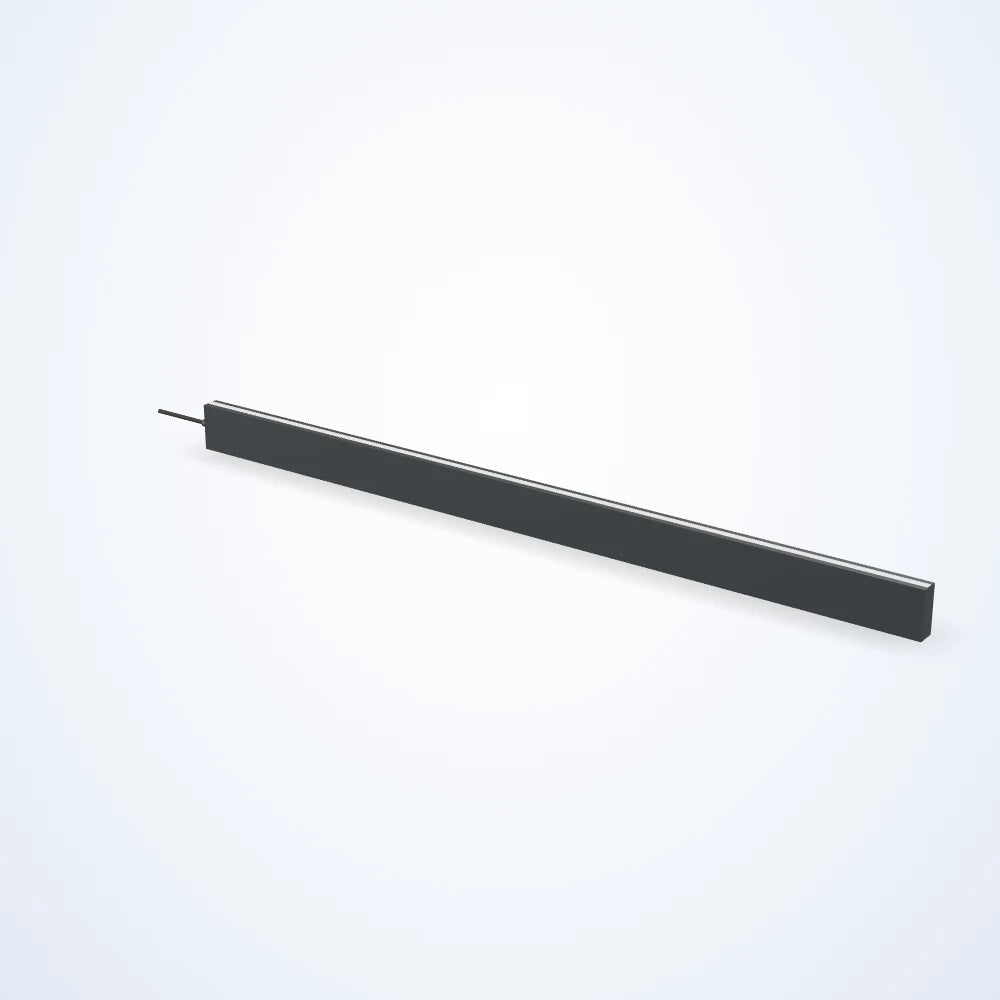

  • Line scan light, 1033 mm lit length (LS-LSC-0017-L23) - view 2

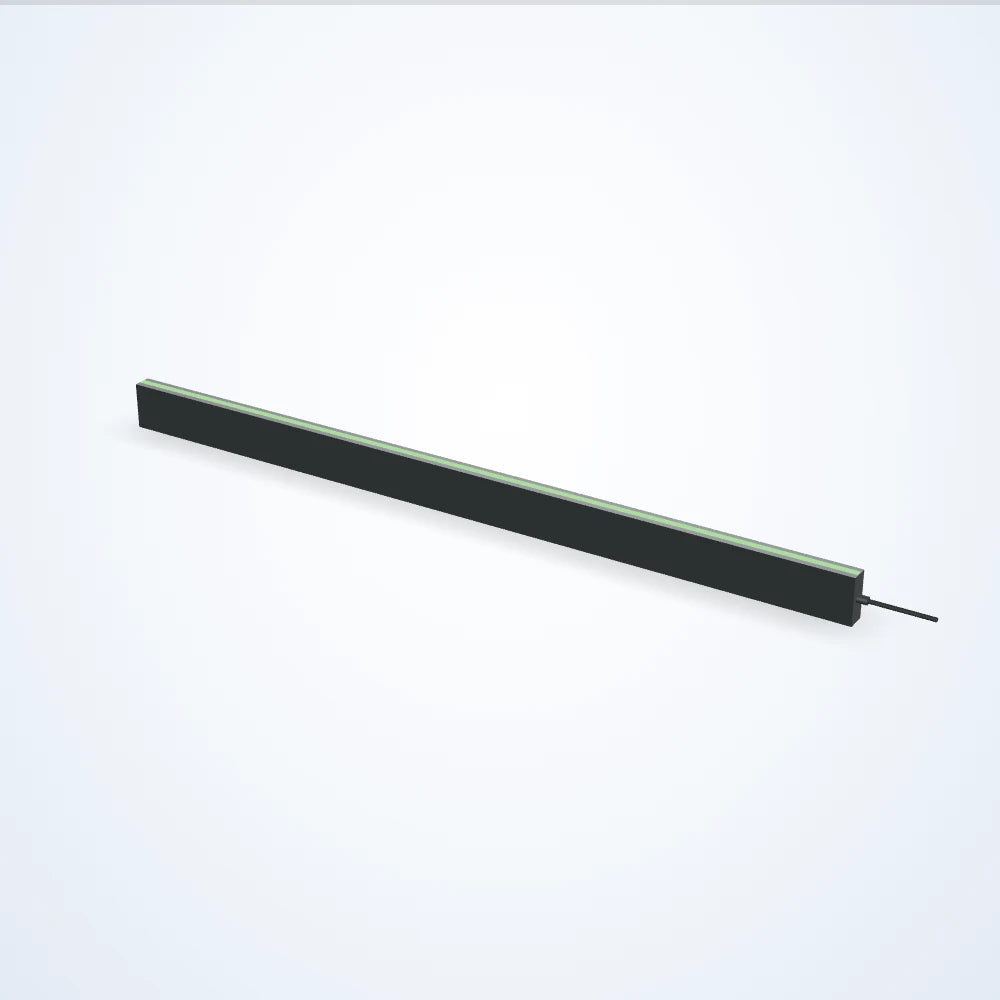

  • Line scan light, 1033 mm lit length (LS-LSC-0017-L23) - view 3

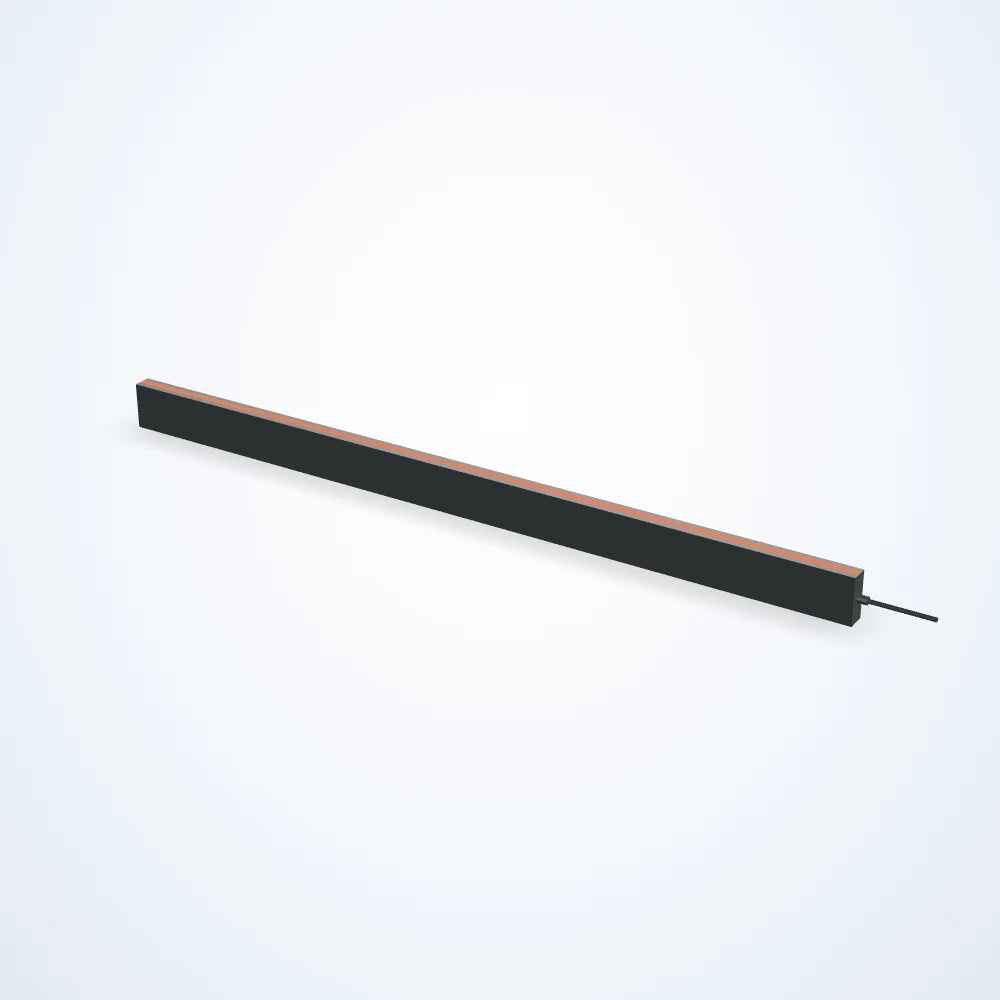

  • Line scan light, 1033 mm lit length (LS-LSC-0017-L23) - view 4
  • Line scan light, 1033 mm lit length (LS-LSC-0017-L23) - view 5

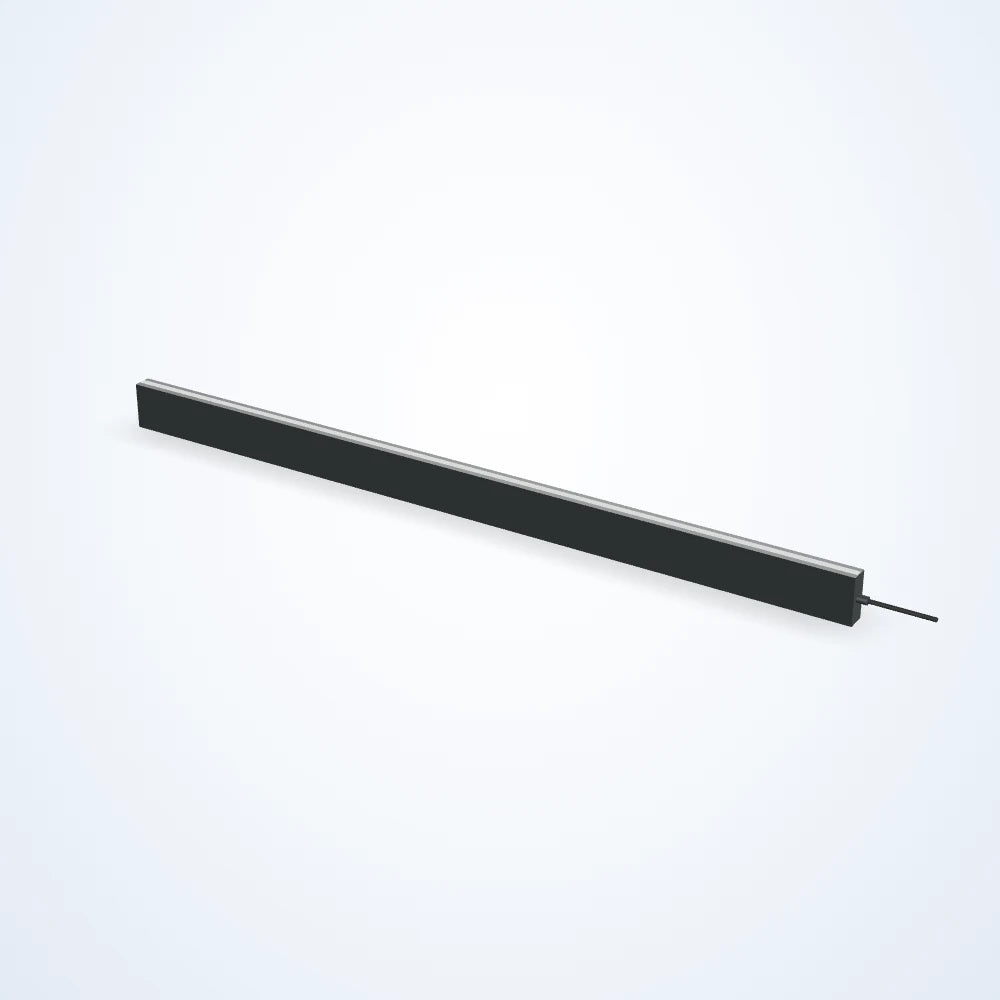

  • Line scan light, 1033 mm lit length (LS-LSC-0017-L23) - view 6

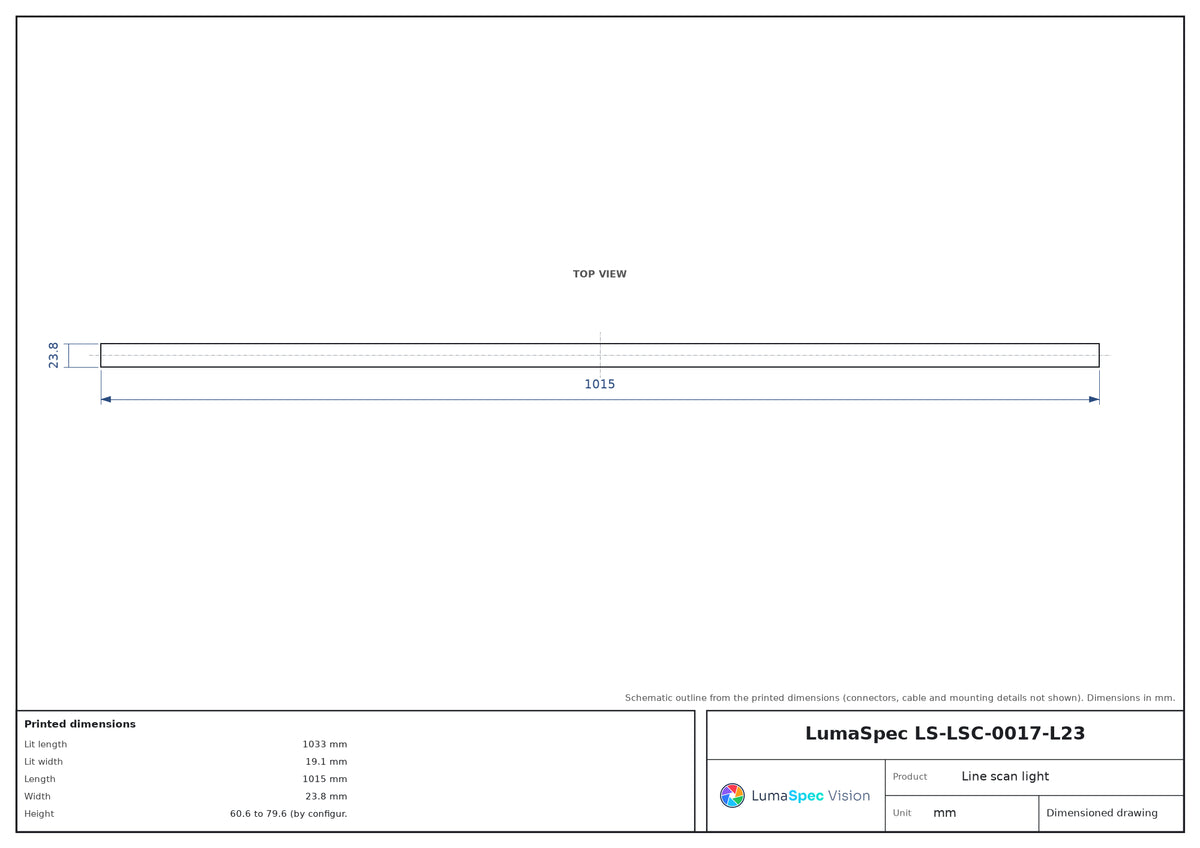

  • LS-LSC-0017-L23 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Line scan lights

Line scan light, 1033 mm lit length (LS-LSC-0017-L23)

Model LS-LSC-0017-L23

  • ColourWhite, Green, Red, Blue
  • Voltage24 VDC
  • Lit length1033 mm
  • Lit width19.1 mm
from $2,639.00 USDList price

Sold by quote: request a quote and we confirm the price, lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 96 available

Colour
Lens / beam angle
Driver included
Driver location
Intensity control
Strobe trigger input
Collimated
Version

Configuration LS-LSC-0017-0597 $3,179.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Line scan light, 1033 mm lit length (LS-LSC-0017-L23)LS-LSC-0017-L23

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 1033 x 19.1 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (96 configurations) and request a quote.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEIEC 62471RoHS

Specifications

General

ModelLS-LSC-0017-L23
Connection at lightHardwired
Maximum duty cycle (%)100
Daisy chainNo
Direct connectNo
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperature0 to 60 °C
IP ratingIP50
ComplianceCE, IEC 62471, RoHS
As declared by the manufacturer

Electrical

Voltage24 VDC
Maximum constant on current (mA)240 / 533 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)5.8 / 12.8 (by configuration)
Maximum input power overcurrent strobe (W)125 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)60 (by configuration)
Minimum overcurrent strobe duration (µs)30 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit length (mm)1033
Lit width (mm)19.1
Length (mm)1015
Width (mm)23.8
Height (mm)60.6 to 79.6 (by configuration)
HousingAluminum
MountingT-Slot Channel

Engineering data

Drive and fit the LS-LSC-0017-L23

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Emitting length1033 mm
Ingress protectionIP50
Operating temperature0 to 60 °C
Cable length2000 mm

Mounting and installation

MountingT-slot / nut channel
Cable2 mFlying leads
ProtectionIP50
HousingAluminum

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

About 300 W per channel at 24 V (from its rated output) for this 125 W light

About 120 W per channel at 24 V (from its rated output) for this 125 W light

200 W per channel at 24 V for this 125 W light

About 300 W per channel at 24 V (from its rated output) for this 125 W light

About 405 W per channel at 24 V (from its rated output) for this 125 W light

About 400 W per channel at 24 V (from its rated output) for this 125 W light

LS-LSC-0017-L23

See this component from every angle.

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.

Explore the visual library
LS-LSC-0017-L23 — Line scan lights, View 1 Dimension-based 3D

FROM THE PRINTED SPECIFICATIONS

Lit length (mm)
1033
Lit width (mm)
19.1
Length (mm)
1015
Width (mm)
23.8

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Line scan light, flying leads, IP50 (LS-LSC-S03) series

See all 49 models
ModelSizeLit lengthPriceAvailabilityLink
LS-LSC-0017-L23This model1033 x 19.1 mm1033 mm$2,639.00 Quote Built to order: ships in about 4-5 weeks
