Flat Backlight with Center Hole, 450 x 320 mm, Blue (LS-BKL-1406)
  • Flat Backlight with Center Hole, 450 x 320 mm, Blue (LS-BKL-1406)
  • LS-BKL-1406 dimensions (mm)

Backlights

Flat Backlight with Center Hole, 450 x 320 mm, Blue (LS-BKL-1406)

Model LS-BKL-1406

  • ColourBlue
  • Emitting area450 mm × 320 mm
  • Size488 mm × 335 mm × 21 mm
  • Voltage24 VDC
  • Power170.5 W
  • Wavelength470 nm
$1,379.00

Ships in 2-3 weeks

4.58 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Flat Backlight with Center Hole, 450 x 320 mm, Blue (LS-BKL-1406)LS-BKL-1406

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-1406: emitting area dimension 450 mm x 320 mm, dimension 488 mm x 335 mm x 21 mm, bore dimension Ø 70 mm, power 170.5 W.

Flat Backlight with Center Hole, 450 x 320 mm, Blue. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1406

Interfaces and I/O

Connector typeDual-channel 19M-2A
Cable length1 m

Light

ColorBlue
Center illuminance/irradiance≥ 3000 lux @ 600 mm
Wavelength470 nm
Emitting area dimension450 mm × 320 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power170.5 W
Input voltage24 VDC

Mechanical

Dimension488 mm × 335 mm × 21 mm
Bore dimensionØ 70 mm
Weight3.2 kg
Shipping weight (estimated)4.58 kg

Engineering data

Drive and fit the LS-BKL-1406

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V7104 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 170.5 W
Emitting area450 × 320 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 40 °C
Cable length1 m
Center illuminance≥ 3000 luxat 600 mm

Mounting and installation

MountingSee the dimension drawing, Hole positions are not given in the written specifications
Cable1 m
ConnectorDual-channel 19M-2A

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

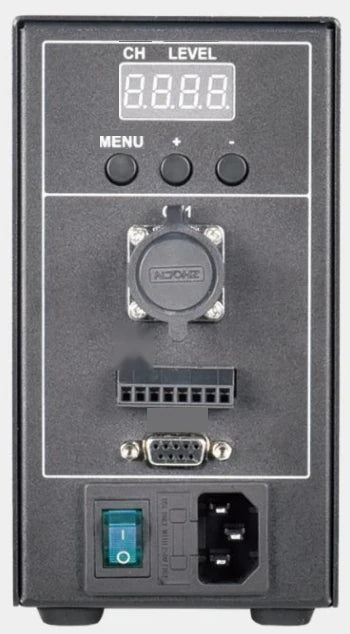

Controllers for this light

240 W per channel at 24 V for this 170.5 W light

200 W per channel at 24 V for this 170.5 W light

200 W per channel at 24 V for this 170.5 W light

200 W per channel at 24 V for this 170.5 W light

200 W per channel at 24 V for this 170.5 W light

250 W per channel at 24 V for this 170.5 W light

Other models in the Flat lights with center hole (LS-BKL-S126) series

See all 53 models
ModelEmitting areaSizePowerPriceAvailabilityLink
LS-BKL-1406This model450 mm × 320 mm488 mm × 335 mm × 21 mm170.5 W$1,379.00 Ships in 2-3 weeks
LS-BKL-1394300 mm × 200 mm332 mm × 213 mm × 19 mm46.7 W$719.00 Ships in 2-3 weeks View
LS-BKL-1396300 mm × 200 mm332 mm × 213 mm × 19 mm45.9 W$719.00 Quote Ships in 2-3 weeks View
LS-BKL-1398300 mm × 200 mm332 mm × 213 mm × 19 mm54.6 W$719.00 Ships in 2-3 weeks View
LS-BKL-1391250 mm × 250 mm282 mm × 263 mm × 19 mm48 W$739.00 Quote Ships in 2-3 weeks View
LS-BKL-1390250 mm × 250 mm282 mm × 263 mm × 19 mm52 W$739.00 Quote Ships in 2-3 weeks View
LS-BKL-1389250 mm × 250 mm282 mm × 263 mm × 19 mm48.3 W$739.00 Ships in 2-3 weeks View
LS-BKL-1392250 mm × 250 mm282 mm × 263 mm × 19 mm42.5 W$739.00 Ships in 2-3 weeks View
LS-BKL-1393250 mm × 250 mm282 mm × 263 mm × 19 mm55.2 W$739.00 Ships in 2-3 weeks View
LS-BKL-1399300 mm × 300 mm338 mm × 315 mm × 21 mm65.2 W$969.00 Ships in 2-3 weeks View
LS-BKL-1400300 mm × 300 mm338 mm × 315 mm × 21 mm60.2 W$969.00 Ships in 2-3 weeks View
LS-BKL-1401300 mm × 300 mm338 mm × 315 mm × 21 mm81.6 W$969.00 Ships in 2-3 weeks View
LS-BKL-1404400 mm × 300 mm438 mm × 315 mm × 21 mm83 W$1,209.00 Quote Ships in 2-3 weeks View
LS-BKL-1402400 mm × 300 mm438 mm × 315 mm × 21 mm75 W$1,209.00 Ships in 2-3 weeks View
LS-BKL-1403400 mm × 300 mm438 mm × 315 mm × 21 mm63.4 W$1,209.00 Ships in 2-3 weeks View
LS-BKL-1405400 mm × 300 mm438 mm × 315 mm × 21 mm92.1 W$1,209.00 Ships in 2-3 weeks View
LS-BKL-1408450 mm × 320 mm488 mm × 335 mm × 21 mm198 W$1,379.00 Quote Ships in 2-3 weeks View
LS-BKL-1407450 mm × 320 mm488 mm × 335 mm × 21 mm162.1 W$1,379.00 Ships in 2-3 weeks View
LS-BKL-1409450 mm × 320 mm488 mm × 335 mm × 21 mm218.3 W$1,379.00 Ships in 2-3 weeks View
LS-BKL-1410600 mm × 400 mm676 mm × 430 mm × 25 mm152.3 W$1,549.00 Ships in 2-3 weeks View
LS-BKL-1411600 mm × 400 mm676 mm × 430 mm × 25 mm137.3 W$1,549.00 Ships in 2-3 weeks View
LS-BKL-1412600 mm × 400 mm676 mm × 430 mm × 25 mm194 W$1,549.00 Ships in 2-3 weeks View
LS-BKL-1413620 mm × 620 mm696 mm × 650 mm × 25 mm233.9 W$2,339.00 Ships in 2-3 weeks View
LS-BKL-1414620 mm × 620 mm696 mm × 650 mm × 25 mm237.1 W$2,339.00 Ships in 2-3 weeks View
LS-BKL-1415620 mm × 620 mm696 mm × 650 mm × 25 mm298.8 W$2,339.00 Ships in 2-3 weeks View
