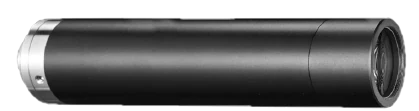

Quasi-Telecentric Lens, 0.25x, 415 mm WD, 4/3" (LS-KY-025-415)
Model LS-KY-025-415
- Magnification0.25
- MountC-mount
- Sensor4/3"
- Working distance415 mm
- ApertureF24.6
$4,669.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.66 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Object-Side Telecentric Lens, 0.25x, 415 mm WD, 4/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 4/3"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KY-025-415 |
|---|
Optics
| Magnification | 0.25 |
|---|---|
| Working distance | 415 mm |
| Image size | 4/3" |
| F-number | F24.6 |
| Depth of field | 31.5 mm |
| Distortion | ≤ 0.35% |
| Object-side resolution | 66 μm |
| Object-side telecentricity | Non-telecentric |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

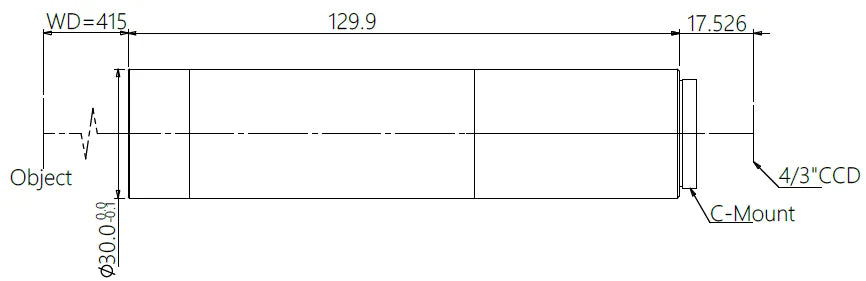

| Dimension | 129.9 mm × Φ30 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
