Telecentric lenses

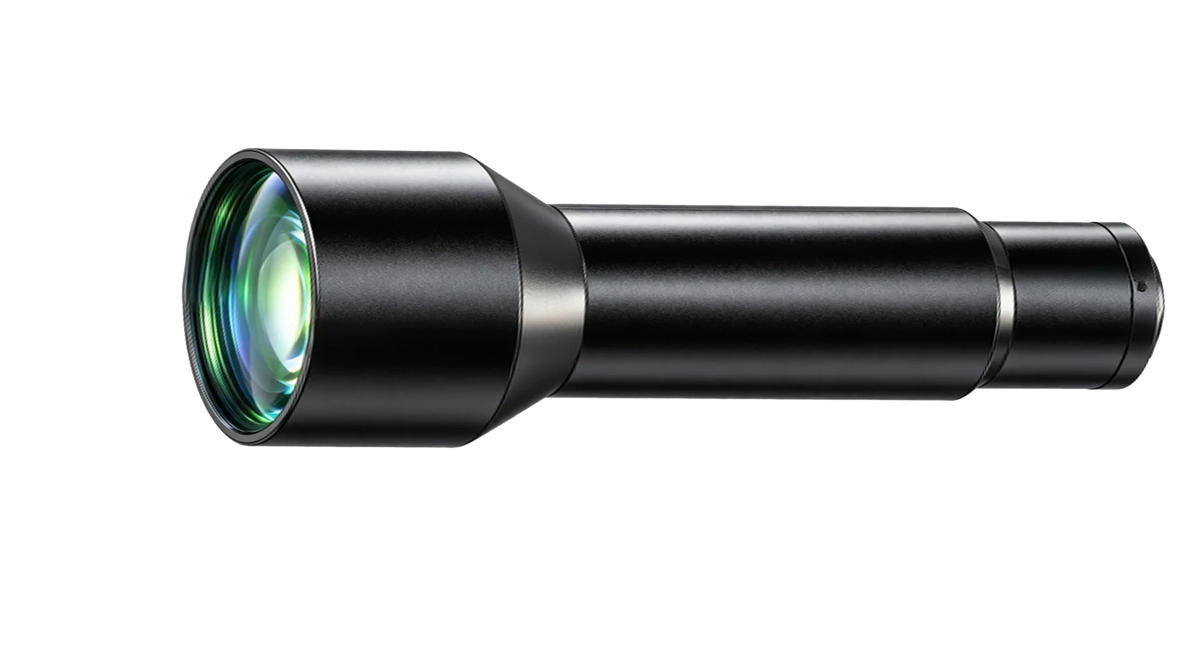

Object-Side Telecentric Lens, 0.42x, 285 mm WD, 1" (LS-KT10-042-285)
Model LS-KT10-042-285
- Magnification0.42
- MountC-mount
- Sensor1"
- Working distance285 mm
- ApertureF7
$2,889.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.66 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Object-Side Telecentric Lens, 0.42x, 285 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KT10-042-285 |
|---|
Optics
| Magnification | 0.42 |
|---|---|
| Working distance | 285 mm |
| Image size | 1" |
| F-number | F7 |
| Depth of field | ±1.6 mm @F7 |
| Distortion | ≤ 0.05% |
| Object-side resolution | 11.2 μm |
| Object-side telecentricity | ≤ 0.04° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

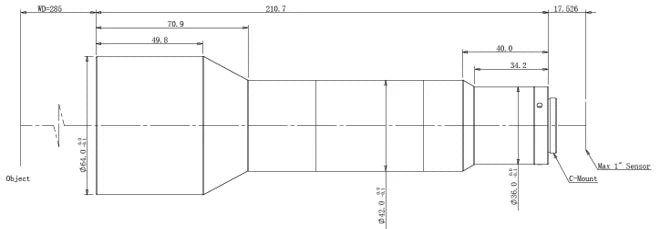

| Dimension | 210.7 mm × Φ64 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
