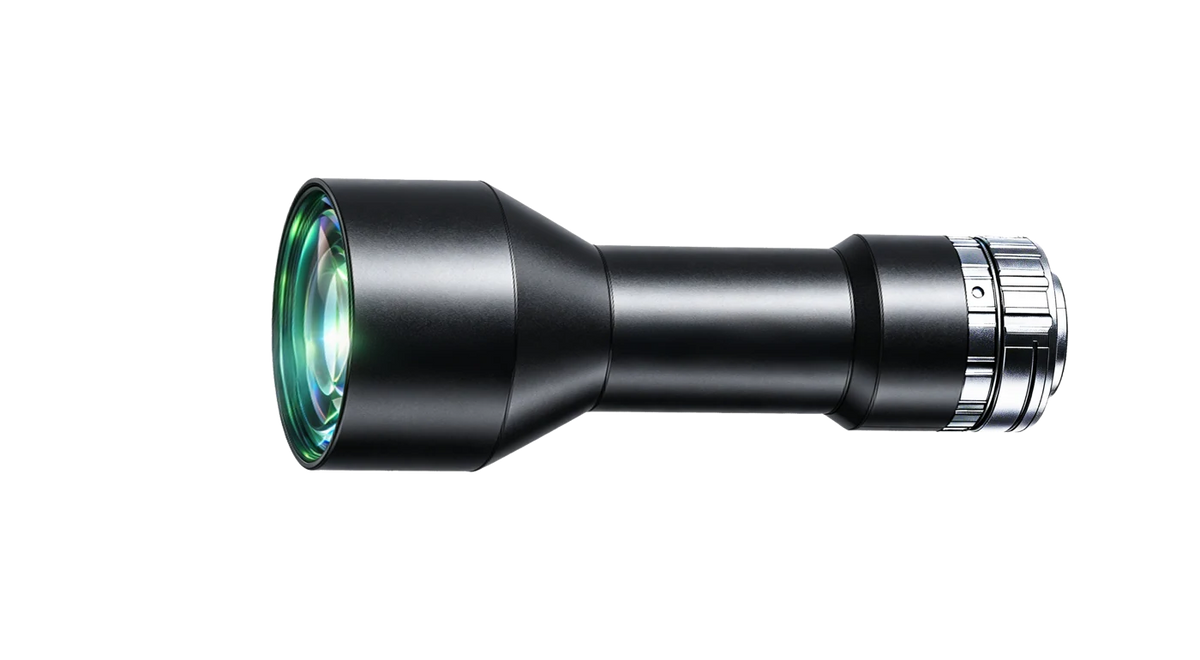

Object-Side Telecentric Lens, 0.36x, 291 mm WD, 1", coaxial light port (LS-KT-036-291)
Model LS-KT-036-291
- Magnification0.36
- MountC-mount
- Sensor1"
- Working distance291 mm
- ApertureF7.5
$2,609.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.66 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Object-Side Telecentric Lens, 0.36x, 291 mm WD, 1", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KT-036-291 |
|---|
Optics
| Magnification | 0.36 |
|---|---|
| Working distance | 291 mm |
| Image size | 1" |
| F-number | F7.5 |
| Depth of field | ±2.3 mm @F7.5 |
| Distortion | ≤ 0.06% |
| Object-side resolution | 14 μm |
| Object-side telecentricity | ≤ 0.5° |
| Coaxial light | Supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

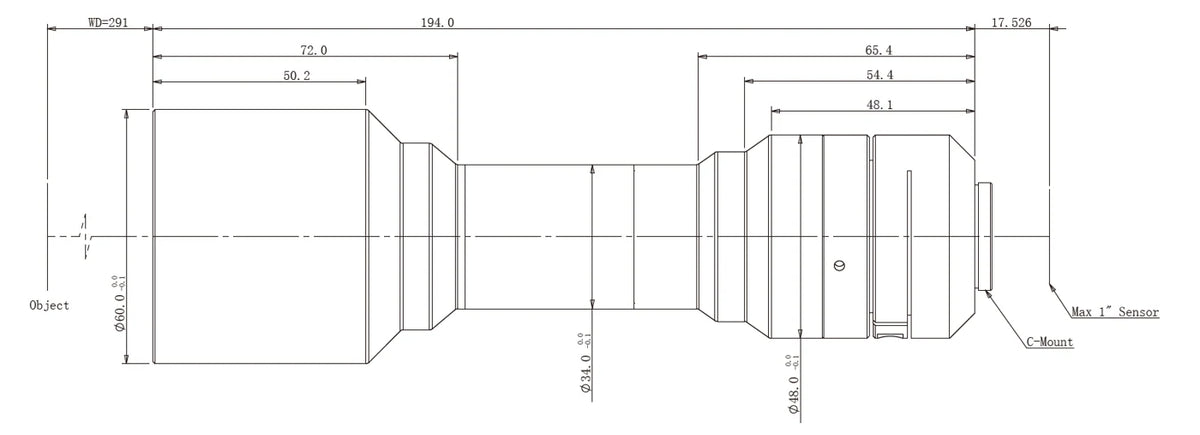

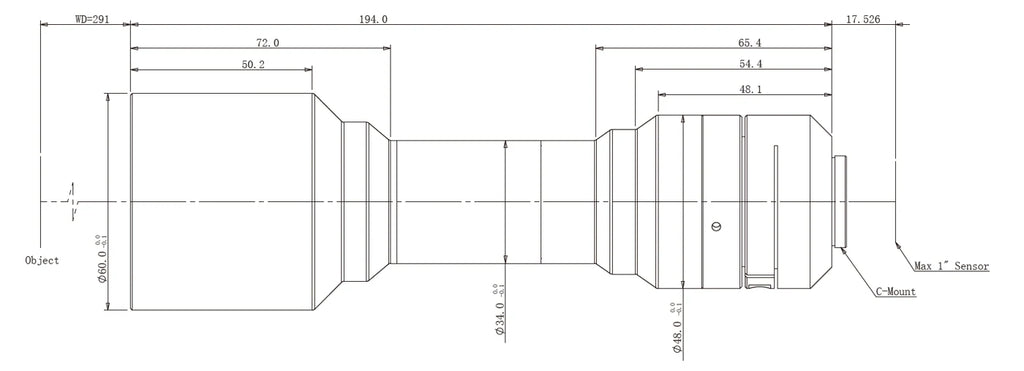

| Dimension | 194 mm × Φ60 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
